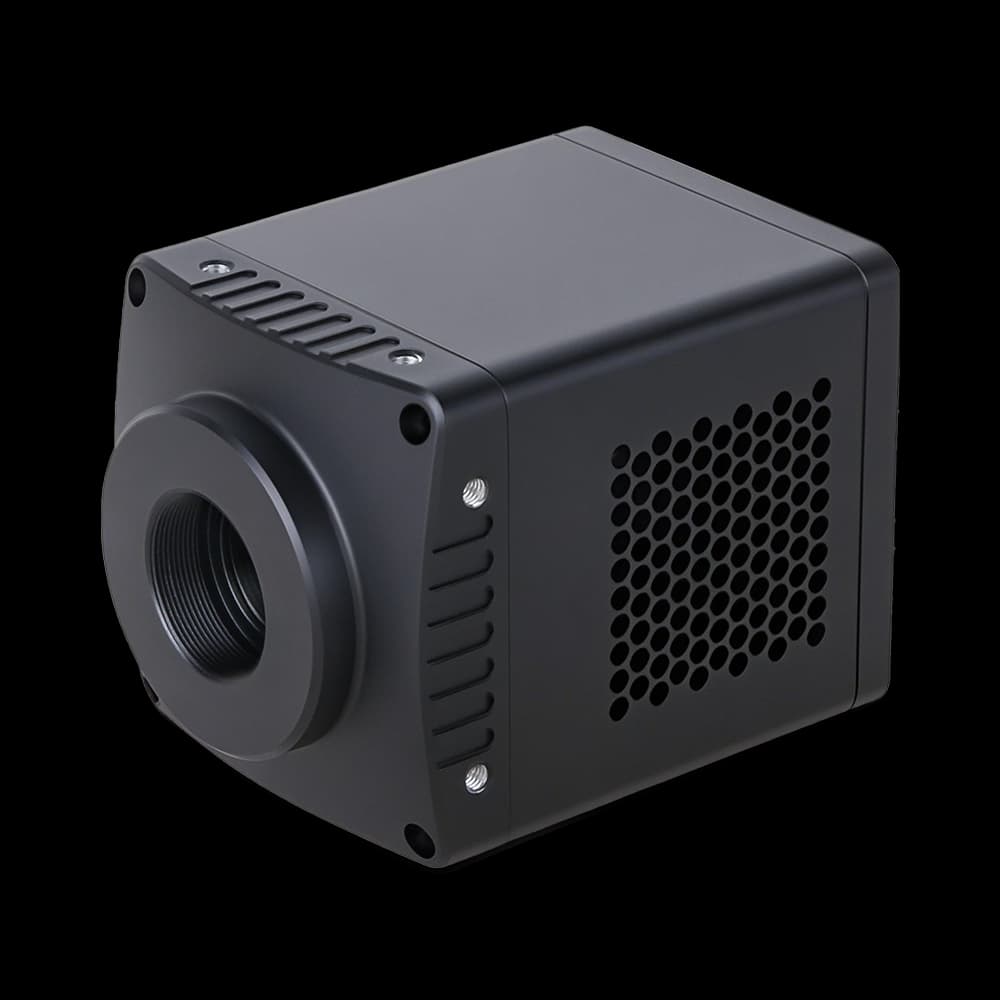

Short-Wave Infrared Camera
SWIR331KMA-CL500
SWIR331KMA-CL500 Short-Wave Infrared Camera with China-made 640×512 (InGaAs CMOS) sensor, 0.33 MP (640×512) for professional imaging.
- Sensor
- China-made 640×512 (InGaAs CMOS)
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 517 fps @ 640×512
- Interface
- CameraLink Full
Specifications
SWIR331KMA-CL500
25 specification rows
Specifications
| Model | SWIR331KMA-CL500 |
|---|---|
| Sensor | China-made 640×512 (InGaAs CMOS) |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 1/1.3" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |

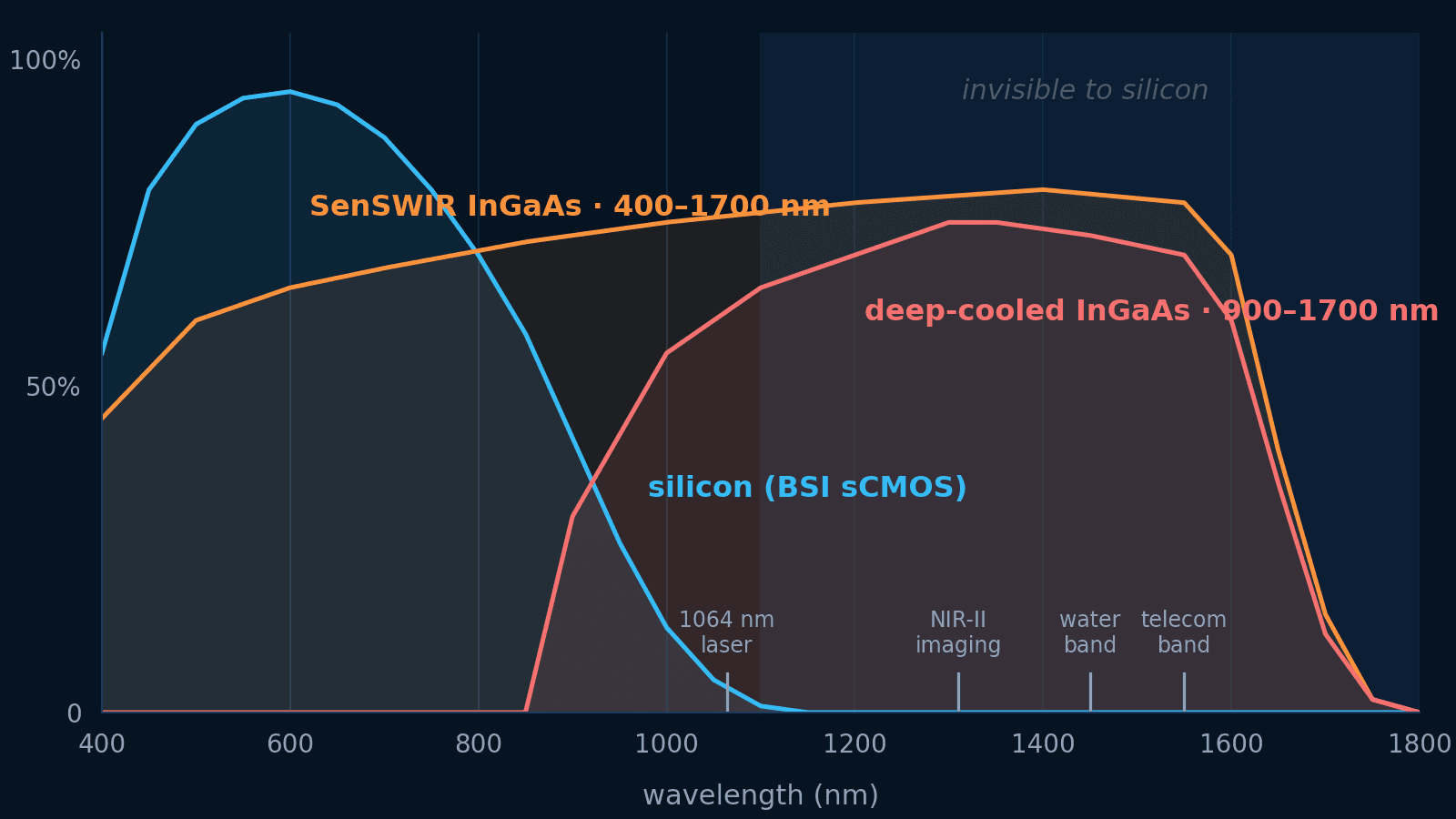

| Spectral Response Range | 900–1700 nm |
Performance Specifications
| Frame Rate | 517 fps @ 640×512 |
|---|---|
| Bit Depth | 12/14-bit |
| Dynamic Range | 69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG) |
| Sensitivity | Available on request |
Interface Specifications
| GPIO | 1 optically isolated input, 1 optically isolated output |
|---|---|
| Lens Mount | C-mount |
| Data Interface | CameraLink Full |
| Power Supply | DC 12 V power supply |
Physical Specifications
| Dimensions | 68 mm × 68 mm × 90.3 mm |
|---|---|
| Weight | 485 g |
Environmental Specifications
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Additional Specifications
| Operating System | SDK development package and CLView software based on Delsa frame grabber |
|---|---|
| Certifications | CE, FCC |
