Short-Wave Infrared Camera

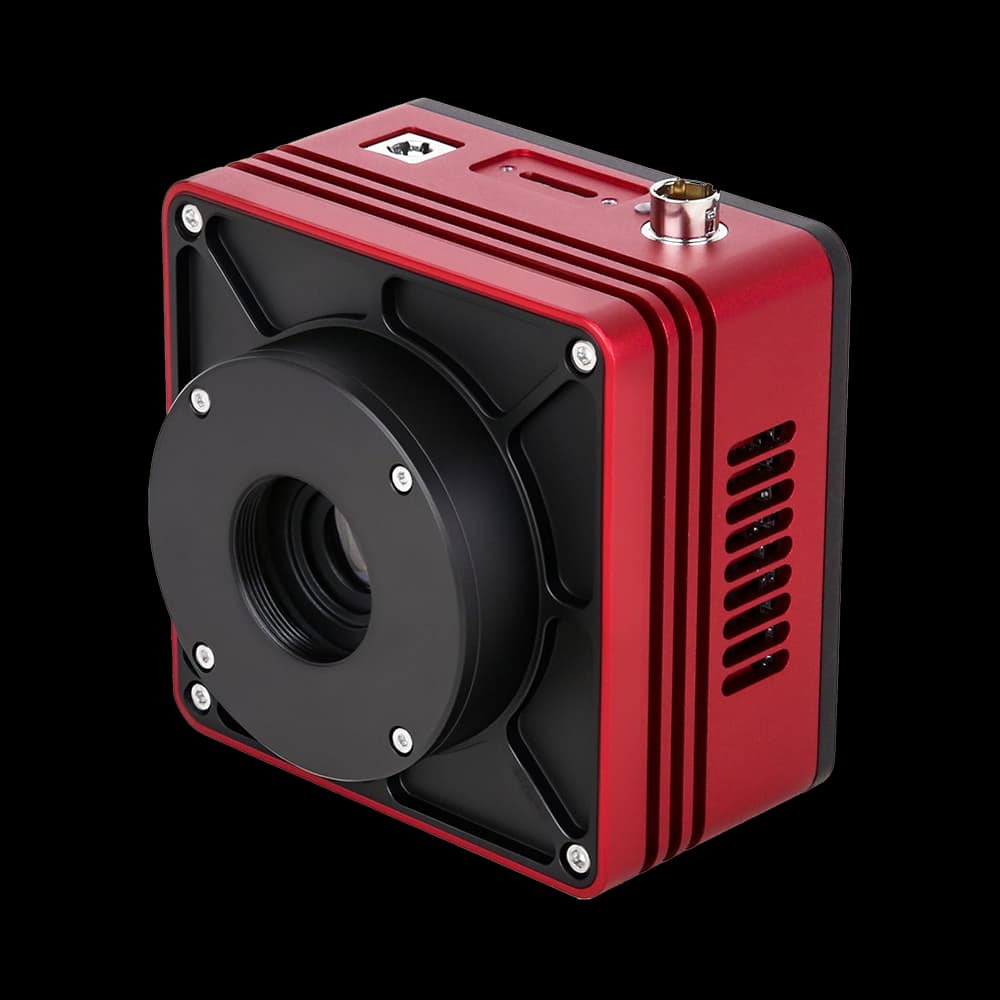

SWIR330KMB-G Short-Wave Infrared Camera with Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) for professional imaging.
Application context
SWIR330KMB-G: The Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, and 5.0 µm × 5.0 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR330KMB-G: The Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, and 5.0 µm × 5.0 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The SWIR330KMB-G is a swir camera in the Sony 991 series, built around a Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, 5.0 µm × 5.0 µm pixels, frame rates up to 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256, a GigE interface. It suits short-wave infrared camera where reliable imaging performance and interface compatibility matter.
| Model | SWIR330KMB-G |
|---|---|
| Sensor | Sony IMX991-AABJ-C (InGaAs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 3.20 mm × 2.56 mm |
| Sensor Diagonal | 1/4" (4.10 mm) |
| Pixel Size | 5.0 µm × 5.0 µm |
| Spectral Response Range | 400–1700 nm |
| Frame Rate | 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 |
|---|---|
| Bit Depth | 8/12-bit |
| Dynamic Range | 59.6 dB |
| Sensitivity | 121 mV |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
|---|---|
| Lens Mount | C-mount |
| Data Interface | GigE |
| Power Supply | 12V power adapter |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
|---|---|
| Weight | <390 g |
| Operating Temperature | 20 °C ~ +60 °C |
|---|---|
| Operating Humidity | 20%~80% (non-condensing) |
| Storage Temperature | 40 °C ~ +85 °C |
| Storage Humidity | 20%~80% (non-condensing) |
| Operating System | Win32/WinRT/Linux/macOS/Android |
|---|---|
| Certifications | CE, FCC |
System integration
Use these checks to connect SWIR330KMB-G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX991-AABJ-C (InGaAs) · Resolution: 0.33 MP (640×512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 · Interface: GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 59.6 dB. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR330KMB-G with the closest available models in the Sony 991 family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR330KMB-G (current) | SWIR330KMB | SWIR330KMB-GMV |
|---|---|---|---|
| Sensor | Sony IMX991-AABJ-C (InGaAs) | Sony IMX991-AABJ-C (InGaAs) | Sony IMX991-AABJ-C (InGaAs) |
| Resolution | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Sensor size | 3.20 mm × 2.56 mm | 3.20 mm × 2.56 mm | 3.20 mm × 2.56 mm |
| Pixel size / frame rate | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm |
The IMX991 appears in 9 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
