Monochrome · Short-Wave Infrared Camera

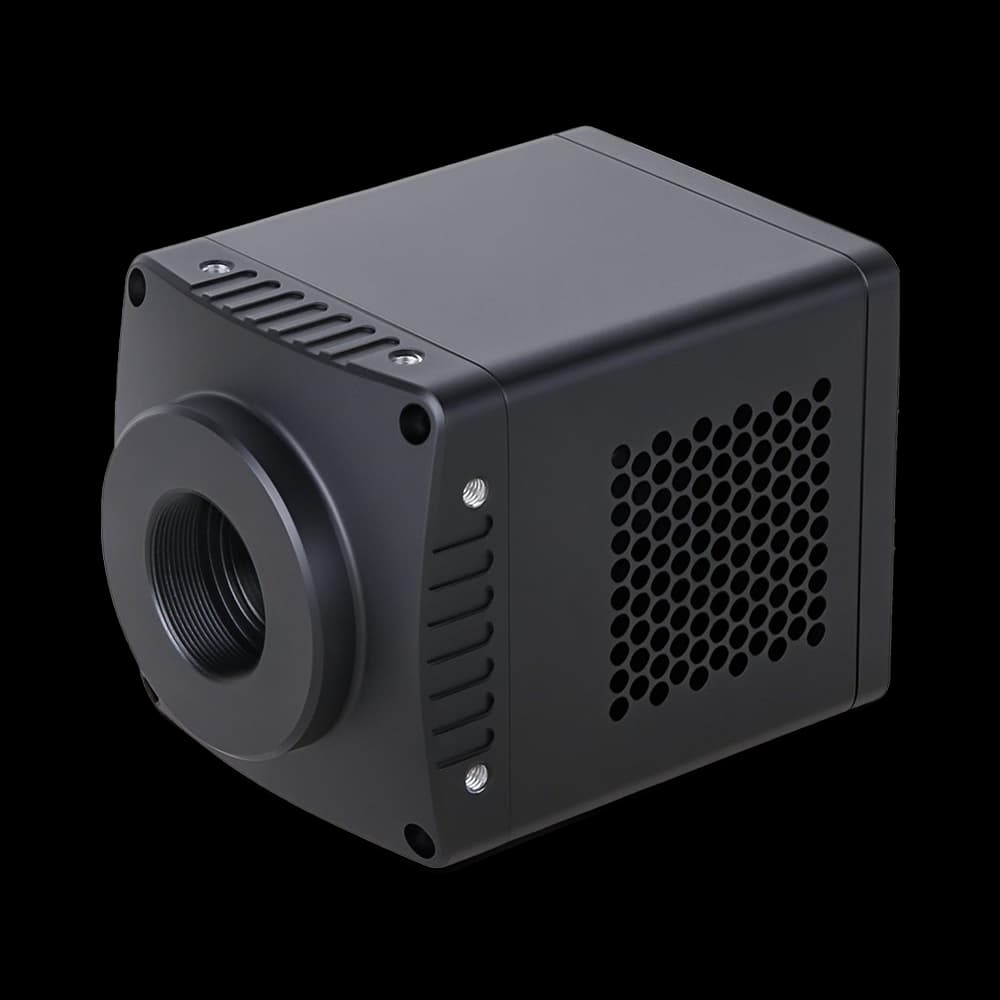

SWIR1303KMB-10G
- Sensor
- China-made 1280×1024 InGaAs
- Resolution
- 1.3 MP (1280×1024)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 100 fps @ 1280×1024
- Interface
- 10GigE
Complete Specifications
Sensor & Imaging
| Sensor | China-made 1280×1024 InGaAs |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280×1024) |
| Sensor Size | 19.20 mm × 15.36 mm |
| Sensor Diagonal | 1.5" (24.60 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 900–1700 nm |
Performance
| Frame Rate | 100 fps @ 1280×1024 |
|---|---|
| Bit Depth | 8/14-bit |
| Dynamic Range | 71.5 dB (LG); 65.7 dB (MG); 54.4 dB (HG) |
| Sensitivity | Available on request |
Interface & Connectivity
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
|---|---|
| Data Interface | 10GigE |
| Interface | 10GigE |
Cooling & Mechanical
| Lens Mount | M42 |
|---|---|
| Power Supply | DC 12 V |
| Dimensions | 68 mm × 68 mm × 90 mm |
| Weight | Available on request |
| Operating Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Published Specifications
| Model | SWIR1303KMB-10G |
|---|---|
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certifications | CE, FCC |
