Short-Wave Infrared Camera

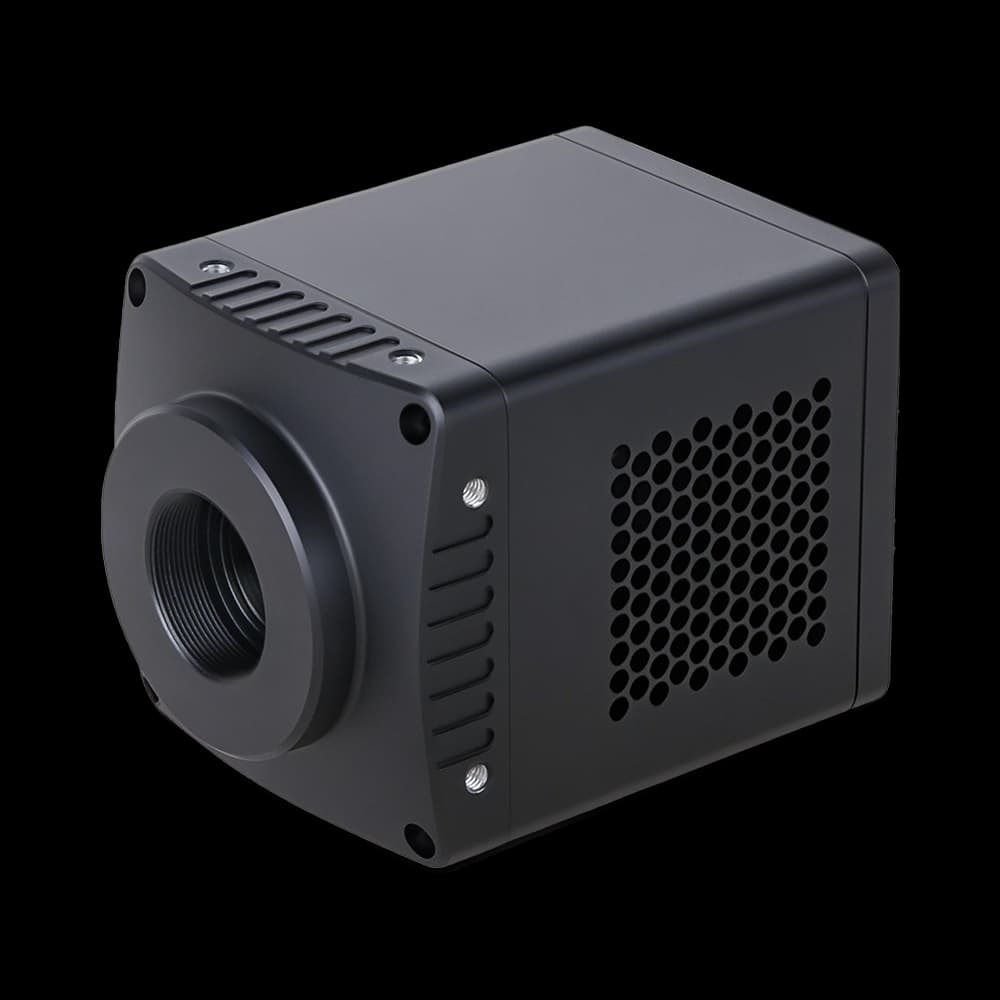

SWIR1302KMB-10G Short-Wave Infrared Camera with China-made 1280×1024 (InGaAs CMOS) sensor, 1.3 MP (1280×1024) for professional imaging.
Application context
SWIR1302KMB-10G: The China-made 1280×1024 (InGaAs CMOS) sensor, 1.3 MP (1280×1024) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 200 fps at 1280×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR1302KMB-10G: The China-made 1280×1024 (InGaAs CMOS) sensor, 1.3 MP (1280×1024) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 200 fps at 1280×1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The SWIR1302KMB-10G is a swir camera in the 900 1700 13mp series, built around a China-made 1280×1024 (InGaAs CMOS) sensor, 1.3 MP (1280×1024) resolution, 15 µm × 15 µm pixels, frame rates up to 200 fps at 1280×1024, a 10GigE interface. It suits short-wave infrared camera where reliable imaging performance and interface compatibility matter.
| Model | SWIR1302KMB-10G |
|---|---|
| Sensor | China-made 1280×1024 (InGaAs CMOS) |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280×1024) |
| Sensor Size | 19.2 mm × 15.36 mm |
| Sensor Diagonal | 4/3" (24.59 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 900–1700 nm |
| Frame Rate | 200 fps at 1280×1024 |
|---|---|
| Bit Depth | 14-bit |
| Dynamic Range | 69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG) |
| Sensitivity | Available on request |
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
|---|---|
| Lens Mount | M42 |
| Data Interface | 10GigE |
| Power Supply | DC 12 V |
| Dimensions | 68 mm × 68 mm × 89.8 mm |
|---|---|
| Weight | 485 g |
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
| Operating System | Complete SDK development package/ToupView |
|---|---|
| Certifications | CE, FCC |
System integration
Use these checks to connect SWIR1302KMB-10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M42. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: China-made 1280×1024 (InGaAs CMOS) · Resolution: 1.3 MP (1280×1024). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 200 fps at 1280×1024 · Interface: 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR1302KMB-10G with the closest available models in the 900 1700 13mp family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR1302KMB-10G (current) | SWIR1302KMA-CL200 | SWIR1302KMB-CL200 |
|---|---|---|---|
| Sensor | China-made 1280×1024 (InGaAs CMOS) | China-made 1280×1024 (InGaAs CMOS) | China-made 1280×1024 (InGaAs CMOS) |
| Resolution | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) |
| Sensor size | 19.2 mm × 15.36 mm | 19.2 mm × 15.36 mm | 19.2 mm × 15.36 mm |
| Pixel size / frame rate | 15 µm × 15 µm | 15 µm × 15 µm | 15 µm × 15 µm |
Compare the SWIR1302KMB-10G with other 900 1700 13mp models and swir cameras in the range.
