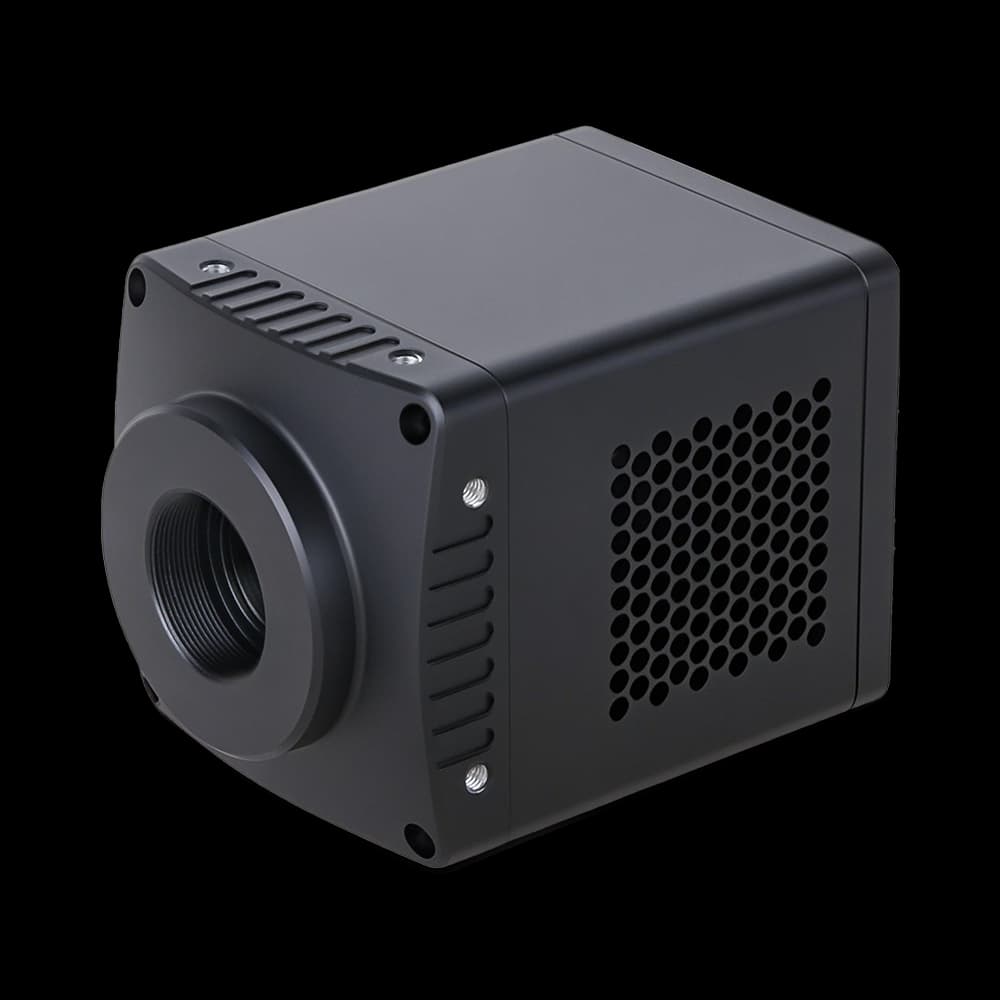

Monochrome · Short-Wave Infrared Camera

SWIR1302KMA-CL200

Sensor: China-made 1280×1024 (InGaAs CMOS)
Resolution: 1.3 MP (1280×1024)
Pixel Size: 15 µm × 15 µm
Frame Rate: 200 fps at 1280×1024
Interface: CameraLink Full

Complete specifications Back to SWIR Cameras

SWIR1302KMA-CL200

Complete Specifications

Sensor & Imaging

Sensor & Imaging
Sensor	China-made 1280×1024 (InGaAs CMOS)
Shutter Type	Global Shutter
Color Type	Monochrome
Resolution	1.3 MP (1280×1024)
Sensor Size	19.2 mm × 15.36 mm
Sensor Diagonal	4/3" (24.59 mm)
Pixel Size	15 µm × 15 µm
Spectral Response Range	900–1700 nm

Performance

Performance
Frame Rate	200 fps at 1280×1024
Bit Depth	14-bit
Dynamic Range	69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
Sensitivity	Available on request

Interface & Connectivity

Interface & Connectivity
GPIO	1 optically isolated input, 1 optically isolated output
Data Interface	CameraLink Full
Interface	CameraLink Full

Cooling & Mechanical

Cooling & Mechanical
Lens Mount	M42
Power Supply	DC 12 V
Dimensions	68 mm × 68 mm × 89.8 mm
Weight	485 g
Operating Temperature	30 °C to +60 °C
Operating Humidity	20% to 80% (non-condensing)
Storage Temperature	40 °C to +85 °C
Storage Humidity	20% to 80% (non-condensing)

Other Published Specifications

Other Published Specifications
Model	SWIR1302KMA-CL200
Operating System	SDK development package and CLView software based on Dalsa frame grabber
Certifications	CE, FCC

Technical Files & Images

Datasheet (PDF) (PDF)

Selection parameter	SWIR1302KMA-CL200 (current)	SWIR1302KMB-10GSame 900 1700 13mp series	SWIR1302KMB-CL200Same 900 1700 13mp series	SWIR1302KMB-CXPSame 900 1700 13mp series
Sensor	China-made 1280×1024 (InGaAs CMOS)	China-made 1280×1024 (InGaAs CMOS)	China-made 1280×1024 (InGaAs CMOS)	China-made 1280×1024 (InGaAs CMOS)
Image type	Monochrome	Monochrome	Monochrome	Monochrome
Resolution	1.3 MP (1280×1024)	1.3 MP (1280×1024)	1.3 MP (1280×1024)	1.3 MP (1280×1024)
Pixel size	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm	15 µm × 15 µm
Frame / line rate	200 fps at 1280×1024	200 fps at 1280×1024	200 fps at 1280×1024	100 fps @ 1280×1024
Interface	CameraLink Full	10GigE	CameraLink Full	CoaXPress 2.0 (CXP-10 x 1)
Cooling / shutter	Global Shutter	Global Shutter	Global Shutter	Global Shutter
