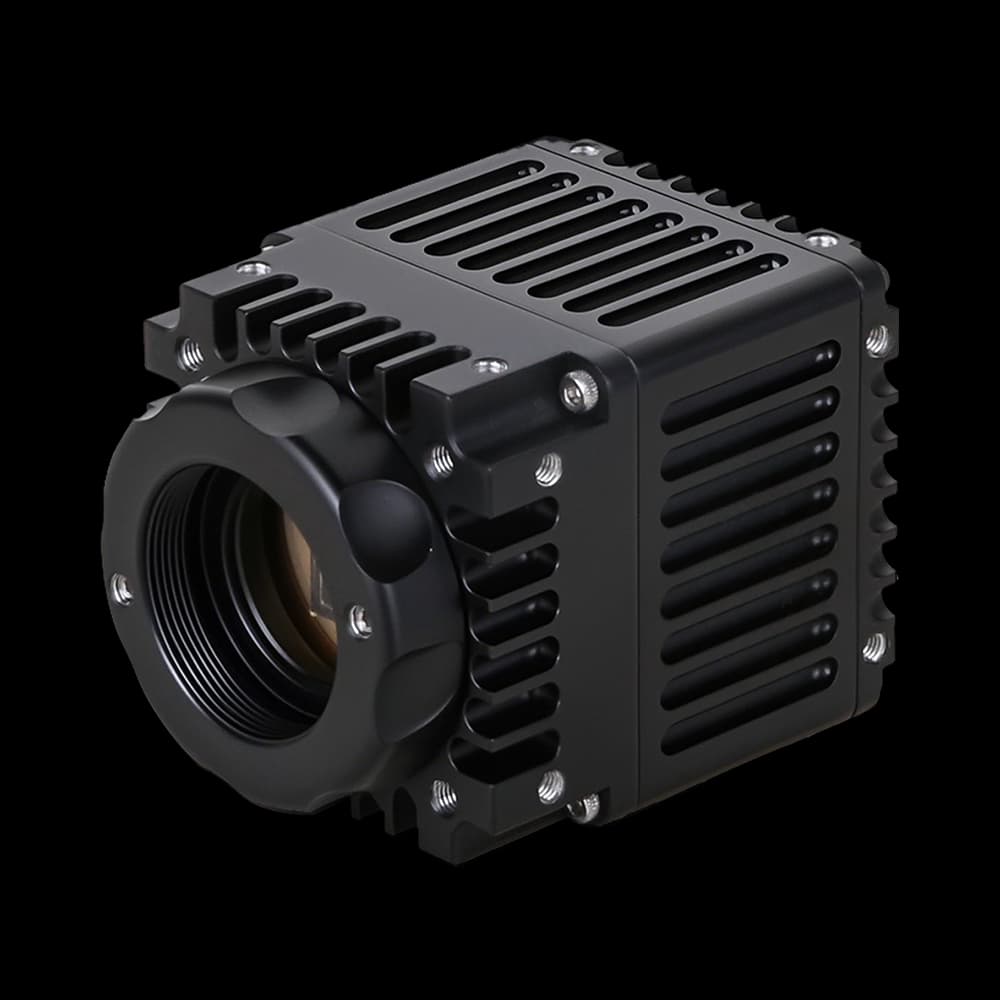

Monochrome · SWIR Camera
SWIR331KMB-GMV100
- Sensor
- China-made 640×512 (InGaAs CMOS)
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 100 fps @ 640×512
- Interface
- GigE
Complete Specifications
Sensor & Imaging
| Sensor | China-made 640×512 (InGaAs CMOS) |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 3/4" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 900–1700 nm |
Performance
| Frame Rate | 100 fps @ 640×512 |
|---|---|
| Bit Depth | 8/14-bit |
| Dynamic Range | 70.59 dB (LG); 67.96 dB (MG); 47.98 dB (HG) |
Interface & Connectivity
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
|---|---|
| Data Interface | GigE |
| Interface | GigE |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | 12 V power adapter |
| Dimensions | 45 mm × 45 mm × 64.5 mm |
| Operating Temperature | -30 °C to +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | -40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Published Specifications
| Model | SWIR331KMB-GMV100 |
|---|---|
| Operating System | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certifications | CE, FCC |
Technical Files & Images

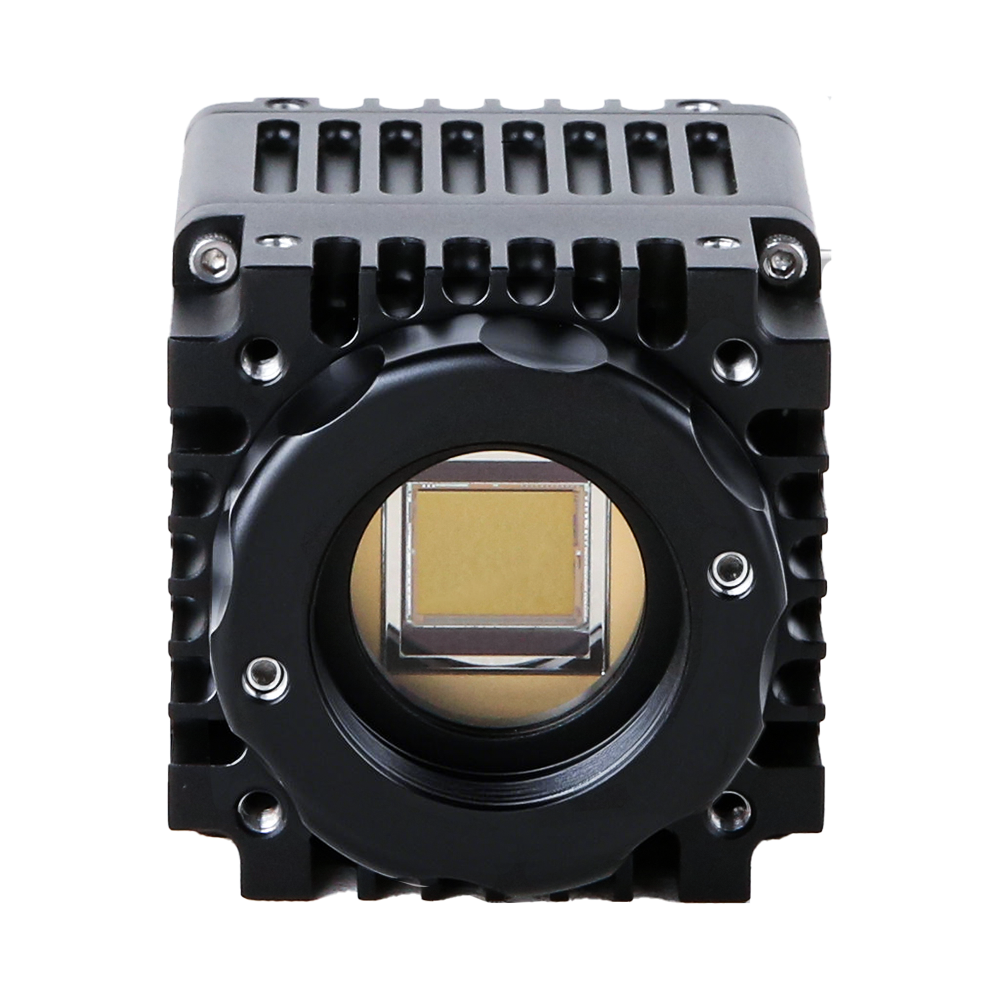

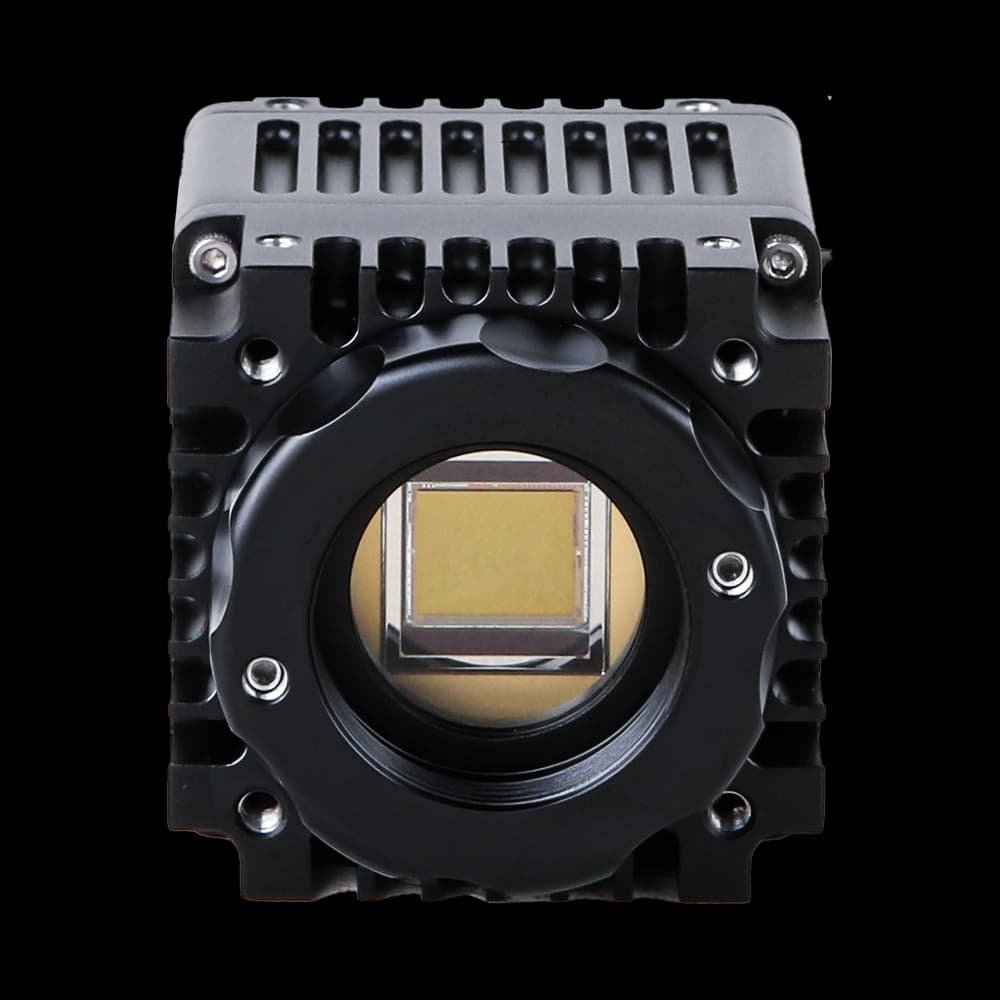

Technical images (1)
Related Products
| Selection parameter | SWIR331KMB-GMV100 (current) | SWIR331KMA-CL1000Same 900-1700-VGA series | SWIR331KMA-CL500Same 900-1700-VGA series | SWIR331KMA-CL700Same 900-1700-VGA series |
|---|---|---|---|---|
| Sensor | China-made 640×512 (InGaAs CMOS) | China-made 640×512 (InGaAs CMOS) | China-made 640×512 (InGaAs CMOS) | China-made 640×512 (InGaAs CMOS) |
| Image type | Monochrome | Monochrome | Monochrome | Monochrome |
| Resolution | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Pixel size | 15 µm × 15 µm | 15 µm × 15 µm | 15 µm × 15 µm | 15 µm × 15 µm |
| Frame / line rate | 100 fps @ 640×512 | 1000 fps @ 640×512 | 517 fps @ 640×512 | 724 fps @ 640×512 |
| Interface | GigE | CameraLink Full | CameraLink Full | CameraLink Full |
| Cooling / shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter |
