Short-Wave Infrared Cameras

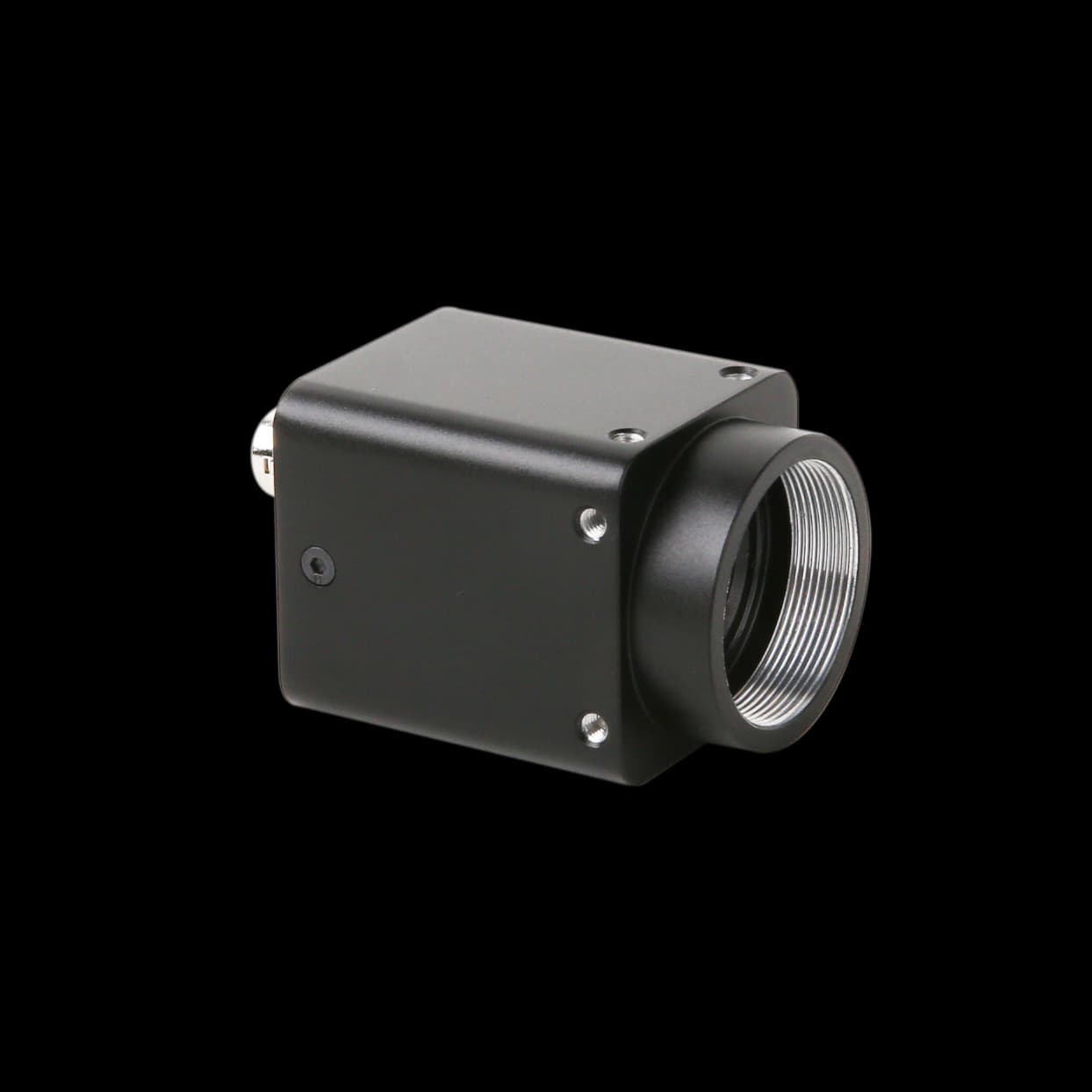

SWIR335KMB-UMV Short-Wave Infrared Cameras with China-made 640×512 (CQDs) sensor, 0.33 MP (640×512) for professional imaging.
Application context
SWIR335KMB-UMV: The China-made 640×512 (CQDs) sensor, 0.33 MP (640×512) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 200 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR335KMB-UMV: The China-made 640×512 (CQDs) sensor, 0.33 MP (640×512) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 200 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The SWIR335KMB-UMV is a swir camera in the 300 1700 UMV series, built around a China-made 640×512 (CQDs) sensor, 0.33 MP (640×512) resolution, 15 µm × 15 µm pixels, frame rates up to 200 fps @ 640×512, a USB3 interface. It suits short-wave infrared cameras where reliable imaging performance and interface compatibility matter.
| Model | SWIR335KMB-UMV |
|---|---|
| Sensor | China-made 640×512 (CQDs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 1/1.3" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 400–1700 nm |
| Frame Rate | 200 fps @ 640×512 |
|---|---|
| Bit Depth | 12/14-bit |
| Dynamic Range | Available on request |
| Sensitivity | 40% |
| GPIO | 1 opto-isolated input, 1 opto-isolated output |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | DC 12 V power supply |
| Dimensions | 45 mm × 45 mm × 50 mm |
|---|---|
| Weight | Available on request |
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
| Operating System | Win32/WinRT/Linux/macOS/Android |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect SWIR335KMB-UMV to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: China-made 640×512 (CQDs) · Resolution: 0.33 MP (640×512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 200 fps @ 640×512 · Interface: USB3. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR335KMB-UMV with the closest available models in the 300 1700 UMV family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR335KMB-UMV (current) | SWIR336KMB-UMV |
|---|---|---|
| Sensor | China-made 640×512 (CQDs) | China-made 640×512 (CQDs) |
| Resolution | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Sensor size | 9.60 mm × 7.68 mm | 9.60 mm × 7.68 mm |
| Pixel size / frame rate | 15 µm × 15 µm | 15 µm × 15 µm |
