Short-Wave Infrared Cameras

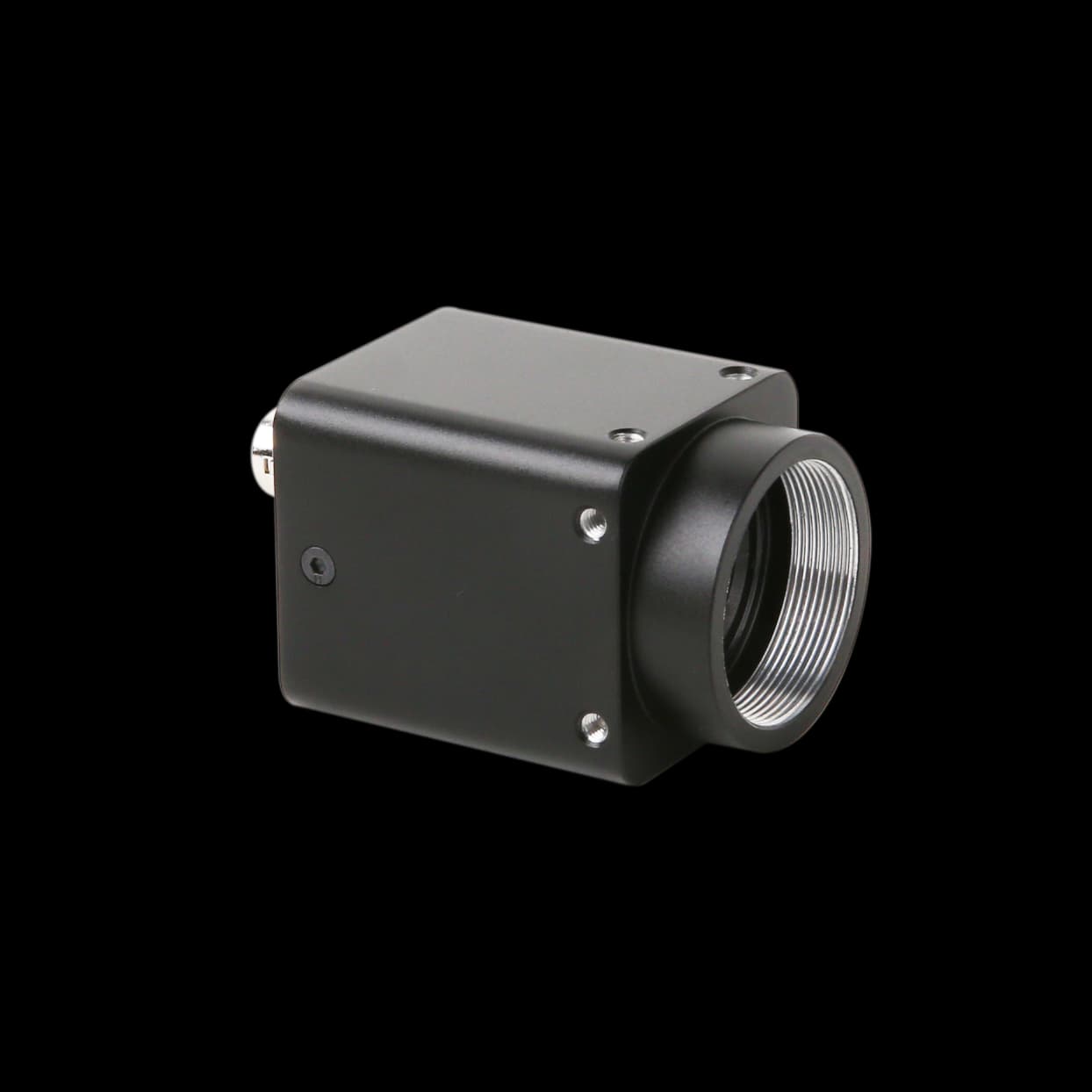

SWIR336KMB-UMV
SWIR336KMB-UMV Short-Wave Infrared Cameras with China-made 640×512 (CQDs) sensor, 0.33 MP (640×512) for professional imaging.
- Sensor
- China-made 640×512 (CQDs)
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 400 fps @ 640×512
- Interface
- USB3
Specifications
SWIR336KMB-UMV
25 specification rows
Specifications
| Model | SWIR336KMB-UMV |
|---|---|
| Sensor | China-made 640×512 (CQDs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 1/1.3" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 300–1400 nm |
Performance Parameters
| Frame Rate | 400 fps @ 640×512 |
|---|---|
| Bit Depth | 12/14-bit |
| Dynamic Range | 66 dB |
| Sensitivity | 40% |
Interface Parameters
| GPIO | 1 opto-isolated input, 1 opto-isolated output |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | DC 12 V power supply |
Physical Parameters
| Dimensions | 45 mm × 45 mm × 50 mm |
|---|---|
| Weight | Available on request |
Environmental Parameters
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Parameters
| Operating System | Win32/WinRT/Linux/macOS/Android |
|---|---|
| Certification | CE, FCC |
