Precisometer

Short-Wave Infrared Camera

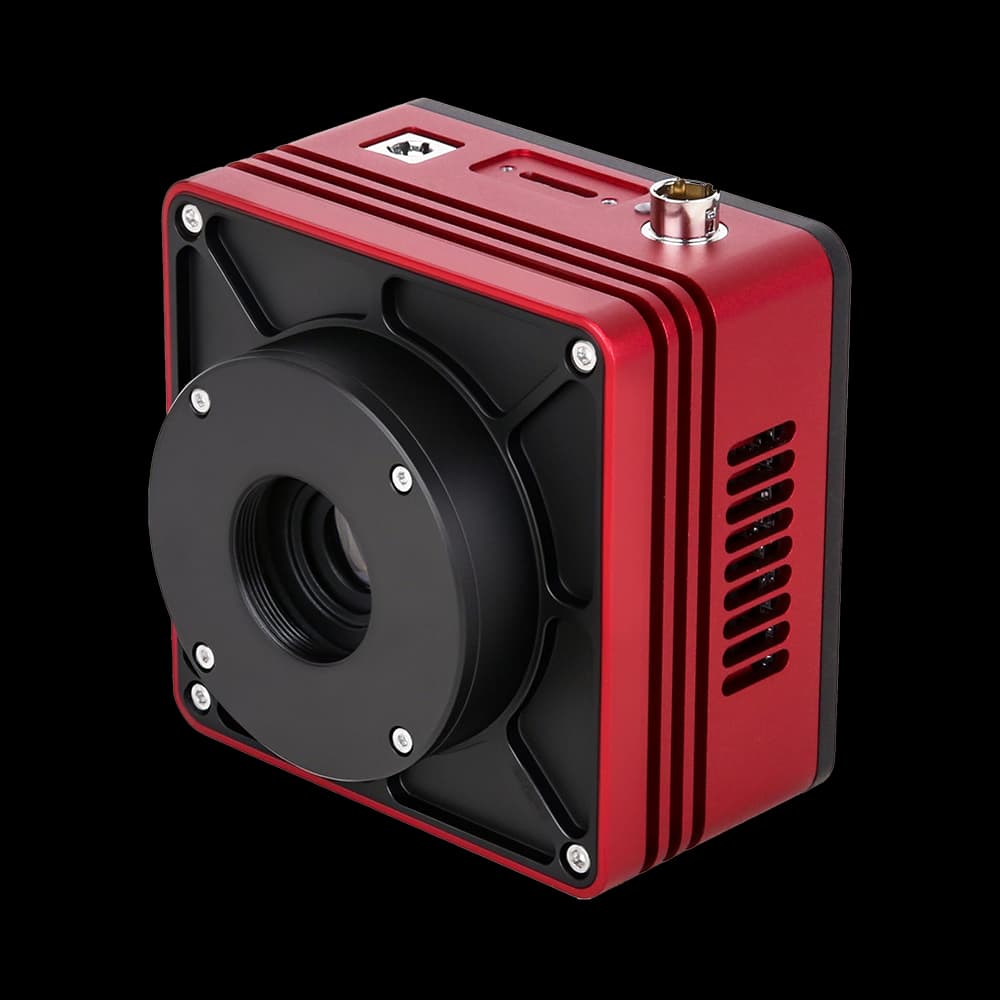

SWIR5000KMB-10G

SWIR5000KMB-10G Short-Wave Infrared Camera with Sony IMX992-AABJ-C (InGaAs) sensor, 5.0 MP (2560×2048) for professional imaging.

Sensor
Sony IMX992-AABJ-C (InGaAs)
Resolution
5.0 MP (2560×2048)
Pixel Size
3.45 µm × 3.45 µm
Frame Rate
8 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 10 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 12 Bit: 82.7 fps @ 2560×2048, 158.6 fps @ 1280×1024
Interface
10GigE
Datasheet (PDF)Back to SWIR Cameras
SWIR5000KMB-10G

Specifications

SWIR5000KMB-10G

25 specification rows

The SWIR5000KMB-10G is a swir camera in the Sony 992 series, built around a Sony IMX992-AABJ-C (InGaAs) sensor, 5.0 MP (2560×2048) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 8 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 10 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 12 Bit: 82.7 fps @ 2560×2048, 158.6 fps @ 1280×1024, a 10GigE interface. It suits short-wave infrared camera where reliable imaging performance and interface compatibility matter.

Specifications

ModelSWIR5000KMB-10G
SensorSony IMX992-AABJ-C (InGaAs)
Shutter TypeGlobal shutter
Color TypeMonochrome
Resolution5.0 MP (2560×2048)
Sensor Size8.94 mm × 7.09 mm
Sensor Diagonal1/1.4" (11.41 mm)
Pixel Size3.45 µm × 3.45 µm
Spectral Response Range400–1700 nm

Performance Specifications

Frame Rate8 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 10 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 12 Bit: 82.7 fps @ 2560×2048, 158.6 fps @ 1280×1024
Bit Depth8/10/12-bit
Dynamic Range51.36 dB (HCG); 51.47 dB (LCG)
SensitivityAvailable on request

Interface Specifications

GPIO1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O
Lens MountC-mount
Data Interface10GigE
Power Supply12V power adapter

Physical Specifications

Dimensions80 mm × 80 mm × 45.5 mm
Weight<390 g

Environmental Specifications

Operating Temperature20 °C ~ +60 °C
Operating Humidity20%~80% (non-condensing)
Storage Temperature40 °C ~ +85 °C
Storage Humidity20%~80% (non-condensing)

Additional Specifications

Operating SystemWin32/WinRT/Linux/macOS/Android
CertificationsCE, FCC

System integration

Integration and compatibility

Use these checks to connect SWIR5000KMB-10G to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.

Lens and microscope interface
Lens Mount: C-mount
Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor and sampling
Sensor: Sony IMX992-AABJ-C (InGaAs) · Resolution: 5.0 MP (2560×2048)
Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Interface and data rate
Frame Rate: 8 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 10 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 12 Bit: 82.7 fps @ 2560×2048, 158.6 fps @ 1280×1024 · Interface: 10GigE
Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Hardware synchronization
GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O
Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Cooling and noise floor
Dynamic Range: 51.36 dB (HCG); 51.47 dB (LCG)
Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.

Technical FAQ

Integration questions for SWIR5000KMB-10G

What lens mount is required for the SWIR5000KMB-10G?

Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.

What sensor and pixel pitch does the SWIR5000KMB-10G use?

Sensor: Sony IMX992-AABJ-C (InGaAs) · Resolution: 5.0 MP (2560×2048). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.

How does the SWIR5000KMB-10G connect to the acquisition computer?

Frame Rate: 8 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 10 Bit: 145 fps @ 2560×2048, 278 fps @ 1280×1024; 12 Bit: 82.7 fps @ 2560×2048, 158.6 fps @ 1280×1024 · Interface: 10GigE. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.

Does the SWIR5000KMB-10G support hardware triggering?

GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.

What is the noise performance of the SWIR5000KMB-10G?

Dynamic Range: 51.36 dB (HCG); 51.47 dB (LCG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.

Need help choosing?

Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.

Open camera finder

Model selection

Nearby series comparison

Compare SWIR5000KMB-10G with the closest available models in the Sony 992 family.

Selection parameterSWIR5000KMB-10G (current)SWIR5000KMBSWIR5000KMB-CXP
SensorSony IMX992-AABJ-C (InGaAs)Sony IMX992-AABJ-C (InGaAs)Sony IMX992-AABJ-C (InGaAs)
Resolution5.0 MP (2560×2048)5.0 MP (2560×2048)5.0 MP (2560×2048)
Sensor size8.94 mm × 7.09 mm8.94 mm × 7.09 mm8.94 mm × 7.09 mm
Pixel size / frame rate3.45 µm × 3.45 µm3.45 µm × 3.45 µm3.45 µm × 3.45 µm

Other cameras on the IMX992 sensor

The IMX992 appears in 10 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.

Compare all IMX992 cameras
