Monochrome · SWIR Camera

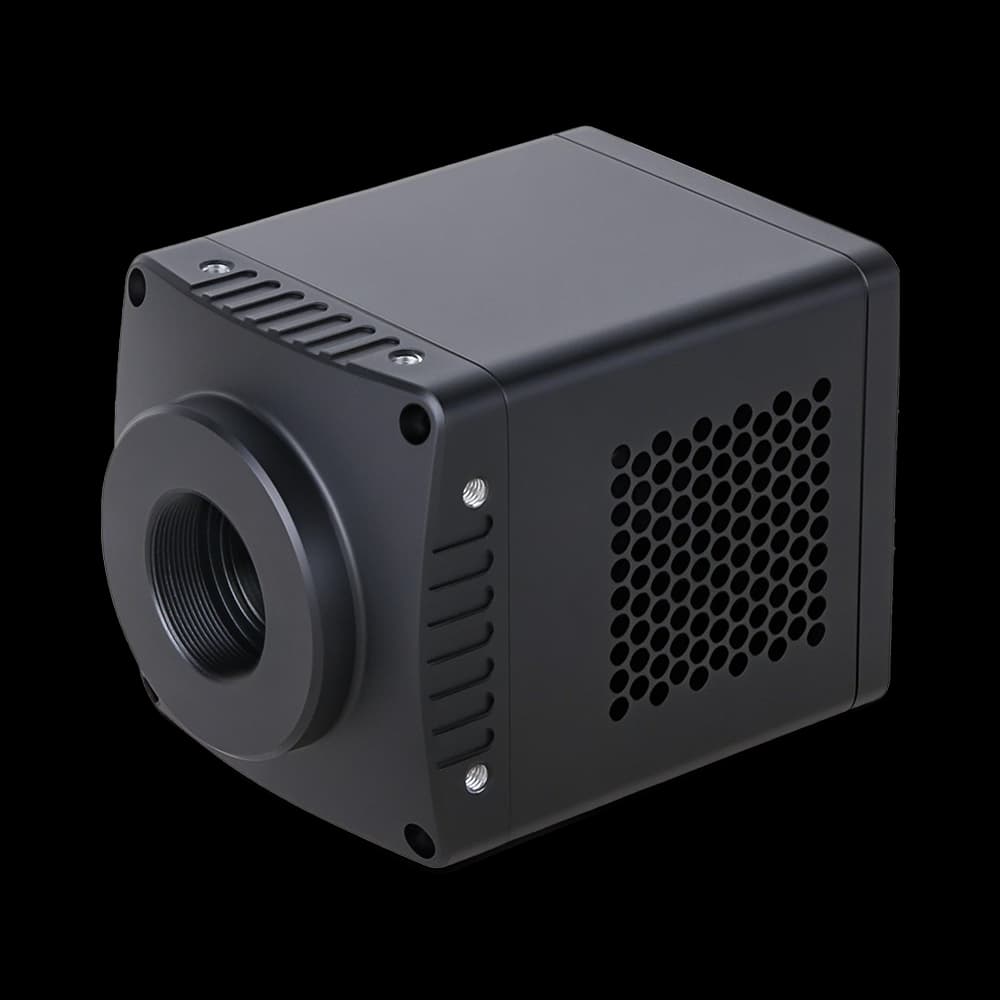

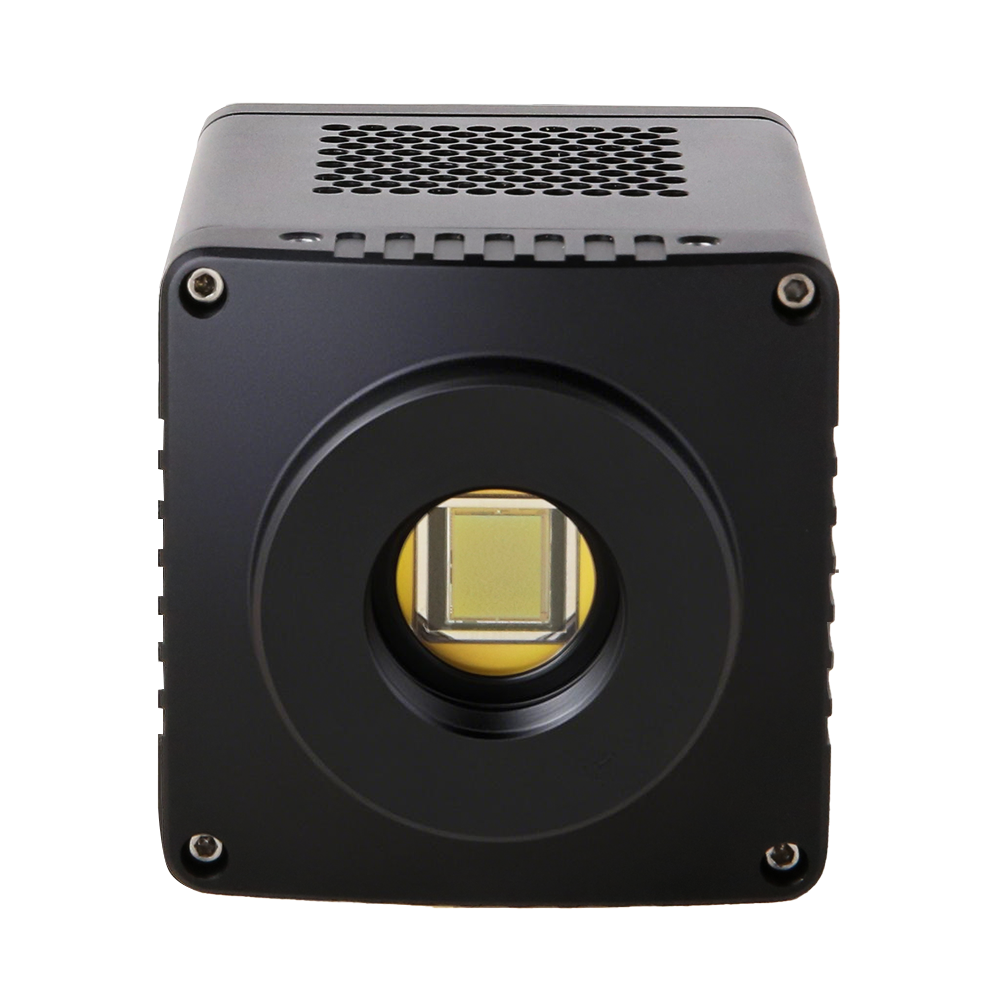

SWIR1302KMB-G
- Sensor
- China-made 1280×1024 (InGaAs CMOS)
- Resolution
- 1.3 MP (1280×1024)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 87 fps @ 1280×1024
- Interface
- GigE
- Cooling
- 40 °C below ambient temperature
Complete Specifications
Sensor & Imaging
| Sensor | China-made 1280×1024 (InGaAs CMOS) |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280×1024) |
| Sensor Size | 19.2 mm × 15.36 mm |
| Sensor Diagonal | 1.5" (24.59 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 900–1700 nm |
| Quantum Efficiency | ≥70% @ 1.55 µm |
| Data Format | Mono 8 / Mono 14 |
Performance
| Frame Rate | 87 fps @ 1280×1024 |
|---|---|
| Bit Depth | 8/14-bit |
| Dynamic Range | 69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG) (for reference only) |
| Sensitivity | Available on request |
| ADC | 14-bit |
| Memory | 512 MByte |
| Conversion Gain | 1 µV/e- (LG), 16 µV/e- (MG), 53.3 µV/e- (HG) |
| Readout Noise | 1.3 DN (LG), 2.7 DN (MG), 5.0 DN (HG) (for reference only) |
| Full Well Capacity | 1.9 Me- (LG), 118.75 ke- (MG), 33.75 ke- (HG) |
| Maximum SNR | 65.4 dB (LG), 48.5 dB (MG), 40.7 dB (HG) (for reference only) |
| Dark Current | 30 fA @ 0.1 V, 18 °C (for reference only) |
| Exposure Time | 16 µs ~ 5 s |
Interface & Connectivity
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
|---|---|
| Data Interface | GigE |
| Interface | GigE |
Cooling & Mechanical
| Cooling Capacity | 40 °C below ambient temperature |
|---|---|
| Power Consumption | 8.4 W (TEC OFF) / <16 W (TEC ON) |
| Lens Mount | Available on request |
| Power Supply | DC 12 V |
| Dimensions | 68 mm × 68 mm × 89.8 mm |
| Weight | Available on request |
| Operating Temperature | -30 °C to +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | -40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Published Specifications
| Model | SWIR1302KMB-G |
|---|---|
| Software | Complete SDK development package / imaging software |
| Operating System | Complete SDK development package / imaging software |
| Certifications | Available on request |
Technical Files & Images

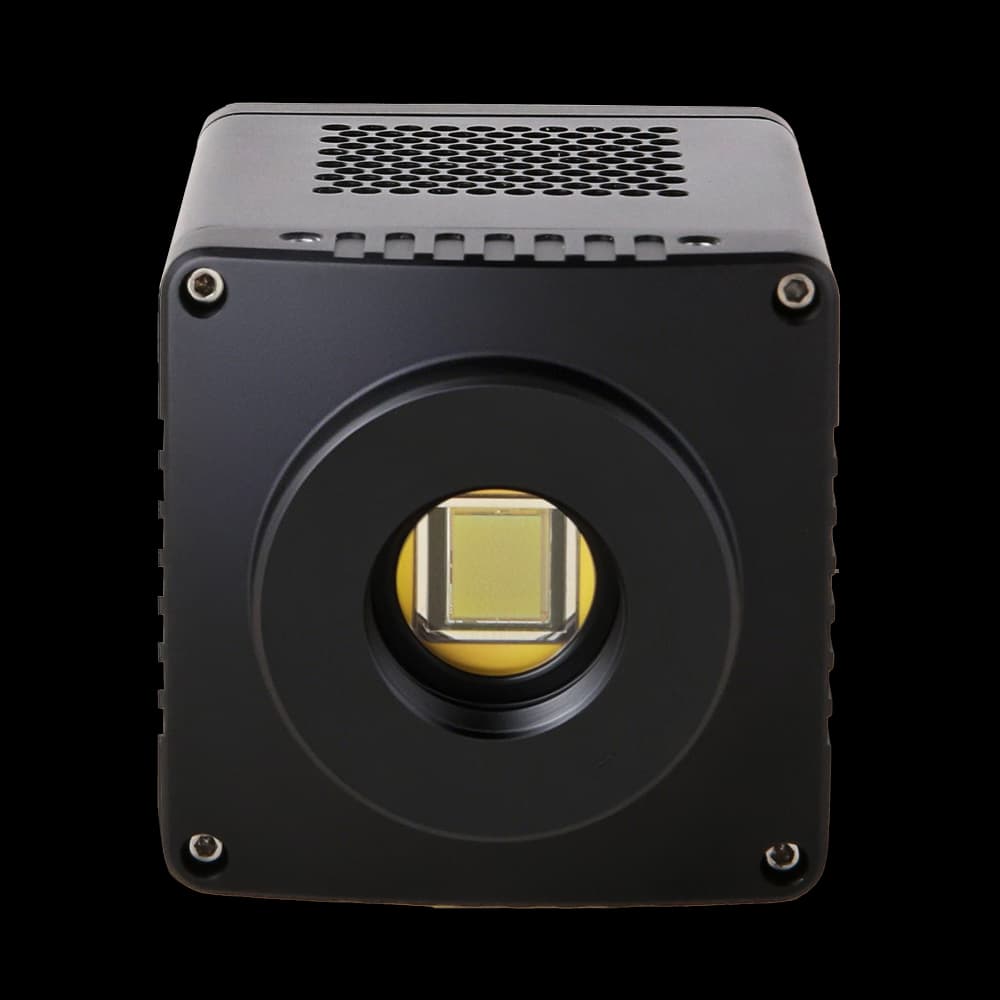

Technical images (1)
