Short-Wave Infrared (SWIR) Cameras

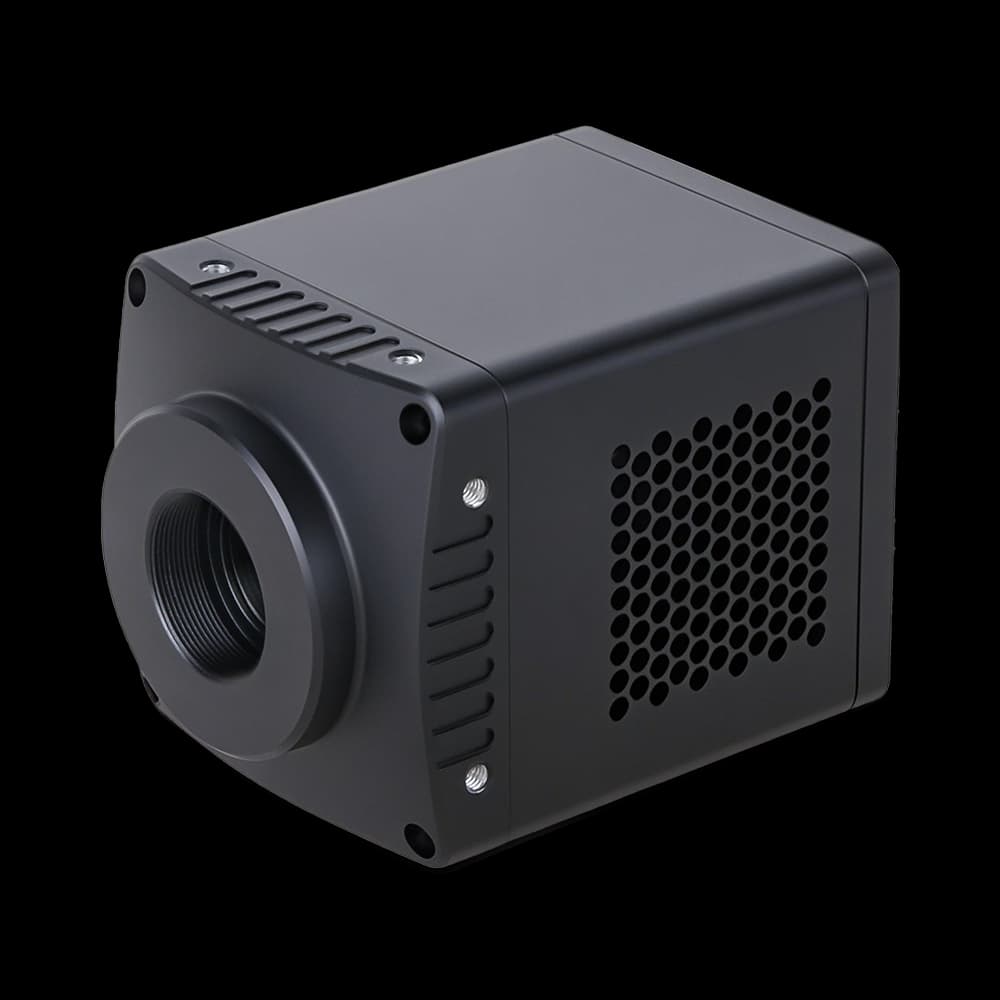

SWIR1302KMB-E0417-U200 Short-Wave Infrared (SWIR) Cameras with China-made 1280 × 1024 sensor sensor, 1.3 MP (1280 × 1024) for professional imaging.
Application context
SWIR1302KMB-E0417-U200: The China-made 1280 × 1024 sensor sensor, 1.3 MP (1280 × 1024) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 200 fps @ 1280 × 1024 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR1302KMB-E0417-U200: The China-made 1280 × 1024 sensor sensor, 1.3 MP (1280 × 1024) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 200 fps @ 1280 × 1024 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
38 specification rows
The SWIR1302KMB-E0417-U200 is a swir camera in the 400 2500 series, built around a China-made 1280 × 1024 sensor sensor, 1.3 MP (1280 × 1024) resolution, 15 µm × 15 µm pixels, frame rates up to 200 fps @ 1280 × 1024, a USB3 interface. It suits short-wave infrared (swir) cameras where reliable imaging performance and interface compatibility matter.
| Model | SWIR1302KMB-E0417-U200 |
|---|---|
| Sensor | China-made 1280 × 1024 sensor |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280 × 1024) |
| Sensor Size | 1.5" |
| Sensor Diagonal | 1.5" |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 400–1700 nm |
| Frame Rate | 200 fps @ 1280 × 1024 |
|---|---|
| Bit Depth | 14-bit |
| Dynamic Range | 70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG) (for reference only) |
| Sensitivity | Available on request |
| Sensor Type | InGaAs CMOS image sensor |
| ADC | 14-bit |
| Memory | 512 MByte |
| Quantum Efficiency | ≥70% @ 1.55 µm |
| Conversion Gain | 1 µV/e- (LG), 16 µV/e- (MG), 53.3 µV/e- (HG) |
| Readout Noise | 586.82 e- (LG), 35.05 e- (MG), 68.44 e- (HG) (for reference only) |
| Full Well Capacity | 1.9 Me- (LG), 118.75 Ke- (MG), 33.75 Ke- (HG) |
| Maximum SNR | 62.98 dB (LG), 49.43 dB (MG), 42.34 dB (HG) (for reference only) |
| Exposure Time Range | 16 µs ~ 1 s |
| Data Format | Mono 8 / Mono 14 / Packet12 |
| Cooling Capacity | 40 °C below ambient temperature |
| Power Consumption | Available on request |
| Software | Complete SDK development kit / ToupView |
| GPIO | 1 optocoupler-isolated input, 1 optocoupler-isolated output, 2 non-isolated I/O ports |
|---|---|
| Lens Mount | M42 |
| Data Interface | USB3 |
| Power Supply | DC 12 V power supply |
| Dimensions | 68 mm × 68 mm × 89.8 mm |
|---|---|
| Weight | 485 g |
| Operating Temperature | Working temperature: -30 °C to 60 °C |
|---|---|
| Operating Humidity | 20% to 80%, non-condensing |
| Storage Temperature | Storage temperature: -40 °C to 85 °C |
| Storage Humidity | 20% to 80%, non-condensing |
| Operating System Support | Available on request |
|---|---|
| Certification | Available on request |
System integration
Use these checks to connect SWIR1302KMB-E0417-U200 to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: M42. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: China-made 1280 × 1024 sensor · Resolution: 1.3 MP (1280 × 1024). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 200 fps @ 1280 × 1024 · Interface: USB3. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optocoupler-isolated input, 1 optocoupler-isolated output, 2 non-isolated I/O ports. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG) (for reference only) · Full Well Capacity: 1.9 Me- (LG), 118.75 Ke- (MG), 33.75 Ke- (HG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR1302KMB-E0417-U200 with the closest available models in the 400 2500 family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR1302KMB-E0417-U200 (current) | SWIR333KMB-E1019-U240 | SWIR333KMB-E1222-U270 |
|---|---|---|---|
| Sensor | China-made 1280 × 1024 sensor | China-made 640×512 (InGaAs) | China-made 640×512 (InGaAs) |
| Resolution | 1.3 MP (1280 × 1024) | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Sensor size | 1.5" | 9.60 mm × 7.68 mm | 9.60 mm × 7.68 mm |
| Pixel size / frame rate | 15 µm × 15 µm | 15 µm × 15 µm | 15 µm × 15 µm |
Compare the SWIR1302KMB-E0417-U200 with other 400 2500 models and swir cameras in the range.
Choosing a camera
How to tell whether this sensor is the right technology for your photon budget, and what to check before committing.
SWIR imagingSilicon cameras go blind at 1100 nm. Compare InGaAs sensor families, dark current, and cooling with an interactive QE and SNR lab — and find which regime your measurement is in.
Open guide
Semiconductor inspectionDesign a through-silicon inspection setup for wafers and ICs: choose transmission, reflection, or emission imaging; then match wavelength, NA, sampling, and camera.
Open guide
Scientific camerasWhich sensor technology your photon budget actually needs, why rolling and global shutter answer different questions, and how to check the data can leave the camera at all.
Open guide
