Short-Wave Infrared (SWIR) Cameras

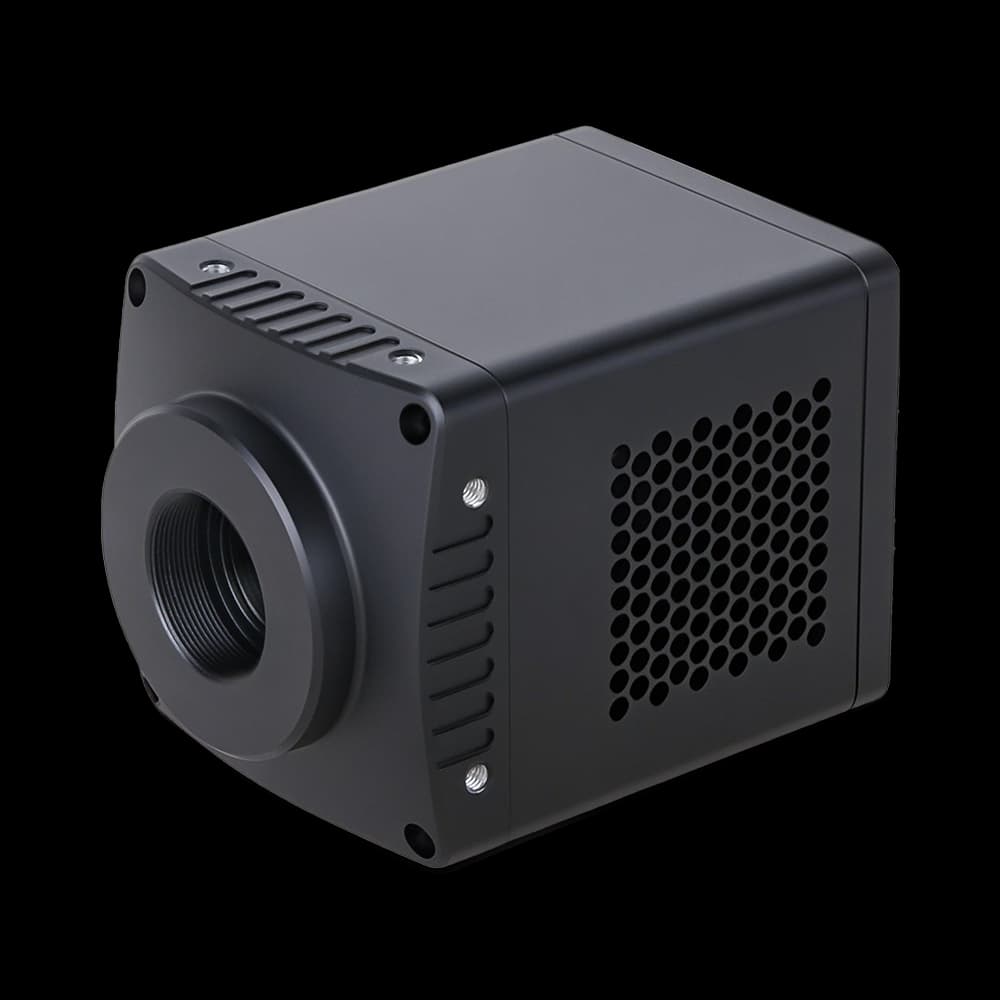

SWIR333KMB-E1019-U240 Short-Wave Infrared (SWIR) Cameras with China-made 640×512 (InGaAs) sensor, 0.33 MP (640×512) for professional imaging.
Application context
SWIR333KMB-E1019-U240: The China-made 640×512 (InGaAs) sensor, 0.33 MP (640×512) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 8/12/14 Bit: 240 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR333KMB-E1019-U240: The China-made 640×512 (InGaAs) sensor, 0.33 MP (640×512) resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 8/12/14 Bit: 240 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The SWIR333KMB-E1019-U240 is a swir camera in the 400 2500 series, built around a China-made 640×512 (InGaAs) sensor, 0.33 MP (640×512) resolution, 15 µm × 15 µm pixels, frame rates up to 8/12/14 Bit: 240 fps @ 640×512, a USB3 interface. It suits short-wave infrared (swir) cameras where reliable imaging performance and interface compatibility matter.
| Model | SWIR333KMB-E1019-U240 |
|---|---|
| Sensor | China-made 640×512 (InGaAs) |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 1/1.3" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 1000–1900 nm |
| Frame Rate | 8/12/14 Bit: 240 fps @ 640×512 |
|---|---|
| Bit Depth | 8/12/14-bit |
| Dynamic Range | Available on request |
| Sensitivity | Available on request |
| GPIO | 1 optically isolated input, 1 optically isolated output |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | DC 12 V |
| Dimensions | 68 mm × 68 mm × 90.3 mm |
|---|---|
| Weight | 485 g |
| Operating Temperature | 30 °C to +60 °C |
|---|---|
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
| Operating System Support | Win32/WinRT/Linux/macOS/Android |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect SWIR333KMB-E1019-U240 to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: China-made 640×512 (InGaAs) · Resolution: 0.33 MP (640×512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 8/12/14 Bit: 240 fps @ 640×512 · Interface: USB3. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 optically isolated input, 1 optically isolated output. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: Available on request. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR333KMB-E1019-U240 with the closest available models in the 400 2500 family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR333KMB-E1019-U240 (current) | SWIR1302KMB-E0417-U200 | SWIR333KMB-E1222-U270 |
|---|---|---|---|
| Sensor | China-made 640×512 (InGaAs) | China-made 1280 × 1024 sensor | China-made 640×512 (InGaAs) |
| Resolution | 0.33 MP (640×512) | 1.3 MP (1280 × 1024) | 0.33 MP (640×512) |
| Sensor size | 9.60 mm × 7.68 mm | 1.5" | 9.60 mm × 7.68 mm |
| Pixel size / frame rate | 15 µm × 15 µm | 15 µm × 15 µm | 15 µm × 15 µm |
Compare the SWIR333KMB-E1019-U240 with other 400 2500 models and swir cameras in the range.
