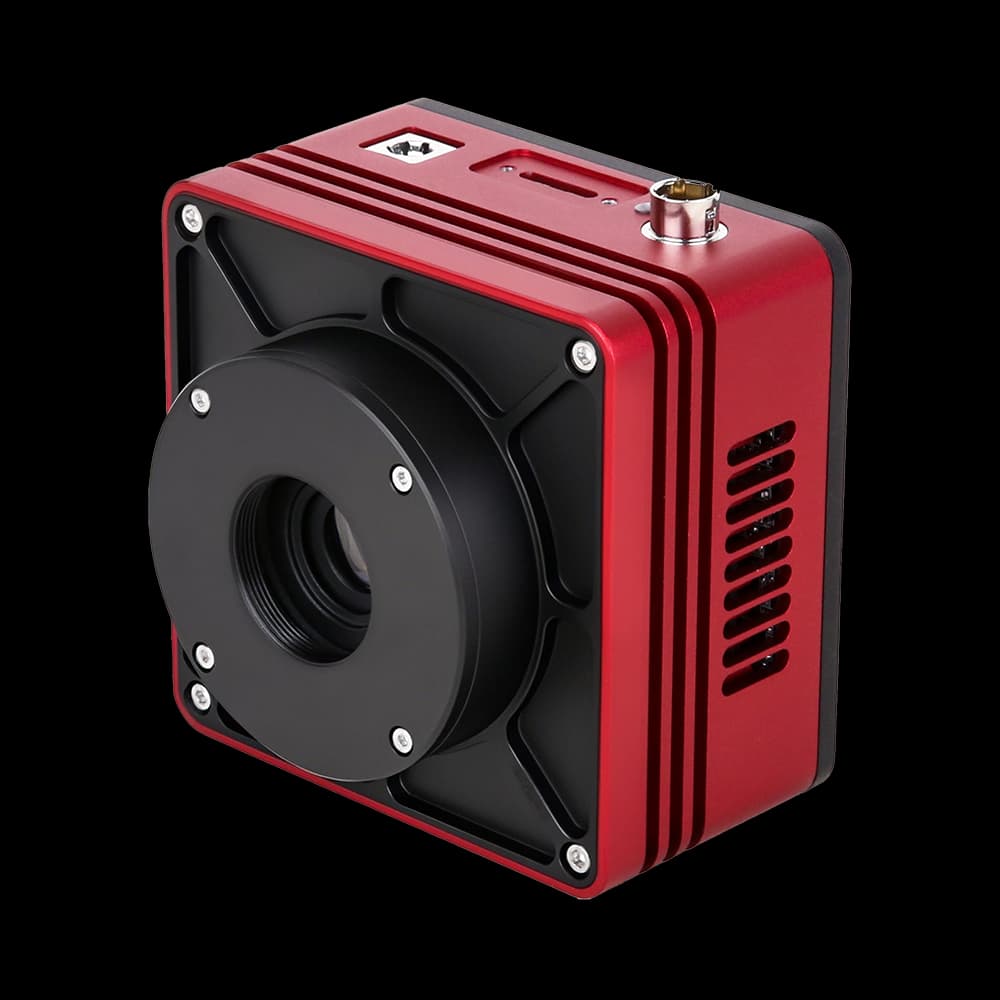

Monochrome · Short-Wave Infrared Camera
SWIR1300KMA
- Sensor
- Sony IMX990-AABA-C (InGaAs)
- Resolution
- 1.3 MP (1280×1024)
- Pixel Size
- 5.0 µm × 5.0 µm
- Frame Rate
- 8 Bit: 200 fps @ 1280×1024, 392 fps @ 640×512; 12 Bit: 108 fps @ 1280×1024, 209 fps @ 640×512
- Interface
- USB3
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX990-AABA-C (InGaAs) |
|---|---|
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 1.3 MP (1280×1024) |
| Sensor Size | 6.40 mm × 5.12 mm |
| Sensor Diagonal | 1/2" (8.20 mm) |
| Pixel Size | 5.0 µm × 5.0 µm |
| Spectral Response Range | 400–1700 nm |
Performance
| Frame Rate | 8 Bit: 200 fps @ 1280×1024, 392 fps @ 640×512; 12 Bit: 108 fps @ 1280×1024, 209 fps @ 640×512 |
|---|---|
| Bit Depth | 8/12-bit |
| Dynamic Range | 58.7 dB |
| Sensitivity | 121 mV |
Interface & Connectivity
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
|---|---|
| Data Interface | USB3 |
| Interface | USB3 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | USB3 bus-powered / 12V power adapter |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
| Weight | <390 g |
| Operating Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 20%~80% (non-condensing) |
| Storage Temperature | 40 °C ~ +85 °C |
| Storage Humidity | 20%~80% (non-condensing) |
Other Published Specifications
| Model | SWIR1300KMA |
|---|---|
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certifications | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | SWIR1300KMA (current) | SWIR1300KMA-CL180Same IMX990 sensor | SWIR1300KMA-CXPSame IMX990 sensor | SWIR1300KMA-GSame IMX990 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX990-AABA-C (InGaAs) | Sony IMX990-AABA-C (InGaAs) | Sony IMX990-AABA-C (InGaAs) | Sony IMX990-AABA-C (InGaAs) |
| Image type | Monochrome | Monochrome | Monochrome | Monochrome |
| Resolution | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) | 1.3 MP (1280×1024) |
| Pixel size | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm |
| Frame / line rate | 8 Bit: 200 fps @ 1280×1024, 392 fps @ 640×512; 12 Bit: 108 fps @ 1280×1024, 209 fps @ 640×512 | 8-bit: 183 fps @ 1280×1024, 350 fps @ 640×512; 12-bit: 97 fps @ 1280×1024, 185 fps @ 640×512 | 8 Bit: 134 fps @ 1280×1024, 260 fps @ 640×512; 10 Bit: 125 fps @ 1280×1024, 242 fps @ 640×512; 12 Bit: 71 fps @ 1280×1024, 138 fps @ 640×512 | 90 fps @ 1280×1024; 253 fps @ 640×512 |
| Interface | USB3 | CameraLink | CoaXPress 2.0 (CXP-10 x 1) | GigE |
| Cooling / shutter | Global shutter | Global shutter | Global shutter | Global shutter |
