Short-Wave Infrared Camera

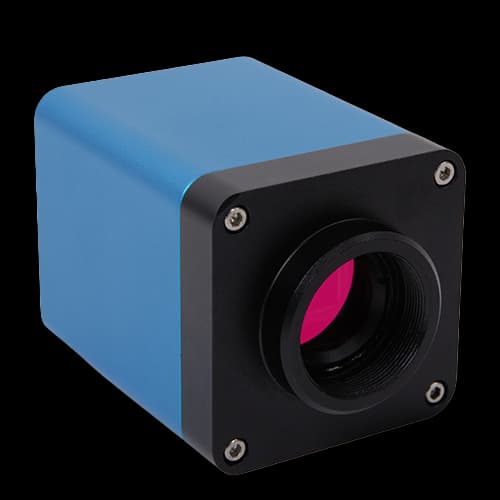

SWIR330KMB-WUH Short-Wave Infrared Camera with Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) for professional imaging.
Application context
SWIR330KMB-WUH: The Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, and 5.0 µm × 5.0 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR330KMB-WUH: The Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, and 5.0 µm × 5.0 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
40 specification rows
The SWIR330KMB-WUH is a swir camera in the Sony 991 series, built around a Sony IMX991-AABJ-C (InGaAs) sensor, 0.33 MP (640×512) resolution, 5.0 µm × 5.0 µm pixels, frame rates up to HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512, a HDMI 1.4 / WiFi / USB Video (Micro USB) interface. It suits short-wave infrared camera where reliable imaging performance and interface compatibility matter.
| Model | SWIR330KMB-WUH |
|---|---|
| Sensor | Sony IMX991-AABJ-C (InGaAs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 3.20 mm × 2.56 mm |
| Sensor Diagonal | 1/4" (8.94 mm × 7.09 mm) |
| Pixel Size | 5.0 µm × 5.0 µm |
| Spectral Response Range | 400–1700 nm |
| Frame Rate | HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 |
|---|---|
| Bit Depth | 12-bit |
| Dynamic Range | 59.6 dB |
| Sensitivity | 121 mV |
| Max SNR | 52.5 dB |
| Conversion Gain | 43.0 e/ADU |
|---|---|
| Readout Noise | 178.8 e |
| Full Well Capacity | 176.2 ke |
| Dark Current | 638 e/s (20 °C) |
| Exposure Time Range | 0.04–1000 ms |
| Binning Mode | Software 2×2, 3×3, 4×4 |
| Data Format | 12-bit |
| Filter | 400–1800 nm (standard); 1030–1800 nm (optional) |
| CRA | 2.35° |
| Gain Range | 1×–50× |
| Hardware Image Buffer | Available on request |
| Cooling Method | Natural cooling |
| GPIO | No industrial IO interface |
|---|---|
| Lens Mount | C-mount |
| Data Interface | HDMI 1.4 / WiFi / USB Video (Micro USB) |
| Power Supply | DC 12 V / 1 A power adapter |
| Power Consumption | <3.2 W |
| Dimensions | 50 mm × 50 mm × 71.5 mm |
|---|---|
| Weight | Available on request |
| Operating Temperature | 10 °C ~ +50 °C |
|---|---|
| Operating Humidity | 30%~80% RH |
| Storage Temperature | 20 °C ~ +60 °C |
| Storage Humidity | 10%~60% RH |
| Operating System | Windows / macOS / Linux / Android / iOS |
|---|---|
| Software | Embedded XCamView / PC ToupView and SDK |
| Certifications | CE, FCC |
System integration
Use these checks to connect SWIR330KMB-WUH to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX991-AABJ-C (InGaAs) · Resolution: 0.33 MP (640×512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 60 fps @ 1920×1080; WiFi/USB: 137 fps @ 640×512 · Interface: HDMI 1.4 / WiFi / USB Video (Micro USB). Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: No industrial IO interface. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 59.6 dB · Full Well Capacity: 176.2 ke. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR330KMB-WUH with the closest available models in the Sony 991 family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR330KMB-WUH (current) | SWIR330KMB-UMV | SWIR330KMB-GMV |
|---|---|---|---|
| Sensor | Sony IMX991-AABJ-C (InGaAs) | Sony IMX991-AABJ-C (InGaAs) | Sony IMX991-AABJ-C (InGaAs) |
| Resolution | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Sensor size | 3.20 mm × 2.56 mm | 3.20 mm × 2.56 mm | 3.20 mm × 2.56 mm |
| Pixel size / frame rate | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm |
The IMX991 appears in 9 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the SWIR330KMB-WUH with other Sony 991 models and swir cameras in the range.
