Monochrome · Short-Wave Infrared Camera

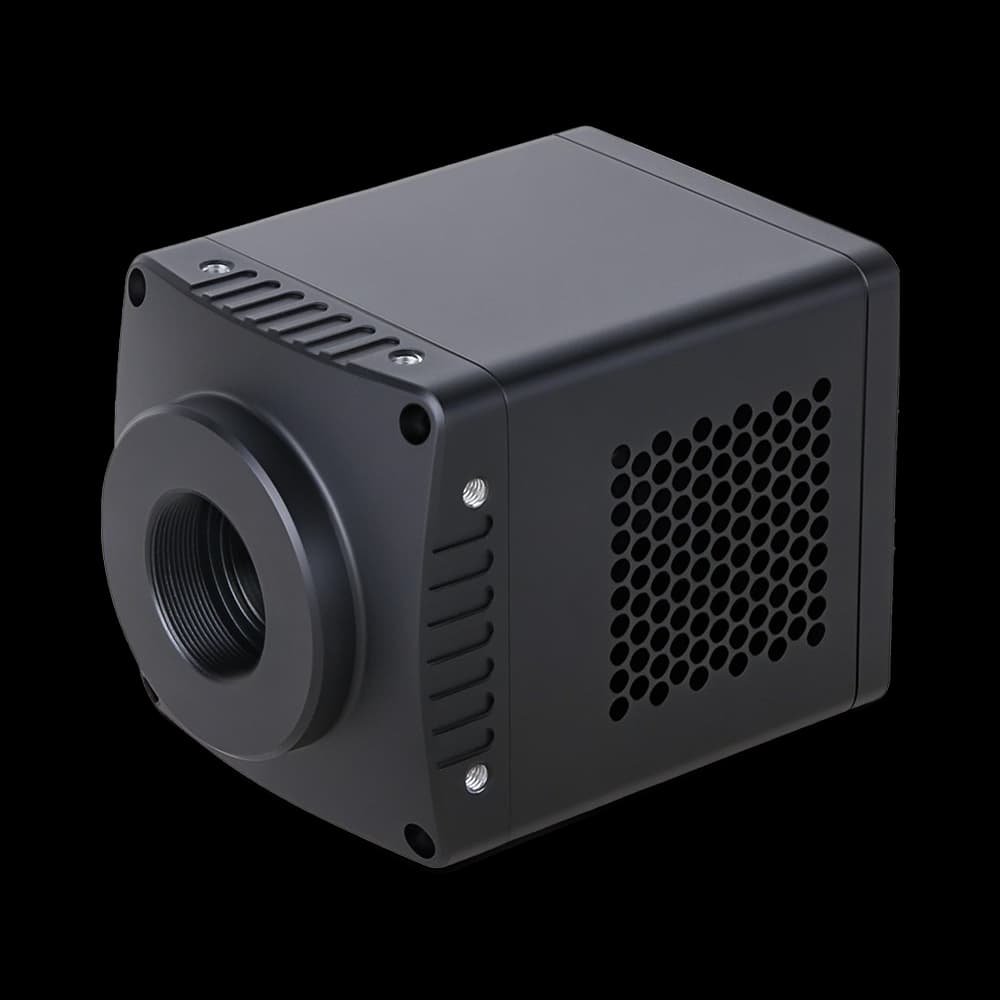

SWIR331KMB-U700-C0
- Sensor
- China-made 640×512 (InGaAs CMOS)
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 8 Bit: 724 fps @ 640×512; Packet12: 724 fps @ 640×512; 14 Bit: 579 fps @ 640×512
- Interface
- USB3
Complete Specifications
Sensor & Imaging
| Sensor | China-made 640×512 (InGaAs CMOS) |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 1/1.3" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
Performance
| Frame Rate | 8 Bit: 724 fps @ 640×512; Packet12: 724 fps @ 640×512; 14 Bit: 579 fps @ 640×512 |
|---|---|
| Bit Depth | 14-bit |
| Dynamic Range | 70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG) *1 |
| Sensitivity | Available on request |
Interface & Connectivity
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated I/O ports |
|---|---|
| Data Interface | USB3 |
| Interface | USB3 |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V power supply |
| Dimensions | 68 mm × 68 mm × 90.3 mm |
| Weight | 485 g |
| Operating Temperature | 30 °C to +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Published Specifications
| Model | SWIR331KMB-U700-C0 |
|---|---|
| Operating System | Complete SDK development package/ToupView |
| Certifications | Key components sourced from China (supports long exposure mode, deep cooling to -45 °C) |
