Monochrome · Short-Wave Infrared Camera

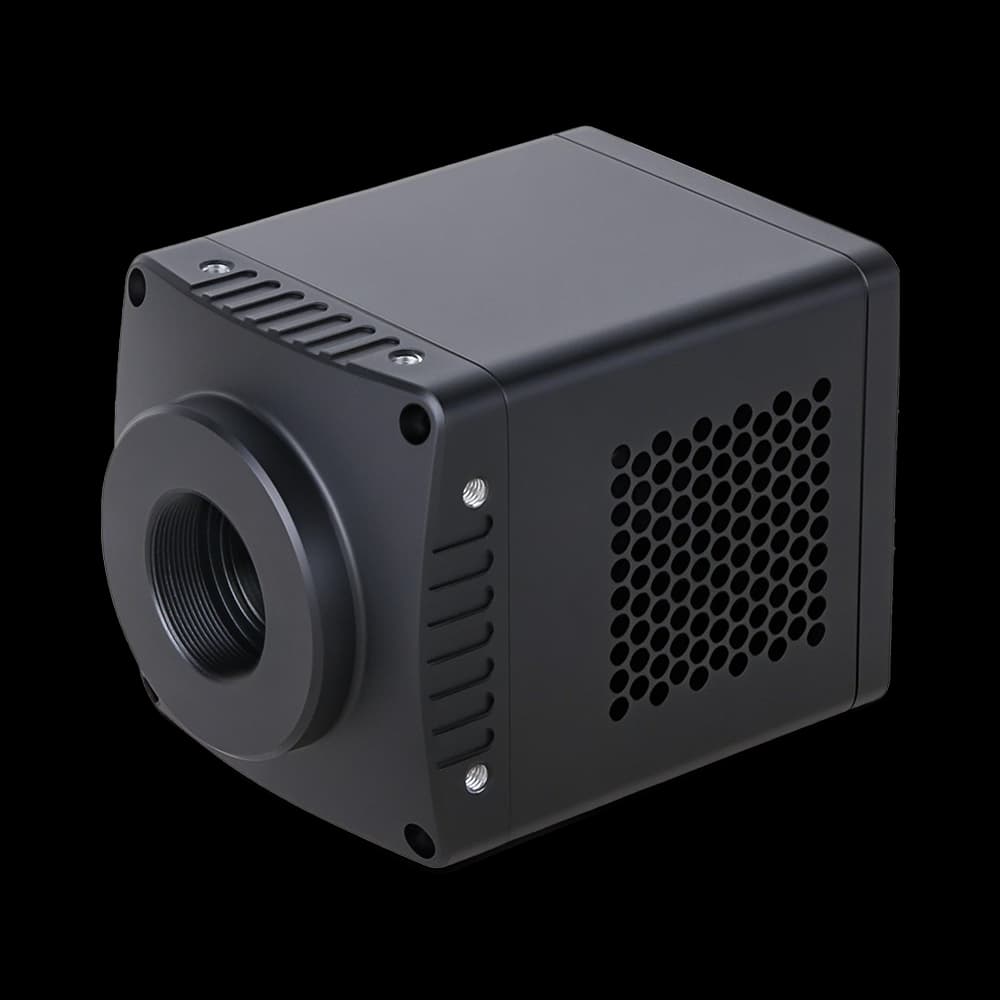

SWIR339KMB-CL700
- Sensor
- China-made 640×512 (InGaAs CMOS), built-in TEC
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 15 µm × 15 µm
- Frame Rate
- 724 fps @ 640×512
- Interface
- CameraLink Full
Complete Specifications
Sensor & Imaging
| Sensor | China-made 640×512 (InGaAs CMOS), built-in TEC |
|---|---|
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 9.60 mm × 7.68 mm |
| Sensor Diagonal | 3/4" (12.29 mm) |
| Pixel Size | 15 µm × 15 µm |
| Spectral Response Range | 900–1700 nm |
Performance
| Frame Rate | 724 fps @ 640×512 |
|---|---|
| Bit Depth | 12/14-bit |
| Dynamic Range | 70.6 dB (LG), 63.0 dB (MG) |
| Sensitivity | QE 75% @ 1350 nm |
Interface & Connectivity
| GPIO | 1 optically isolated input, 1 optically isolated output |
|---|---|
| Data Interface | CameraLink Full |
| Interface | CameraLink Full |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V power supply |
| Dimensions | 68 mm × 68 mm × 90.3 mm |
| Weight | 485 g |
| Operating Temperature | 30 °C to +60 °C |
| Operating Humidity | 20% to 80% (non-condensing) |
| Storage Temperature | 40 °C to +85 °C |
| Storage Humidity | 20% to 80% (non-condensing) |
Other Published Specifications
| Model | SWIR339KMB-CL700 |
|---|---|
| Operating System | SDK development package and CLView software based on Delsa frame grabber |
| Certifications | Key components sourced from China |
