Monochrome · Short-Wave Infrared Camera

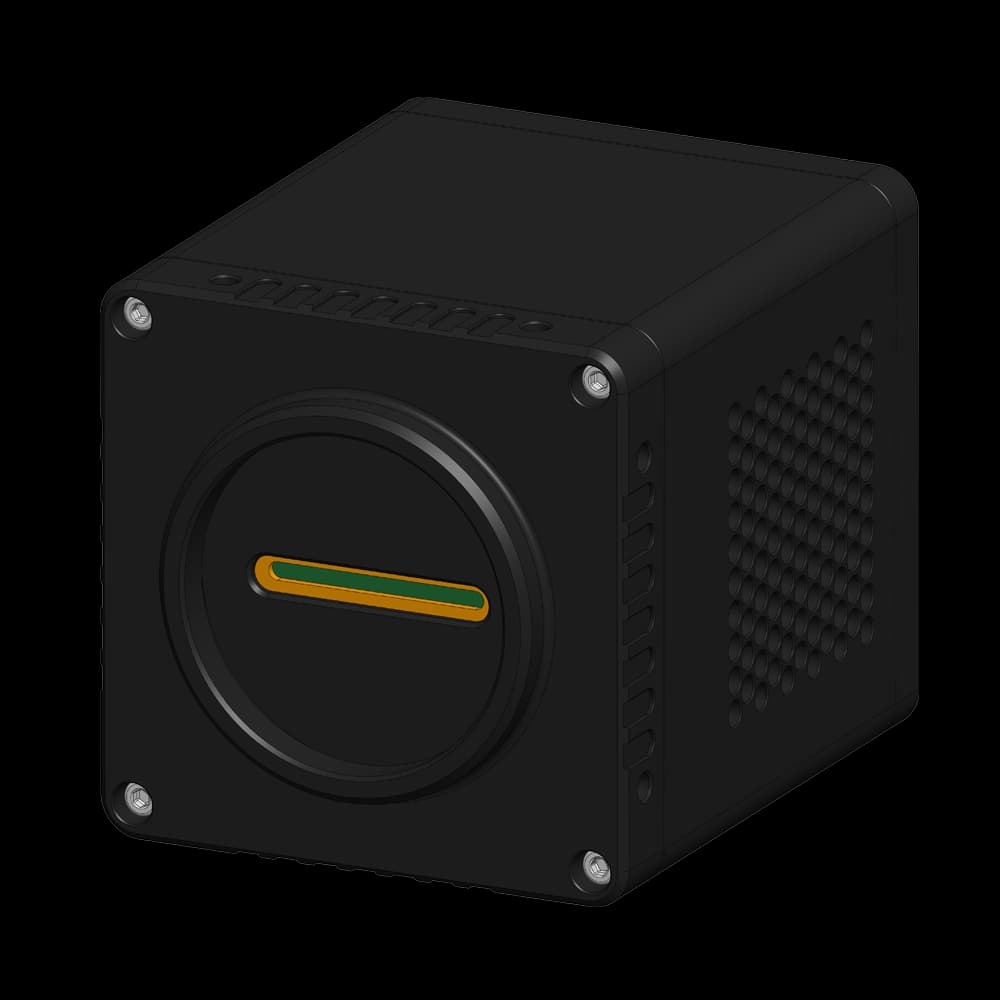

SWIR2048L3A-CL80K
- Sensor
- China-made 2048-pixel line-scan sensor
- Resolution
- 2048 pixels (2048 × 1)
- Pixel Size
- 12.5 µm × 12.5 µm
- Frame Rate
- 79K @ 2048 × 1
- Interface
- CameraLink Full
- Cooling
- 40 °C below ambient temperature
Complete Specifications
Sensor & Imaging
| Sensor | China-made 2048-pixel line-scan sensor |
|---|---|
| Sensor Type | InGaAs short-wave infrared (SWIR) line-scan image sensor |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 2048 pixels (2048 × 1) |
| Sensor Size | 25.6 mm |
| Pixel Size | 12.5 µm × 12.5 µm |
| Spectral Range | 900–1700 nm |
| Quantum Efficiency | 70% @ 1550 nm |
| Data Format | Mono 14 |
Performance
| Frame Rate | 79K @ 2048 × 1 |
|---|---|
| ADC | 14 bit |
| Memory | 512 MByte |
| Conversion Gain | 6.1 e-/ADU (GAIN = 1) |
| Dynamic Range | 64.1 dB (GAIN = 1) |
| Readout Noise | 60.4 e- (GAIN = 1) |
| Full Well Capacity | 96.4 ke- (GAIN = 1) |
| Maximum SNR | 49.8 dB (GAIN = 1) |
| Exposure Time Range | 1 µs - 1 s |
Interface & Connectivity
| Digital I/O | 1 optocoupler-isolated input, 1 optocoupler-isolated output |
|---|---|
| Data Interface | CameraLink Full |
| Interface | CameraLink Full |
Cooling & Mechanical
| Lens Mount | M42 |
|---|---|
| Cooling Capacity | 40 °C below ambient temperature |
| Power Supply | DC 12 V |
| Dimensions | 68 mm × 68 mm × 90.3 mm |
| Weight | 485 g |
| Power Consumption | Available on request |
| Operating Temperature | Working temperature: -40 °C to 70 °C |
| Operating Humidity | 20% to 80%, non-condensing |
| Storage Temperature | Storage temperature: -40 °C to 70 °C |
Other Published Specifications
| Model | SWIR2048L3A-CL80K |
|---|---|
| Software | SDK development kit and CLView software based on Delsa frame grabber |
| Operating System / Driver | SDK development kit and CLView software based on Delsa frame grabber |
| Certification | CE, FCC |
