Short-Wave Infrared Camera

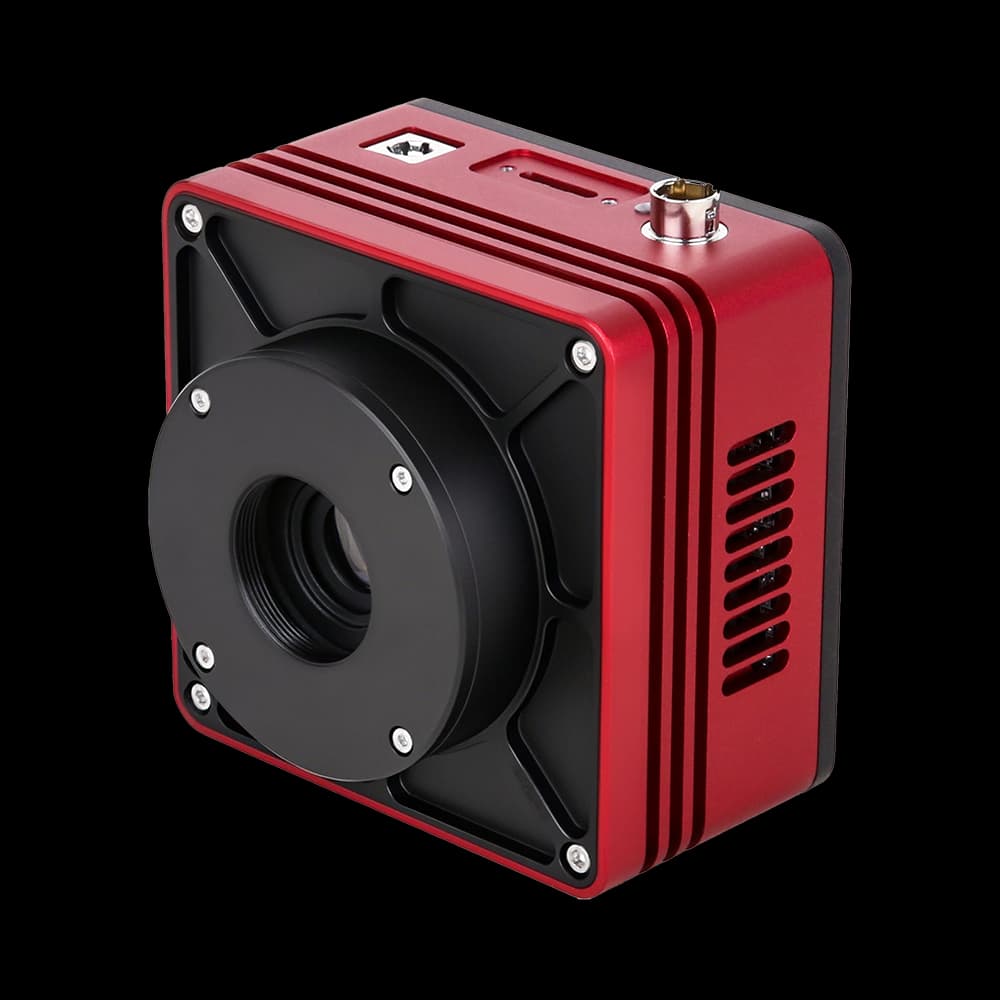

SWIR3000KMA Short-Wave Infrared Camera with Sony IMX993-AABA-C (InGaAs) sensor, 3.0 MP (2048×1536) for professional imaging.
Application context
SWIR3000KMA: The Sony IMX993-AABA-C (InGaAs) sensor, 3.0 MP (2048×1536) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
SWIR3000KMA: The Sony IMX993-AABA-C (InGaAs) sensor, 3.0 MP (2048×1536) resolution, and 3.45 µm × 3.45 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
25 specification rows
The SWIR3000KMA is a swir camera in the Sony 993 series, built around a Sony IMX993-AABA-C (InGaAs) sensor, 3.0 MP (2048×1536) resolution, 3.45 µm × 3.45 µm pixels, frame rates up to 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768, a USB3 interface. It suits short-wave infrared camera where reliable imaging performance and interface compatibility matter.
| Model | SWIR3000KMA |
|---|---|
| Sensor | Sony IMX993-AABA-C (InGaAs) |
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 3.0 MP (2048×1536) |
| Sensor Size | 7.07 mm × 5.3 mm |
| Sensor Diagonal | 1/1.8" (8.84 mm) |
| Pixel Size | 3.45 µm × 3.45 µm |
| Spectral Response Range | 400–1700 nm |
| Frame Rate | 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768 |
|---|---|
| Bit Depth | 8/12-bit |
| Dynamic Range | 51.36 dB (HCG); 51.47 dB (LCG) |
| Sensitivity | Available on request |
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
|---|---|
| Lens Mount | C-mount |
| Data Interface | USB3 |
| Power Supply | USB3 bus-powered / 12V power adapter |
| Dimensions | 80 mm × 80 mm × 45.5 mm |
|---|---|
| Weight | <390 g |
| Operating Temperature | 20 °C ~ +60 °C |
|---|---|
| Operating Humidity | 20%~80% (non-condensing) |
| Storage Temperature | 40 °C ~ +85 °C |
| Storage Humidity | 20%~80% (non-condensing) |
| Operating System | Win32/WinRT/Linux/macOS/Android |
|---|---|
| Certifications | CE, FCC |
System integration
Use these checks to connect SWIR3000KMA to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX993-AABA-C (InGaAs) · Resolution: 3.0 MP (2048×1536). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 8 Bit: 93 fps @ 2048×1536, 176 fps @ 1024×768; 12 Bit: 57 fps @ 2048×1536, 176 fps @ 1024×768 · Interface: USB3. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 51.36 dB (HCG); 51.47 dB (LCG). Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare SWIR3000KMA with the closest available models in the Sony 993 family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | SWIR3000KMA (current) | SWIR3000KMA-10G | SWIR3000KMA-CL150 |
|---|---|---|---|
| Sensor | Sony IMX993-AABA-C (InGaAs) | Sony IMX993-AABA-C (InGaAs) | Sony IMX993-AABA-C (InGaAs) |
| Resolution | 3.0 MP (2048×1536) | 3.0 MP (2048×1536) | 3.0 MP (2048×1536) |
| Sensor size | 7.07 mm × 5.3 mm | 7.07 mm × 5.3 mm | 7.07 mm × 5.3 mm |
| Pixel size / frame rate | 3.45 µm × 3.45 µm | 3.45 µm × 3.45 µm | 3.45 µm × 3.45 µm |
The IMX993 appears in 7 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
