Monochrome · Short-Wave Infrared Camera
SWIR330KMB-GMV
- Sensor
- Sony IMX991-AABJ-C (InGaAs)
- Resolution
- 0.33 MP (640×512)
- Pixel Size
- 5.0 µm × 5.0 µm
- Frame Rate
- 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256
- Interface
- GigE
Complete Specifications
Sensor & Imaging
| Sensor | Sony IMX991-AABJ-C (InGaAs) |
|---|---|
| Shutter Type | Global shutter |
| Color Type | Monochrome |
| Resolution | 0.33 MP (640×512) |
| Sensor Size | 3.20 mm × 2.56 mm |
| Sensor Diagonal | 1/4" (4.10 mm) |
| Pixel Size | 5.0 µm × 5.0 µm |

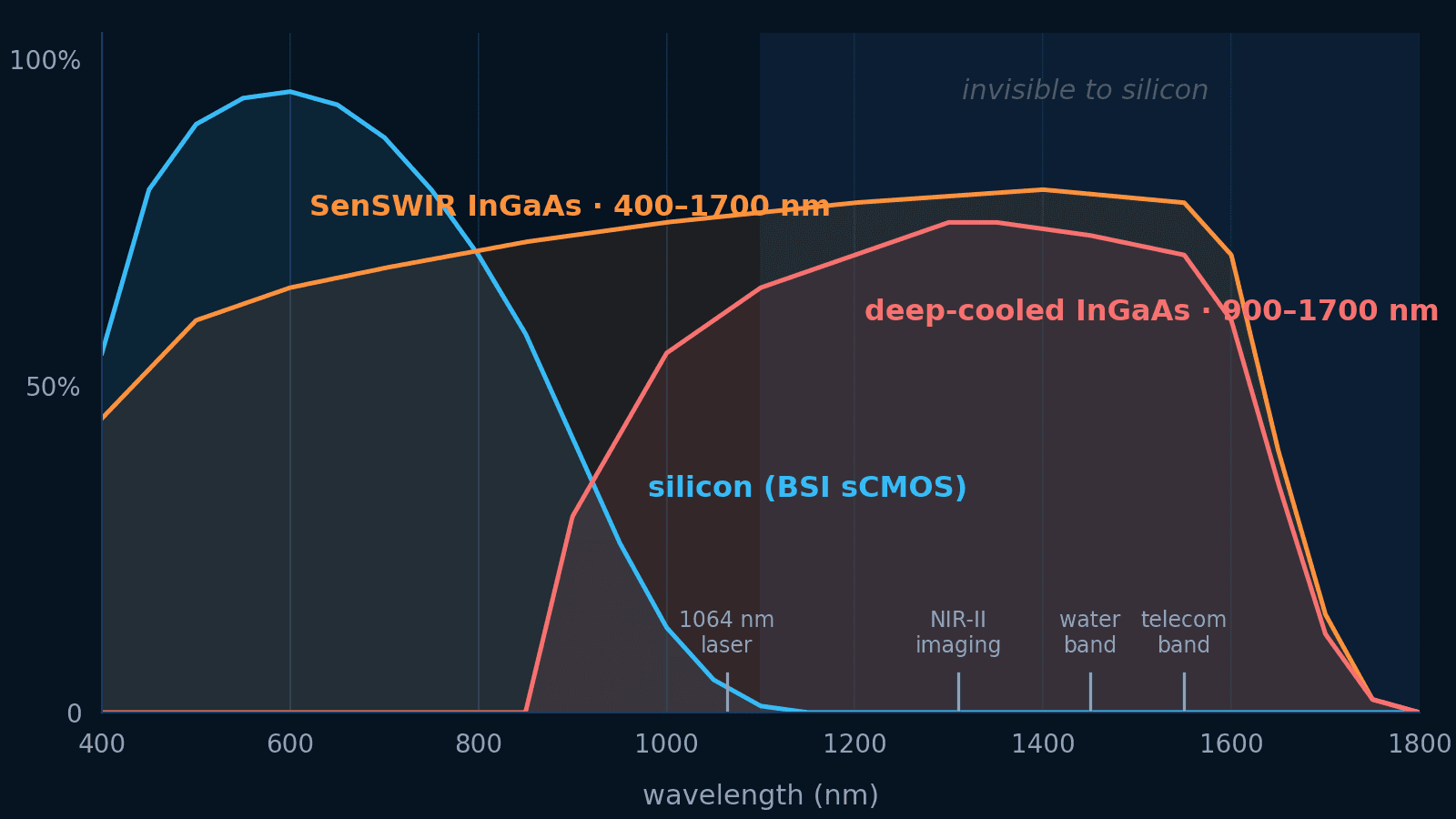

| Spectral Response Range | 400–1700 nm |
Performance
| Frame Rate | 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 |
|---|---|
| Bit Depth | 8/12-bit |
| Dynamic Range | 59.6 dB |
| Sensitivity | 121 mV |
Interface & Connectivity
| GPIO | 1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O |
|---|---|
| Data Interface | GigE |
| Interface | GigE |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | 12V power adapter |
| Dimensions | 33 mm × 33 mm × 58 mm |
| Weight | Available on request |
| Operating Temperature | 20 °C ~ +60 °C |
| Operating Humidity | 20%~80% (non-condensing) |
| Storage Temperature | 40 °C ~ +85 °C |
| Storage Humidity | 20%~80% (non-condensing) |
Other Published Specifications
| Model | SWIR330KMB-GMV |
|---|---|
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certifications | CE, FCC |
Technical Files & Images
Related Products
| Selection parameter | SWIR330KMB-GMV (current) | SWIR330KMASame IMX991 sensor | SWIR330KMA-CL350Same IMX991 sensor | SWIR330KMA-CXPSame IMX991 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX991-AABJ-C (InGaAs) | Sony IMX991-AABA-C (InGaAs) | Sony IMX991-AABA-C (InGaAs) | Sony IMX991-AABA-C (InGaAs) |
| Image type | Monochrome | Monochrome | Monochrome | Monochrome |
| Resolution | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) | 0.33 MP (640×512) |
| Pixel size | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm | 5.0 µm × 5.0 µm |
| Frame / line rate | 8 Bit: 257.8 fps @ 640×512, 486.1 fps @ 320×256; 12 Bit: 137.1 fps @ 640×512, 258.6 fps @ 320×256 | 8 Bit: 400 fps @ 640×512, 753 fps @ 320×256; 12 Bit: 212 fps @ 640×512, 400 fps @ 320×256 | 8 Bit: 350 fps @ 640×512, 657 fps @ 320×256; 12 Bit: 188 fps @ 640×512, 350 fps @ 320×256 | 8 Bit: 258 fps @ 656×520, 486 fps @ 328×260; 10 Bit: 240 fps @ 656×520, 451 fps @ 328×260; 12 Bit: 137 fps @ 656×520, 258 fps @ 328×260 |
| Interface | GigE | USB3 | CameraLink | CoaXPress 2.0 (CXP-10 x 1) |
| Cooling / shutter | Global shutter | Global shutter | Global shutter | Global shutter |
