Complete your optical setup
Explore the components
28 component families for your optical setup
Beam shaping & optics

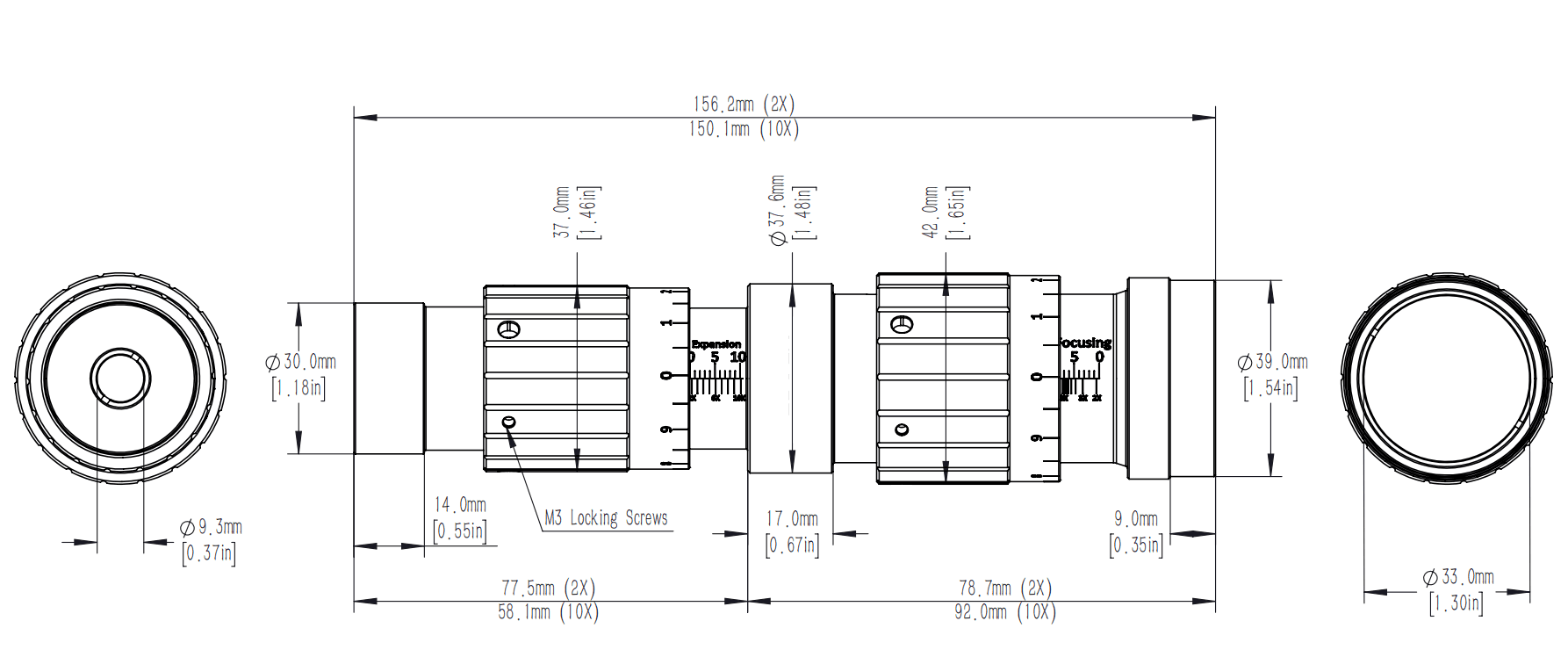

Beam Expander
Fixed and variable beam expanders increase beam diameter and reduce divergence. Compare expansion ratios, mechanical dimensions and wavelength options to match the beam to your focusing or delivery optics.
Coupling & delivery
Fiber Optic Collimator
Collimate light at the fiber output with spherical, aspheric or achromatic optics. Choose a compact standard unit, an integrated fiber collimator, or a configuration for large beams and long-distance delivery.
Coupling & delivery
Fiber Coupler
Launch a free-space laser into an optical fiber with a coupler matched to the laser head, beam size and fiber interface. Compare the five coupler configurations and their mounting methods.
Coupling & delivery
Fiber for Laser Coupling
Single-mode, multimode and polarization-maintaining fibers route laser light to your experiment. Specify core diameter, wavelength, connector and length together, with collimators, combiners and holders to complete the path.
Beam shaping & optics

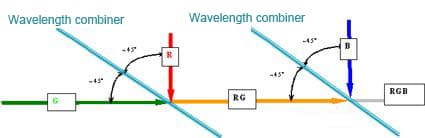

Beam Combiner
Bring two or three visible laser wavelengths onto a common optical path. Compare RGB wavelength combinations and polarization combiner plates for red, green and blue beams.
Beam shaping & optics
Polarization Beam Splitter / Combiner
Split a beam into orthogonal polarization components, or combine two polarized beams into one path. Compare plate sizes and coatings for red, green and blue laser wavelengths.
Modulation & control

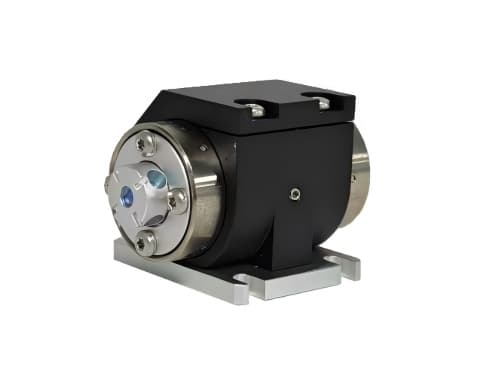

Faraday Isolator
Protect your laser from destabilizing back-reflections with a free-space Faraday isolator. A magneto-optic rotator and a pair of polarizers transmit the forward beam while blocking returning light. Choose discrete UV, visible and infrared center wavelengths from 308 to 1064 nm, with low-absorption crystal optics and custom large-aperture options.
Modulation & control
Spatial Light Modulator
Control the phase or amplitude of a wavefront with a reflective or transmissive spatial light modulator. Compare resolution, pixel pitch, spectral range and modulation type across the SLM range.
Modulation & control

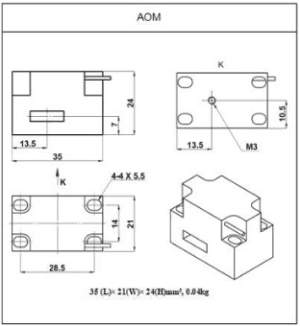

AOM & Shutter
Choose an acousto-optic modulator for fast intensity control or a mechanical shutter for beam gating. Separate specification tables make the optical, timing and drive requirements easy to compare.
Modulation & control

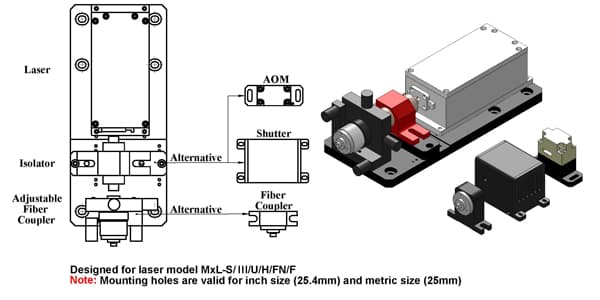

Multi-function Optical System
Combine laser sources, thermal management, isolation, shutters, fiber coupling and acousto-optic modulation on a configurable platform. Specify the optical train around your wavelengths, beam geometry and timing requirements.
Beam shaping & optics
Variable Attenuator
Adjust optical power with circular, rectangular, polarization-based or motorized attenuators. Compare wavelength range, optical density and control interfaces for your source and experiment.
Beam shaping & optics
Line Generator
Turn a laser spot into a straight reference line for alignment, machine vision and process control. Choose the fan angle to suit the working distance and required line length.
Mounting, thermal & safety

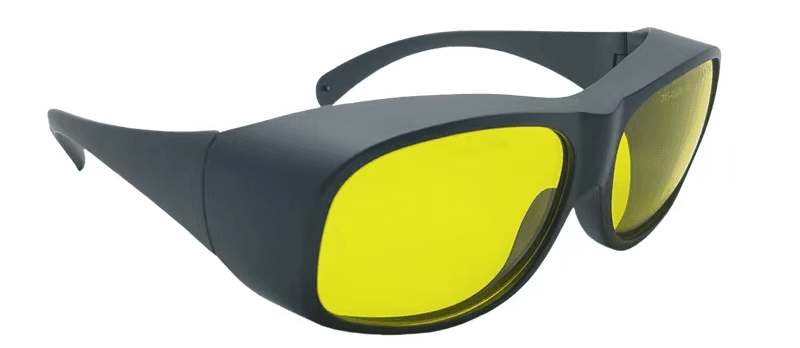

Laser Goggles
Compare laser eyewear by model, visible light transmission, optical density and the listed protection rating at each wavelength. Match the eyewear to the exact laser and operating mode before ordering.
Mounting, thermal & safety

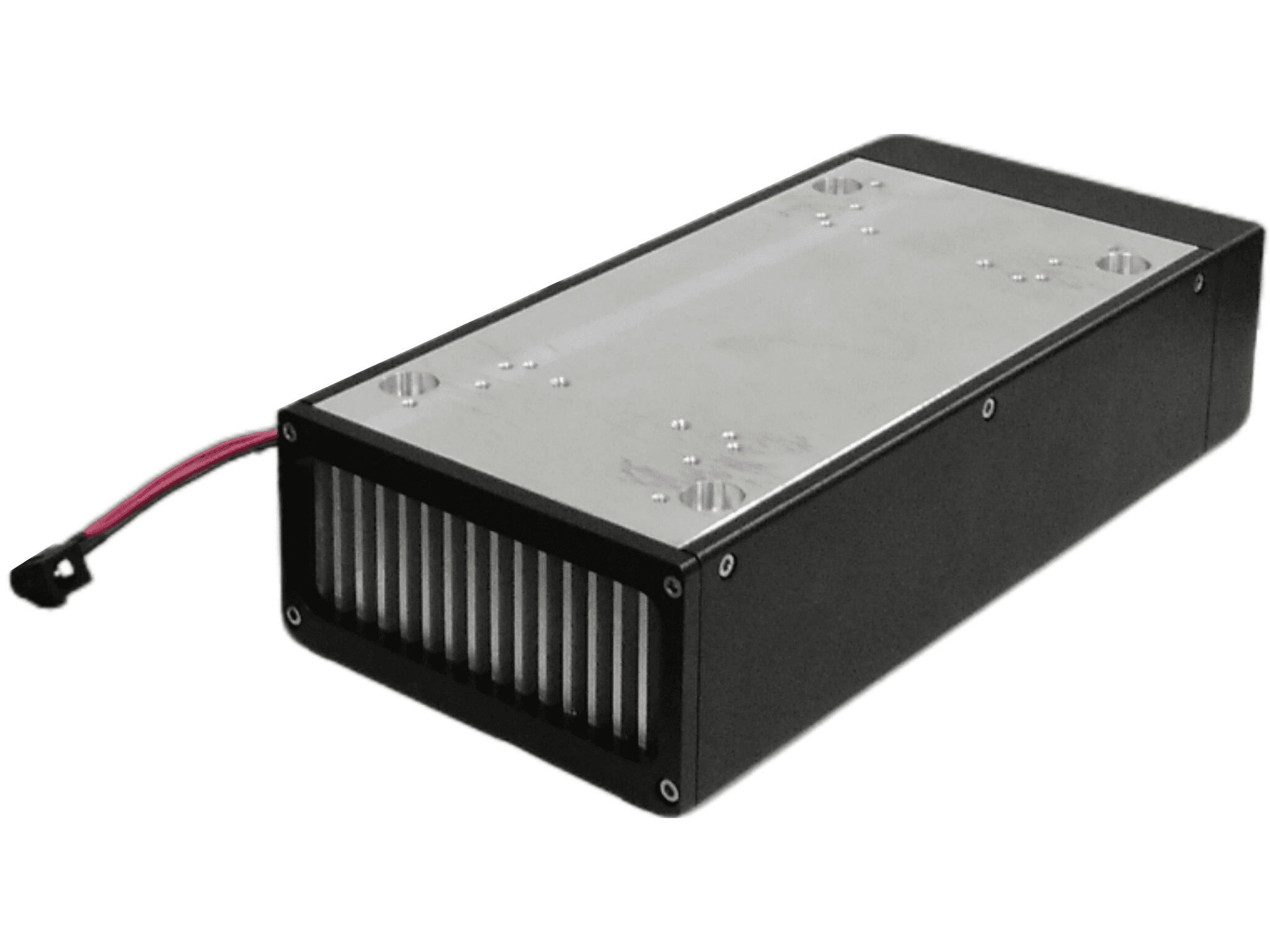

Heatsink
Keep the laser package at a stable operating temperature with active temperature control or a passive aluminum heatsink. Compare the controlled area, mounting footprint and weight across the TC range.
Beam shaping & optics
F-Theta Scanning Lens
Focus a scanned laser beam onto a working field with an F-theta lens. Match wavelength, effective focal length, scan field and entrance pupil to the scan head and process geometry.
Modulation & control

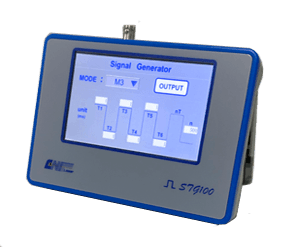

Signal / Pulse Generator
The SG-01 provides an adjustable modulation signal for laser and optoelectronic control. Set frequency and duty cycle, then match the output to the receiving driver, shutter or modulator.
Coupling & delivery
Articulated Arm
Deliver CO₂ or YAG laser energy from the source to a process head through a counterbalanced articulated arm. Choose spring or weight balancing, joint configuration and focusing optics for the working envelope.
Mounting, thermal & safety

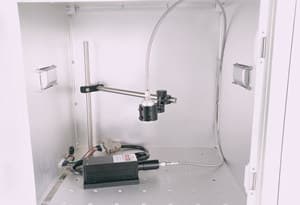

Laser Safety Protective Housing
Enclose the accessible beam path with an LSP-01 protective housing configured for the laser and experiment. Specify apertures, service access, beam stops and the interlock chain as part of the complete enclosure.
Modulation & control
Laser Power Supply
Drive diode and solid-state lasers with a power supply matched to current, voltage, modulation and temperature control. Compare the PSU-A-D and PSU-SR electrical limits and interfaces side by side.
Mounting, thermal & safety
Laser Viewing Card
Locate ultraviolet and infrared beams with viewing cards selected for the emission wavelength and irradiance. Compare active areas, conversion materials and sensitivity under the listed viewing conditions.
Beam shaping & optics
Grating
Disperse light with reflective plane diffraction gratings for spectroscopy and optical instruments. Compare groove density, blaze wavelength, blaze angle and substrate dimensions for each model.
Mounting, thermal & safety

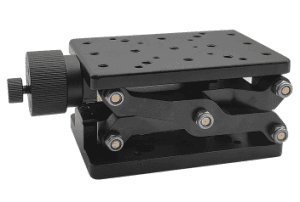

Lab Platform
Adjust laser-head height with compact lifting platforms for the optical bench. Compare the platform footprint, travel, height range and load capacity to match the source and surrounding optics.
LEDs & laser diodes
Fiber-Coupled High-Power LED
Multimode fiber-coupled LEDs provide broadband illumination from deep ultraviolet to near infrared. Compare wavelength, bandwidth and fiber-output power for four core diameters, then match the source to your collection optics.
Beam shaping & optics
Precision Optics
Select coated laser crystals, frequency-doubling crystals, lenses, waveplates, beam splitters and optical windows. Browse each optical family in its own specification table, with dimensions and coating options kept together.
LEDs & laser diodes
Laser Diode Component
Configurable free-space, pigtailed and fiber-coupled laser diodes covering 375–1610 nm, from low-power single-mode and narrow-linewidth DFB devices to high-power pump modules up to 500 W. Select the optical interface, driver, cooling and mounting as one integrated build.
Beam shaping & optics
PIV Laser Light Sheet
Form a light sheet for planar particle image velocimetry and flow visualization. Adjustable working distance and a choice of fan angles let the optics be configured around the test section, incident beam and required sheet thickness.
Modulation & control
PIV Synchronizing System
Coordinate laser output and camera acquisition with a PIV timing controller. Six pulse outputs share a frequency and pulse width, with independently adjustable delays. Qualify trigger levels, timing resolution and jitter against the laser and camera before specifying the controller.
Modulation & control
PIV Remote Control System
Operate a compatible PIV laser setup through a compact remote-control interface. Select the controller with the exact laser, power supply, required operating functions and interlock arrangement.
Building a complete optical setup?
Share the source, wavelength and experiment. We can help connect the laser, beam delivery, control and mounting requirements.
