Fiber Coupled Amplified Photodetectors Module Plug-Play
9 components
Filter by wavelength, fiber and connector in the component finder →
10 MHz Fiber Optical Amplified Detector / Receiver: 0.9-2.6 µm
The COAD is designed for low-light-level detection for the 0.9 to 2.57 µm wavelength range. It has an amplified, thermoelectrically cooled (-10°C), switchable-gain, switchable-bandwidth, extended InGaAs PIN photoconductive detector. The detector is mounted on a thermoelectric cooler with a thermistor that provides feedback to maintain a constant temperature of about -10°C via an internal circuitry. This cooling enhances detectivity, resulting in higher gains and lower thermal noise. The gain, response bandwidth, and sensitivity are all interrelated. Two eight-position rotary switches allow for varying the gain in 10 dB steps and selecting bandwidths from 500 Hz to 1 MHz to optimize performance for specific applications.
TypeWavelengthFiber AdaptorConfigure1 datasheet

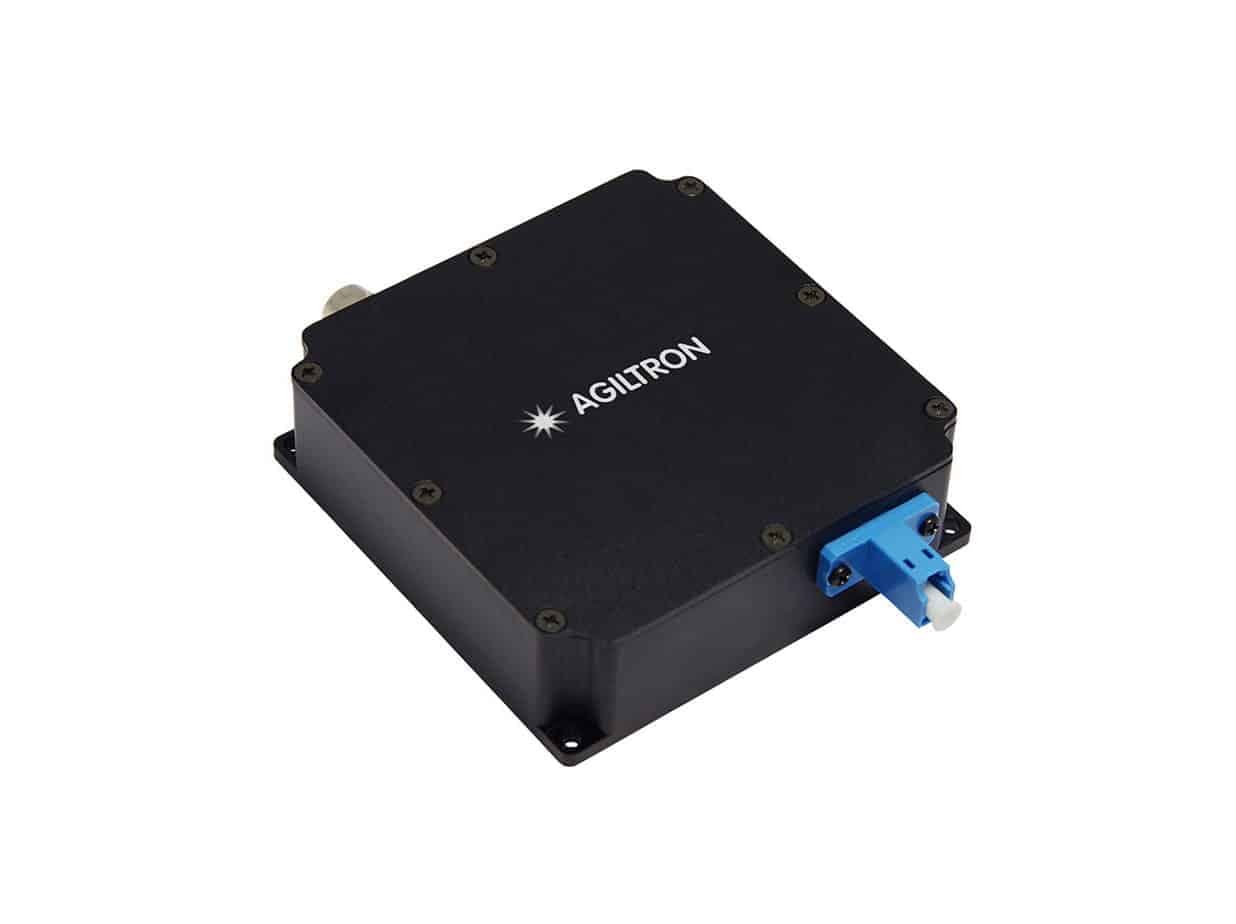

20 GHz Fiber Optical Amplified Detector / Receiver – SM and MM
The HPRM is a turnkey high-speed photoreceiver engineered for advanced analog and digital applications. It supports both single-mode and multimode fiber coupling configurations. With its high conversion gain and low input-referred noise, the HPRM delivers exceptional linearity and precision. The module offers 20 GHz analog bandwidth and 3000 V/W differential conversion gain. The differential RF output utilizes dual GPPO connectors (+ and −) to minimize susceptibility to external noise and electromagnetic interference (EMI), providing excellent common-mode rejection for superior signal integrity. For added flexibility, either connector can also be used as a single-ended output relative to ground. The unit includes a pluggable low-noise power supply, ensuring simple, reliable plug-and-play operation.
Detector TypeWavelength RangeBandwidthModule1 datasheet
3 GHz Fiber Optical Amplified Detector / Receiver
The HAPD series High-Speed Analog Fiber-Coupled Amplified Detector is designed to detect and receive analog optical signals across a wide bandwidth of 100 kHz to 3 GHz. It converts an optical input into an RF output through a high-performance, low-noise, and high-linearity amplifier. This detector is ideal for high-speed fiber optic detection and RF-over-fiber applications when paired with a matching transmitter that converts an RF signal into an optical signal.
Low FrequencyHigh FrequencyWavelengthGain1 datasheet35GHz Fiber Optical Photodetector/Receiver – MM
The HPRM is a turnkey high-speed photoreceiver designed for advanced analog and digital applications. Its high conversion gain and low input-referred noise ensure exceptional linearity and precision. The module features 35 GHz analog bandwidth and 3000 V/W differential conversion gain, supporting digital modulation rates up to 40 Gbps. The RF output is differential, utilizing dual “+” and “−” GPPO connectors, which reduces susceptibility to external noise and electromagnetic interference (EMI) while providing high common-mode rejection for superior signal integrity. Alternatively, either connector can be used as a single-ended output relative to ground, though without the advantages of differential operation. The HPRM includes a low-noise power supply for simple, plug-and-play operation.
Detector TypeWavelength RangeBandwidthModule1 datasheet35GHz Fiber Optical Photodetector/Receiver – SM
The HPRM is a turnkey high-speed photoreceiver designed for advanced analog and digital applications. Its high conversion gain and low input-referred noise ensure exceptional linearity and precision. The module features 35 GHz analog bandwidth and 3000 V/W differential conversion gain, supporting digital modulation rates up to 40 Gbps. The RF output is differential, utilizing dual “+” and “−” GPPO connectors, which reduces susceptibility to external noise and electromagnetic interference (EMI) while providing high common-mode rejection for superior signal integrity. Alternatively, either connector can be used as a single-ended output relative to ground, though without the advantages of differential operation. The HPRM includes a low-noise power supply for simple, plug-and-play operation.
Detector TypeWavelength RangeBandwidthModule1 datasheet35GHz Fiber Optical Photodetector/Receiver – SM
The HPRM is a turnkey high-speed photoreceiver designed for advanced analog and digital applications. Its high conversion gain and low input-referred noise ensure exceptional linearity and precision. The module features 35 GHz analog bandwidth and 3000 V/W differential conversion gain, supporting digital modulation rates up to 40 Gbps. The RF output is differential, utilizing dual “+” and “−” GPPO connectors, which reduces susceptibility to external noise and electromagnetic interference (EMI) while providing high common-mode rejection for superior signal integrity. Alternatively, either connector can be used as a single-ended output relative to ground, though without the advantages of differential operation. The HPRM includes a low-noise power supply for simple, plug-and-play operation.
Detector TypeWavelength RangeBandwidthModule1 datasheet40 GHz Balance Photodetector / Photoreceiver Module
The BPRM is a turnkey High Speed Balanced Photoreceiver is designed for high-speed analog and digital light detection, offering exceptional performance with a differential gain of approximately 2800 V/W and a bandwidth of up to 40 GHz. It features two waveguide-integrated PIN photodiodes and a limiting delivers a differential output voltage swing of approximately 600 mV. The BPRM achieves excellent electrical and optical phase propagation with a total skew of less than 5 ps between balanced signal paths and 10 ps total skew for all fiber pairs. Each amplifier path includes a threshold control at the linear amplification stage to optimize the differential output signal. The BPRM includes a low-noise power supply for simple, plug-and-play operation. This photoreceiver is ideal for applications requiring high sensitivity and high-speed balanced detection.
Detector TypeWavelength RangeBandwidthConfiguration1 datasheet50-100 GHz Fiber Optical Amplified Detector / Receiver SM28, Analog / Digital
The HPRM is a turnkey high-speed photoreceiver engineered for advanced analog and digital applications. It integrates a high-speed photodetector with a broadband RF amplifier to achieve an output power of 10 dBm. With its high conversion gain and low input-referred noise, the HPRM delivers exceptional linearity and precision. The RF output utilizes a 1 mm male connector. The unit includes a pluggable low-noise power supply, ensuring simple, reliable plug-and-play operation. The detector is prone to damage if the applied optical power exceeds the maximum rating; therefore, units damaged by overpower cannot be returned. One example is the use of an optical amplifier, such as an EDFA, which can produce power surges even when the average power is low. No TIA integrated, an external RF amplifier is recommended.
Detector TypeWavelength RangeBandwidthCoupling1 datasheet8 GHz Fiber Optical Amplified Detector / Receiver
The FRXM Photoreceiver is designed for high-speed and high sensitivity analog and digital applications, featuring a high bandwidth PIN photodiode and a linear and low noise preamplifier. The module incorporates a highly stable optical coupling system. The RF output is differential, utilizing dual “+” and “−” SMA connectors, which reduces susceptibility to external noise and electromagnetic interference (EMI) while providing high common-mode rejection for superior signal integrity. Alternatively, either connector can be used as a single-ended output relative to ground, though without the advantages of differential operation. The FRXM includes a low-noise power supply for simple, plug-and-play operation.
Detector TypeWavelength RangeBandwidthModule1 datasheet
