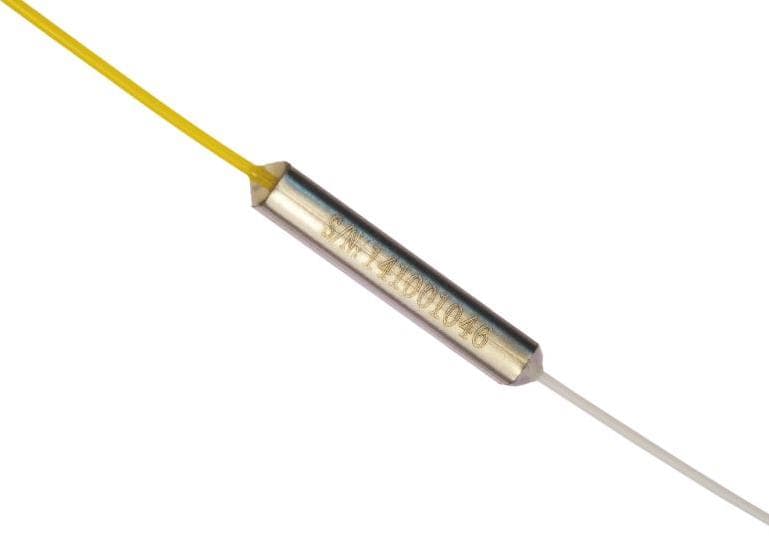

In-line Optical Power Tap Monitor (Straight Version) (Copy)
Our ILPM Series Fiber Optic Tap Power Monitors are used for in-line power measurement and precision power control. It is based on a patent-pending design that taps light without bending and grooving fiber, or using lenses and optical coatings. This novel power monitor provides exceptional industrial performance in ultra-low loss, low polarization and wavelength dependence, high directivity, variable tap ratios, as well as low cost and high reliability. The continuous fiber device is particularly suited for adapting to various types of fiber and for high power handling. This power monitor has a miniature ceramic package that houses a stable optical tap and PIN photodiode, as well as GR-1209 and GR-1201 compliance qualification.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Part Number: ILPM-005111133
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare In-line Optical Power Tap Monitor (Straight Version) (Copy) with the closest available models in the Fiber Coupled Detectors family. Confirm option-dependent values on the final configuration before ordering.

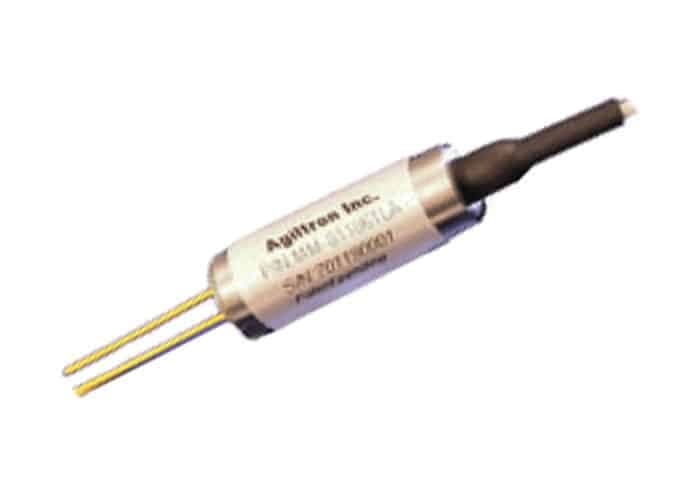

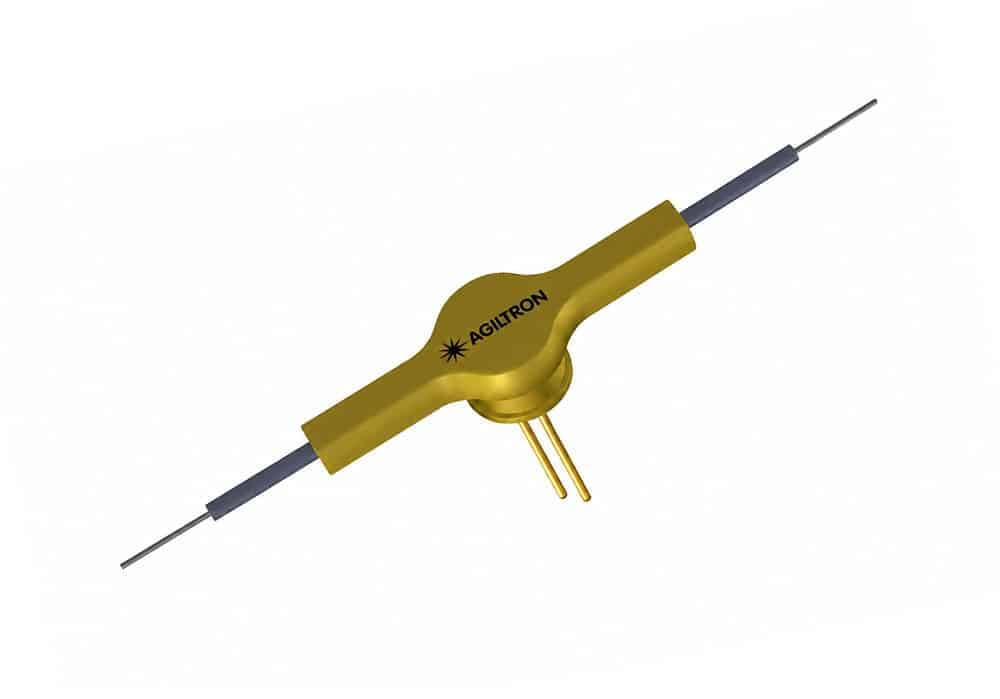

| Selection parameter | In-line Optical Power Tap Monitor (Straight Version) (Copy) (current) | High Speed Fiber Coupled InGaAs PIN Photodiode 10GHz, 25GHz | Inline No-Gap Tap Power Monitor |
|---|---|---|---|
| Wavelength range | Confirm for this model | 1000 - 1620 | 1550, 350, 450, 530, 850, 1060, 1310, 650, 2000, 750, 950 |
| Optical performance | Confirm for this model | Confirm for this model | ~0.3 / ~0.3 / ~0.3 / ~0.3 / ~0.3 / ~0.3 / ~0.3 / ~0.3 |
| Fiber type | Confirm for this model | SM28, PM1550, 50/125 | SMF28e, SM400, SM450, SM600, Hi780, Hi1060, SM1950, MM 50/125μm, MM 62.5μm, MM 105/125μm, SM850, MM200 μm, MM300 μm, MM400 μm, MM600 μm, MM800 μm, MM 1 mm, PM250, PM400, PM460, PM630, PM780, PM850, PM980, PM1550, PM1950 |
| Connector / control | Confirm for this model | None, FC/APC, Special | None, FC/PC, FC/APC, SMA, Special |
