Wind-tunnel aerodynamics
Illuminate a seeded plane to study wakes, boundary layers and flow around models. Specify field of view and velocity before choosing exposure and pulse timing.
9 models · 3 series

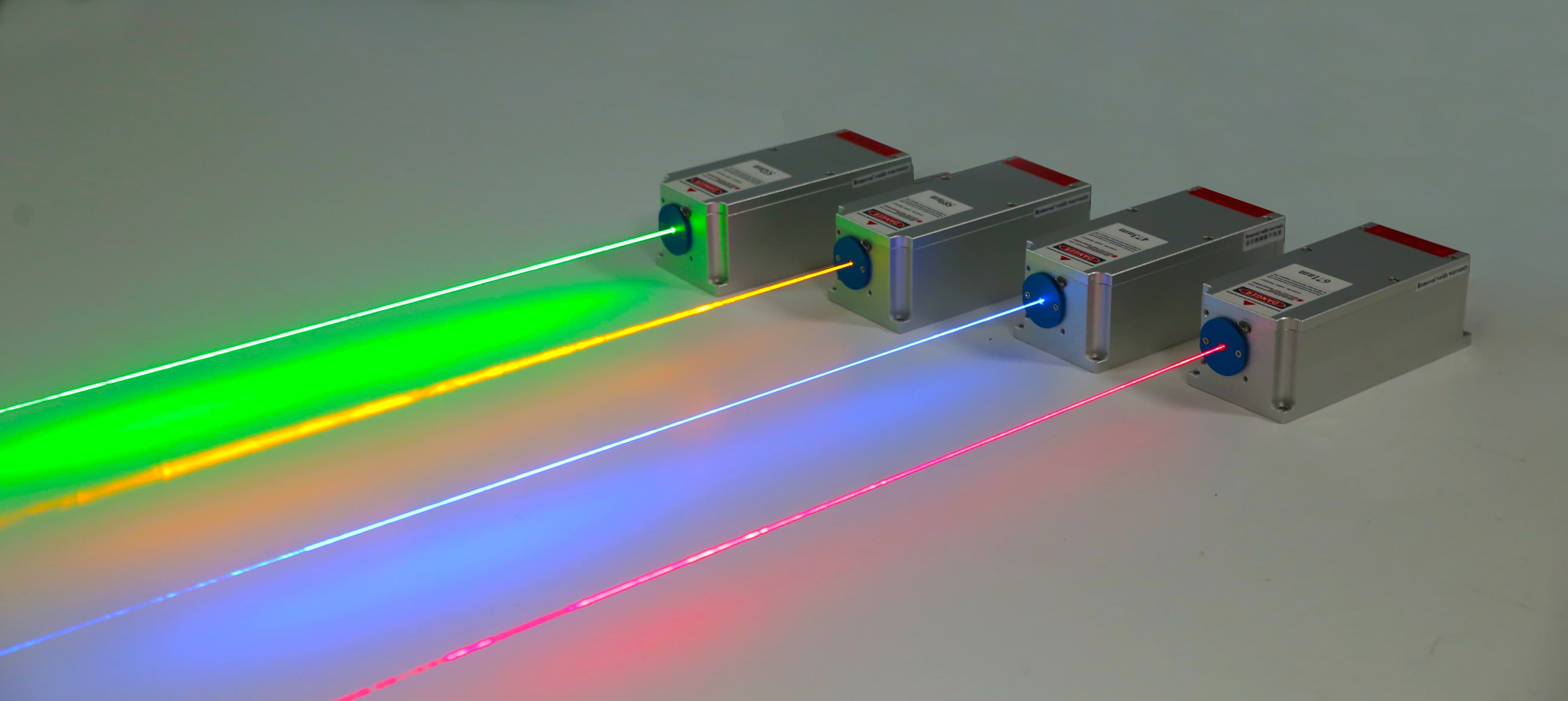

CW 532 nm illumination
3 modelsLamp-pumped Q-switched 532 nm
3 models| Model | Wavelength | Pulse energy | Repetition rate | Pulse width | Cooling | |
|---|---|---|---|---|---|---|
| LPS-532-A | 532 nm | 20–100 mJ | 1–10 Hz; single shot optional | <12 ns / <10 ns, depending on energy | Closed-loop liquid cooling | Datasheet |
| LPS-532-S | 532 nm | 30–150 mJ | 1–10 Hz; ≤20 Hz optional | <10 ns / <8 ns, depending on energy | Water cooled | Datasheet |
| LPS-532-L | 532 nm | 150–450 mJ | 1–10 Hz; ≤20 Hz optional | <10 ns / <8 ns, depending on energy | Water cooled | Datasheet |
Diode-pumped Q-switched 532 nm
3 models| Model | Wavelength | Pulse energy | Repetition rate | Pulse width | Cooling | |
|---|---|---|---|---|---|---|
| DPS-532-A | 532 nm | 1–5 mJ | 1–10 Hz (adjustable) | <10 ns | Conduction cooled | Datasheet |
| DPS-532-B | 532 nm | 5–15 mJ | 1–10 Hz (adjustable) | <10 ns | Air cooled | Datasheet |
| DPS-532-Q | 532 nm | 1–20 mJ at 1–100 Hz; 1–5 mJ at 1–1000 Hz | 1–100 Hz / 1–1000 Hz, depending on variant | <10–12 ns, depending on configuration | Water cooled | Datasheet |
Complete the optical path
PIV accessories
Choose sheet-forming optics, timing, beam delivery, remote operation and wavelength-specific eyewear with the laser. Confirm arm coatings and pulse-energy handling for the selected wavelength; choose goggles by the required protection rating and operating mode.
PIV Laser Light Sheet
Form a light sheet for planar particle image velocimetry and flow visualization. Adjustable working distance and a choice of fan angles let the optics be configured around the test section, incident beam and required sheet thickness.
Specifications & selection →
PIV Synchronizing System
Coordinate laser output and camera acquisition with a PIV timing controller. Six pulse outputs share a frequency and pulse width, with independently adjustable delays. Qualify trigger levels, timing resolution and jitter against the laser and camera before specifying the controller.
Specifications & selection →
Articulated Arm
Deliver CO₂ or YAG laser energy from the source to a process head through a counterbalanced articulated arm. Choose spring or weight balancing, joint configuration and focusing optics for the working envelope.
Specifications & selection →
PIV Remote Control System
Operate a compatible PIV laser setup through a compact remote-control interface. Select the controller with the exact laser, power supply, required operating functions and interlock arrangement.
Specifications & selection →

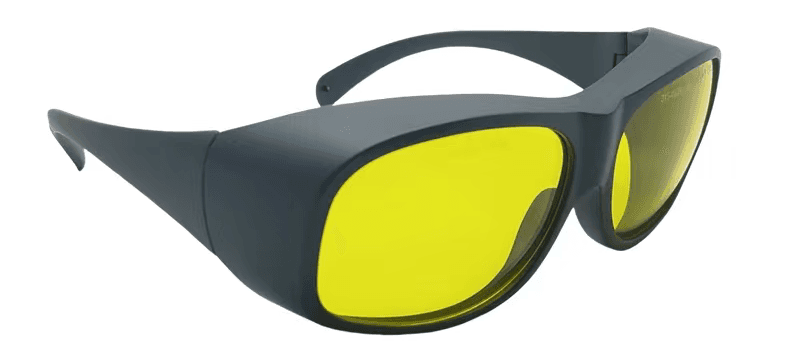

Laser Goggles
Compare laser eyewear by model, visible light transmission, optical density and the listed protection rating at each wavelength. Match the eyewear to the exact laser and operating mode before ordering.
Specifications & selection →Flow-measurement applications
Water-tunnel hydrodynamics
Map flow around submerged models, channels and propellers. Include window transmission, reflections and the sheet position in the optical layout.
Jets, sprays & mixing
Resolve particle displacement across a jet or mixing region. Match illumination energy, sheet thickness and image-pair separation to the measurement scale.
Microfluidic flow research
Qualify microscope illumination and detector sensitivity for small channels. Micro-PIV can use volume illumination rather than the sheet geometry used in larger test sections.
Not sure which model fits?
Send the physics — wavelength, mode, power or energy, linewidth or pulse width, delivery, control and safety — and we qualify the source.
