Camera finder

Build a camera shortlist

Search: IMX585. Refine the results using specifications.

731

Camera models

Cooled

232

Global shutter

Matched

Results

25 cameras matched

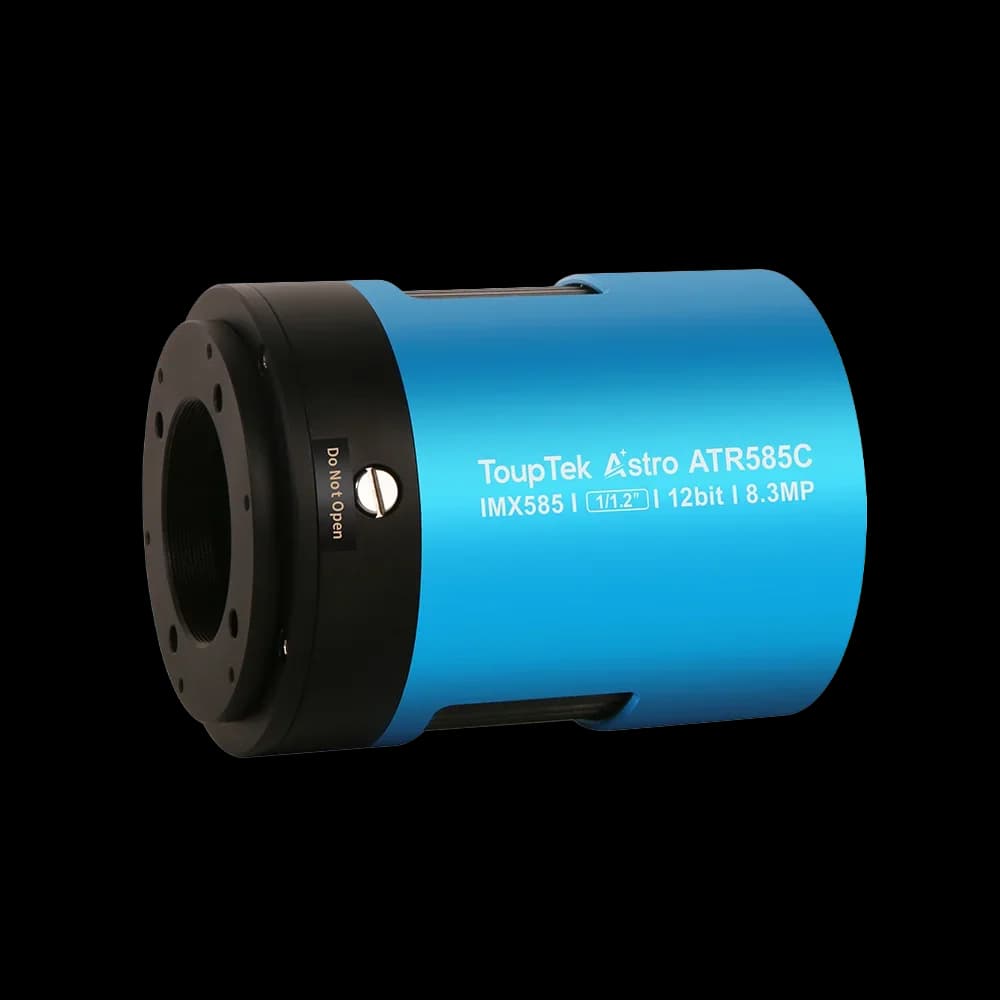

Astronomy CameraColorCooled

ATR585C

Astronomy Camera (ATR DSO cooled)

Sensor: Sony IMX585 color CMOS — STARVIS 2 back-illuminated color CMOS
Resolution: 8.3 MP (3840 × 2160)
Pixel size: 2.9 µm
Frame rate: 47 fps
Mount: M42 / M54 astronomy adapters
Interface: USB 3.0
Sensor format: 1/1.2-inch
Sensor size: 1/1.2-inch, 11.2 × 6.3 mm
Band: 380–690 nm
Shutter: Rolling

Open page ↗

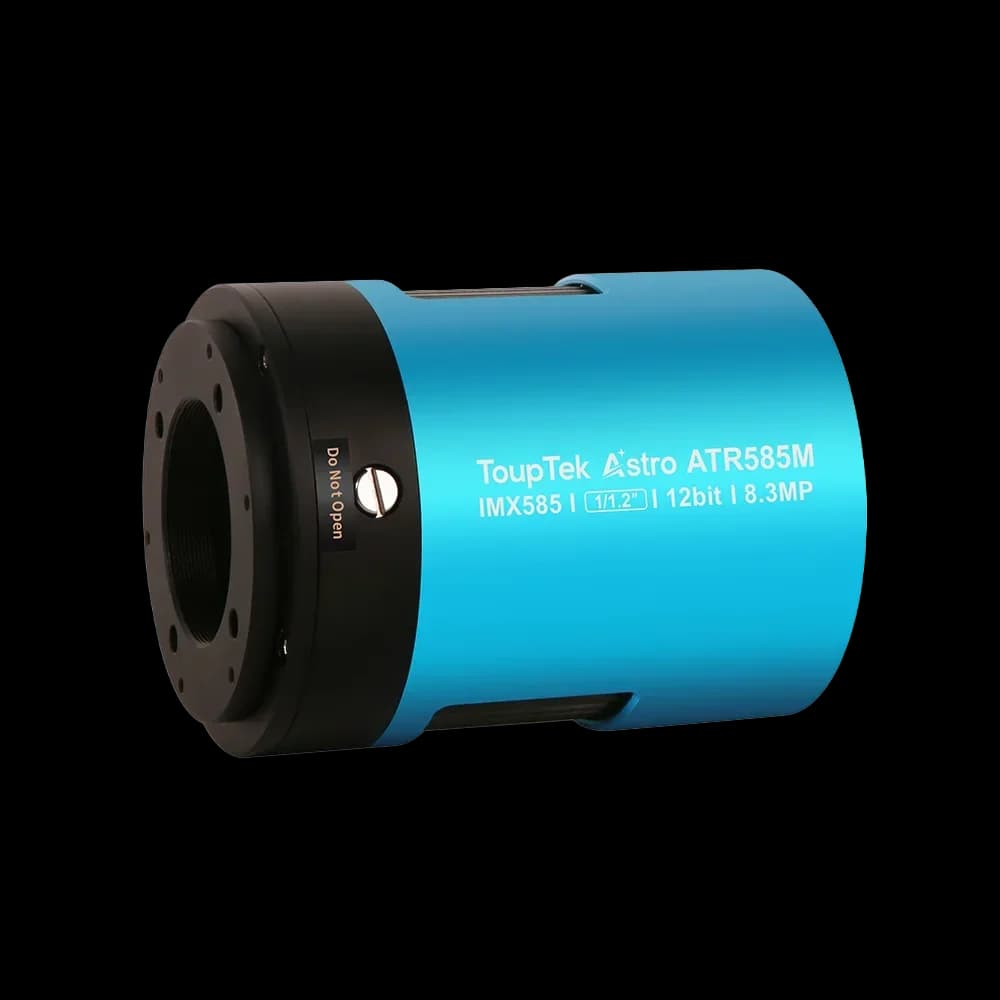

Astronomy CameraMonochromeCooled

ATR585M

Astronomy Camera (ATR DSO cooled)

Sensor: Sony IMX585 monochrome CMOS — STARVIS 2 back-illuminated monochrome CMOS
Resolution: 8.3 MP (3840 × 2160)
Pixel size: 2.9 µm
Frame rate: 47 fps
Mount: M42 / M54 astronomy adapters
Interface: USB 3.0
Sensor format: 1/1.2-inch
Sensor size: 1/1.2-inch, 11.2 × 6.3 mm
Band: 380–1100 nm
Shutter: Rolling

Open page ↗

Low-Light / Cooled CameraMonochrome

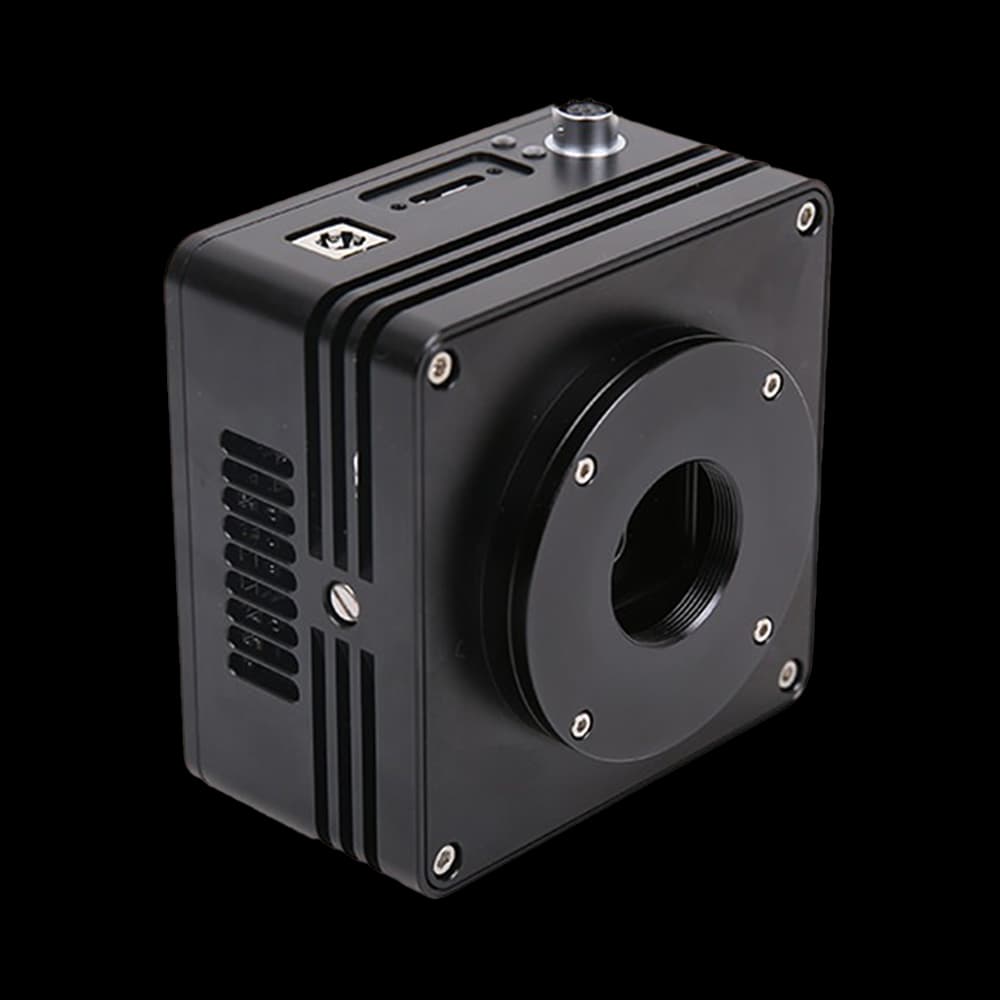

CTR3CMOS08300KMA

Cooled IMX sensor cameras (CTR3CMOS)

Sensor: Sony IMX585
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColor

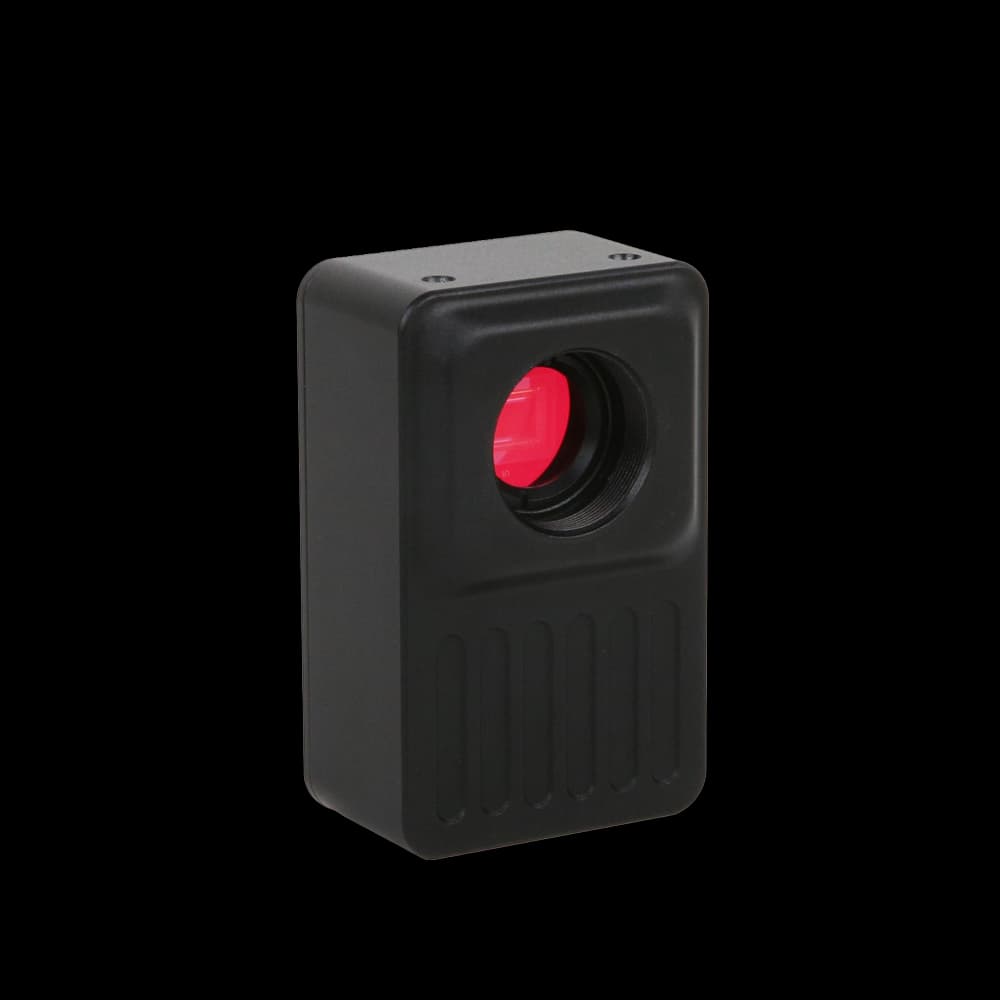

CXCAM1080P8MPB

Type-C monitor / USB / Wi-Fi cameras (CXCAM)

Sensor: Sony IMX585 (Color)
Resolution: 8 MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080
Mount: C-mount
Interface: Type-C Monitor, USB Video, Wi-Fi
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14 × 6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Microscopy CameraColor

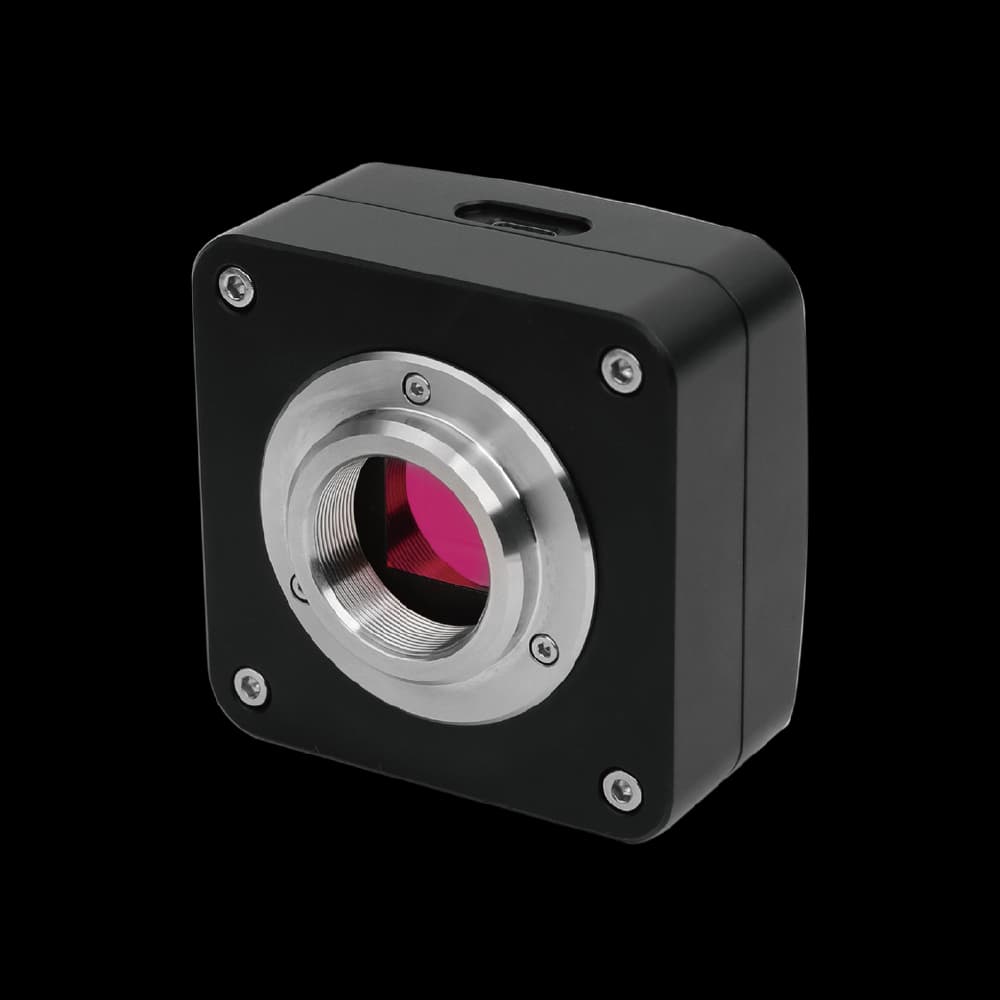

E10ISPM08300KPA

USB3.2 Gen2 color cameras (E10ISPM)

Sensor: IMX585 (C,RS)
Resolution: 8.3M (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 88 fps @ 3840×2160(8-bit); 60 fps @ 3840×2160(12-bit); 60 fps @ 1920×1080(8-bit); 60 fps @ 1920×1080(12-bit)
Mount: C-mount
Interface: USB3.2 Gen2 (Type-C)
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Microscopy CameraColor

E3ISPM08300KPD

USB3.0 color CMOS cameras (E3ISPM)

Sensor: IMX585 (C)
Resolution: 8.3M (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 60 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Astronomy CameraColor

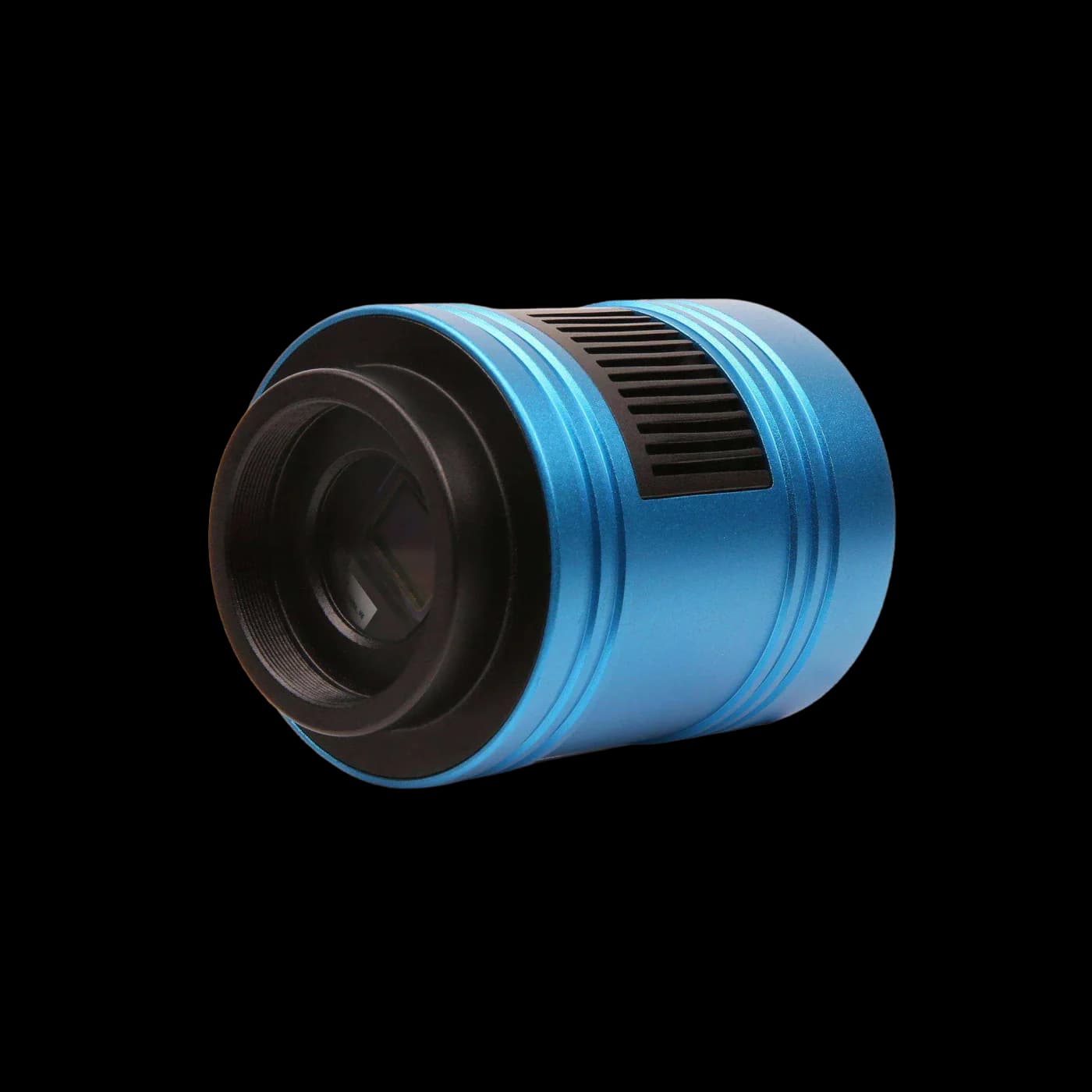

G3CMOS08300KPA

Astronomy Camera (G3CMOS planetary)

Sensor: Sony IMX585 color CMOS — STARVIS 2 back-illuminated color CMOS
Resolution: 8.3 MP (3840 × 2160)
Pixel size: 2.9 µm
Frame rate: 47 fps
Mount: Astronomy adapter / telescope interface
Interface: USB 3.0
Sensor format: 1/1.2-inch
Sensor size: 1/1.2-inch, 11.2 × 6.3 mm
Band: 380–690 nm
Shutter: Rolling

Open page ↗

Industrial / Analytical CameraMonochrome

I3CMOS08300KMB

USB3.0 / GigE industrial CMOS cameras (I3CMOS)

Sensor: Sony IMX585-AAMJ1-C
Resolution: 8.3 MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Industrial / Analytical CameraColor

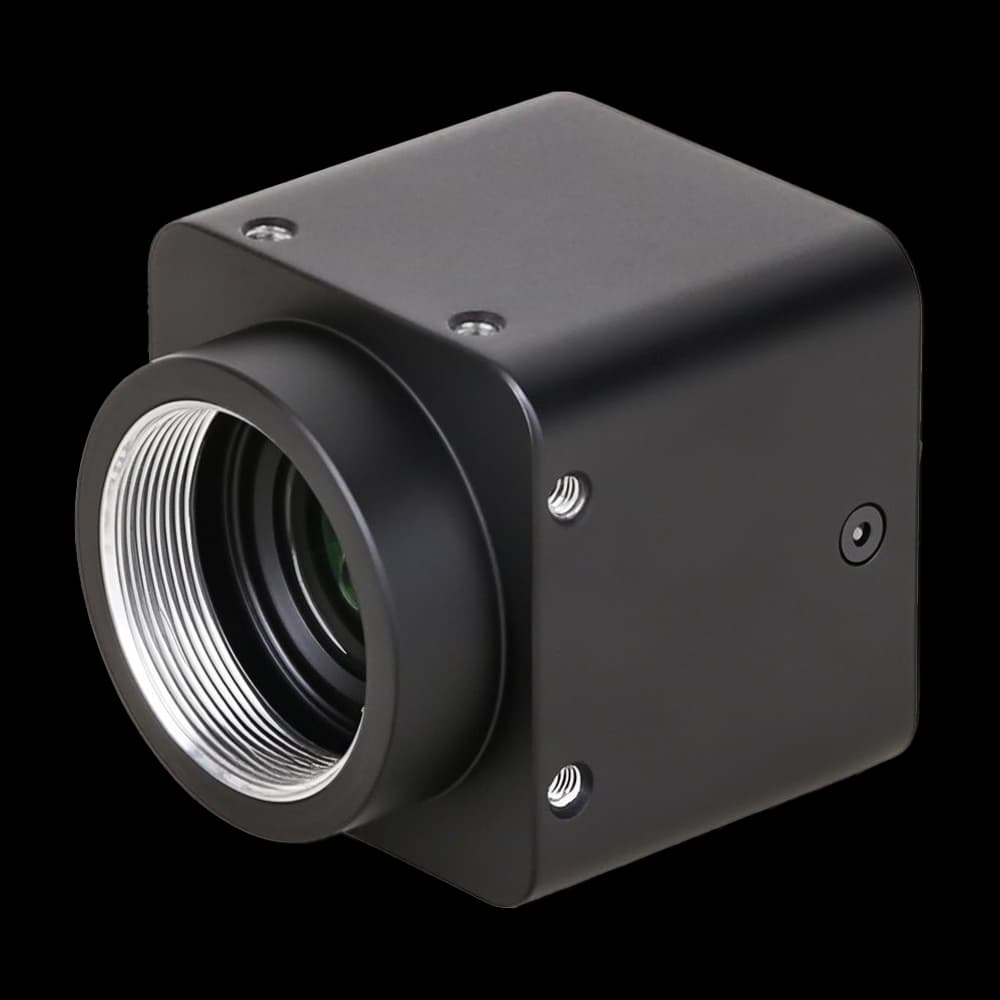

I3ISPM08300KPB

USB3.0 / GigE color industrial cameras (I3ISPM)

Sensor: Sony IMX585-AAQJ1-C
Resolution: 8.3 MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Low-Light & Cooled CameraMonochromeCooled

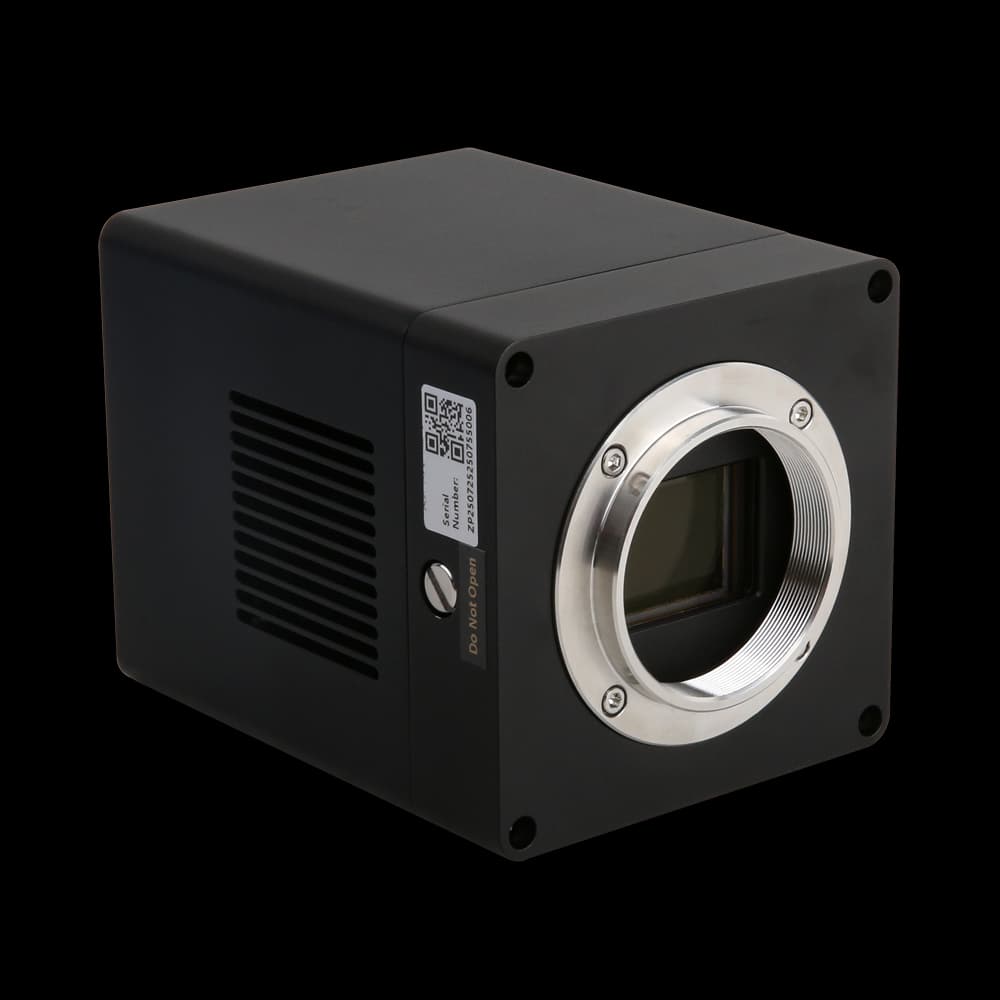

ITR3CMOS08300KMA

Cooled CMOS cameras (ITR3CMOS)

Sensor: Sony IMX585-AAMJ1-C
Resolution: 8.3 MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 44.4 fps @ 3840×2160; 59.2 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0 (USB3.1 Gen1)
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (12.78 mm)
Shutter: Rolling

Open page ↗

Low-Light / Cooled CameraColor

ITR3CMOS08300KPA

Cooled CMOS cameras (ITR3CMOS)

Sensor: Sony IMX585-AAQJ1-C
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Industrial / Analytical CameraMonochrome

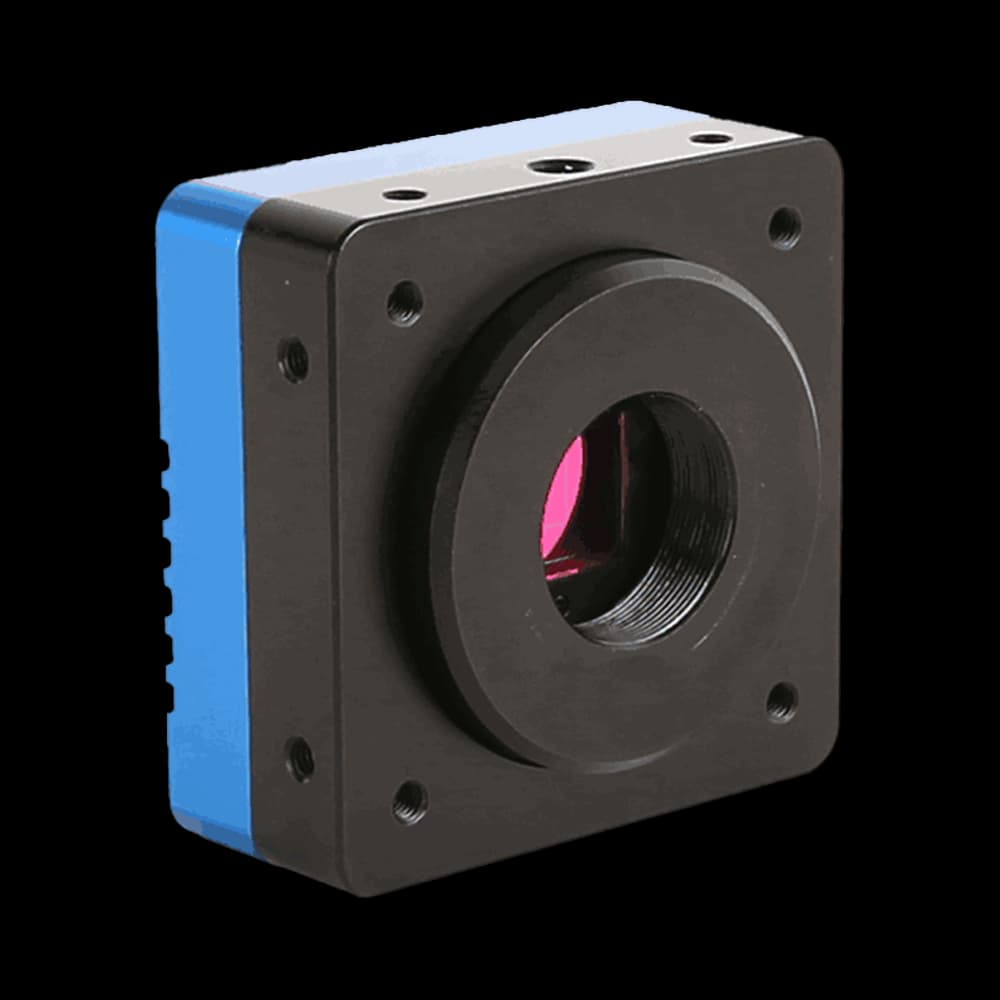

IUA8300KMB

USB3.0 / 10GigE industrial sensor configurations (IUA)

Sensor: Sony IMX585-AAMJ1-C
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0 (USB3.1 GEN1)
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Industrial / Analytical CameraColor

IUA8300KPB

USB3.0 / 10GigE industrial sensor configurations (IUA)

Sensor: Sony IMX585-AAQJ1-C
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0 (USB3.1 GEN1)
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Low-Light / Cooled CameraMonochromeCooled

MTR3CMOS08300KMA

Cooled CMOS cameras with UV sensor variants (MTR3CMOS)

Sensor: IMX585 (M, RS)
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 24 fps @ 3840×2160
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Low-Light / Cooled CameraColorCooled

MTR3CMOS08300KPA

Cooled CMOS cameras with UV sensor variants (MTR3CMOS)

Sensor: IMX585 (C, RS)
Resolution: 8.3MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 45 fps @ 3840×2160; 70 fps @ 1920×1080
Mount: C-mount
Interface: USB3.0
Sensor format: 1/1.2-inch
Sensor size: 11.14 mm × 6.26 mm
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-interface cameraColor

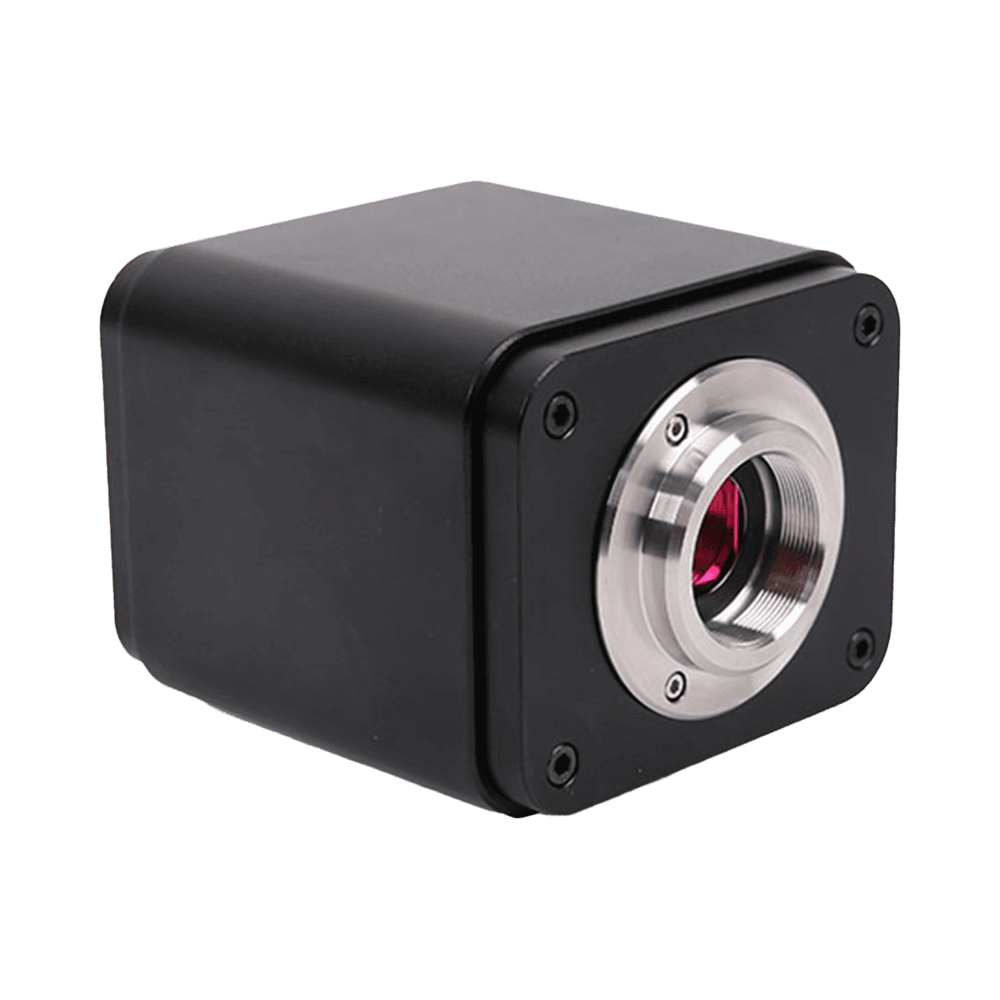

SCAM4K8MPB

4K HDMI / USB / Wi-Fi cameras (SCAM4K)

Sensor: Sony IMX585(C)
Resolution: 8MP (3840×2160)
Pixel size: 2.9 μm × 2.9 μm
Frame rate: HDMI: 30 fps @ 4K/1080P; Wi-Fi: 30 fps @ 1920×1080; USB3.0: 30 fps @ 3840×2160
Mount: C-mount
Interface: HDMI1.4 USB3.0 Wi-Fi
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColor

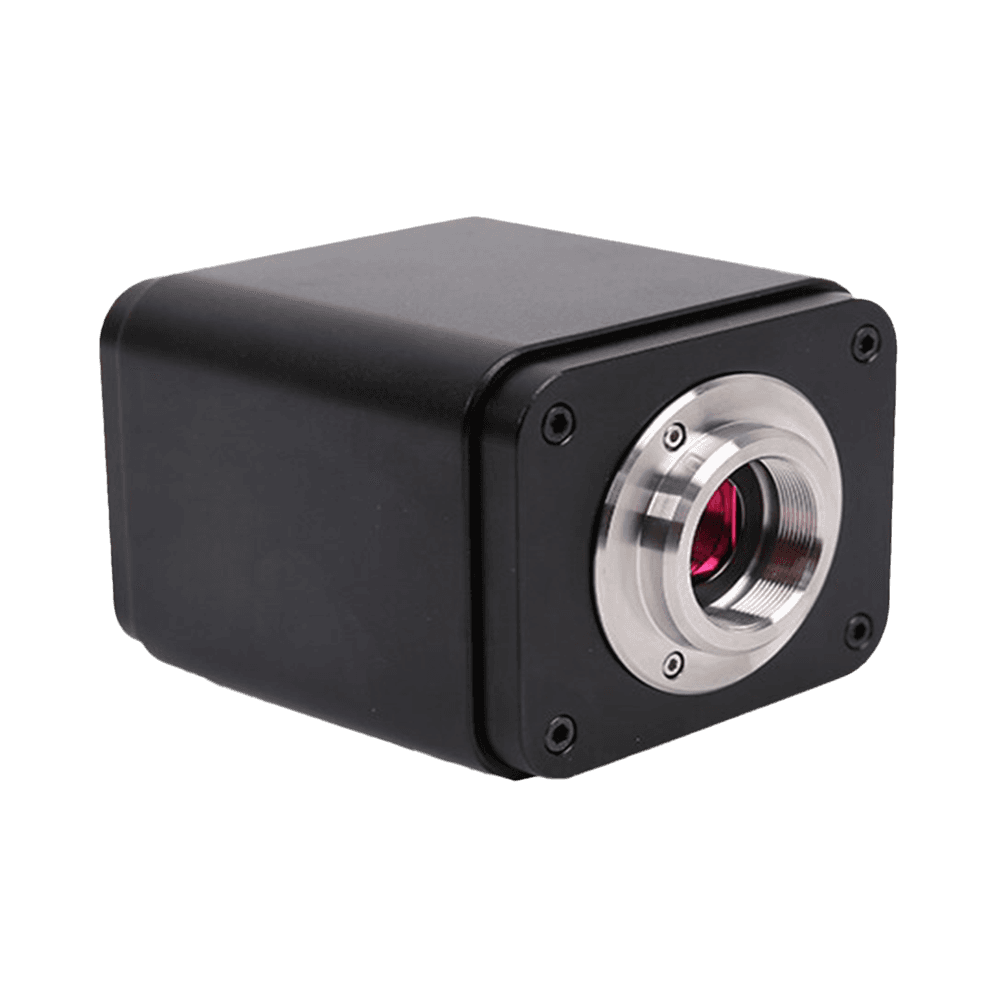

X5CAM4K8MPB

Microscope teaching cameras — mono & color (X5CAM4K)

Sensor: Sony IMX585(C)
Resolution: 8MP
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 60 fps @ 3840×2160
Mount: C mount
Interface: HDMI, NETWORK, USB3, WiFi
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColorCooled

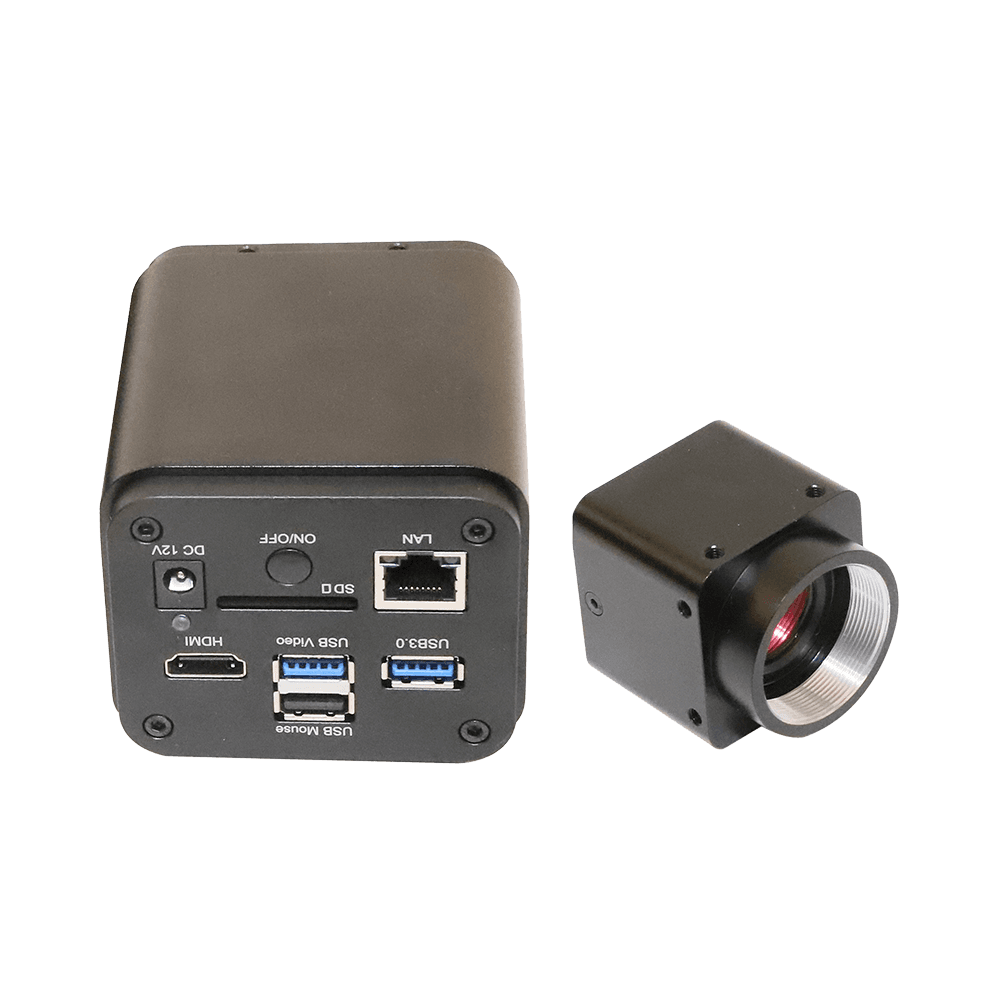

X5CAM4K8MPB_MR

Separated 4K multi-output cameras (X5CAM4K_MR)

Sensor: Sony IMX585(C)
Resolution: 8MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160
Mount: C mount
Interface: HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColor

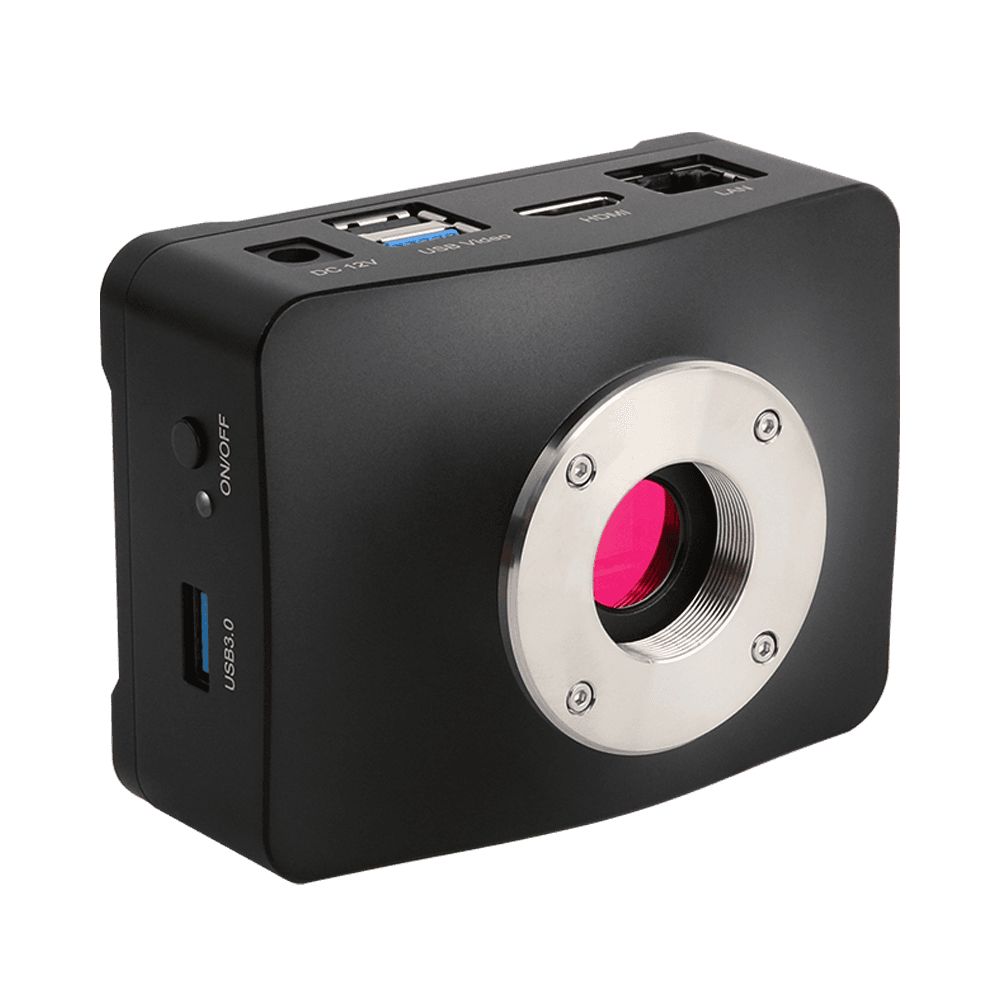

X7CAM4K8MPB

8–16 MP HDMI multi-output cameras (X7CAM4K)

Sensor: Sony IMX585(C)
Resolution: 8MP
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 75 fps @ 3840×2160
Mount: C mount
Interface: HDMI, USB3, WiFi, LAN
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColor

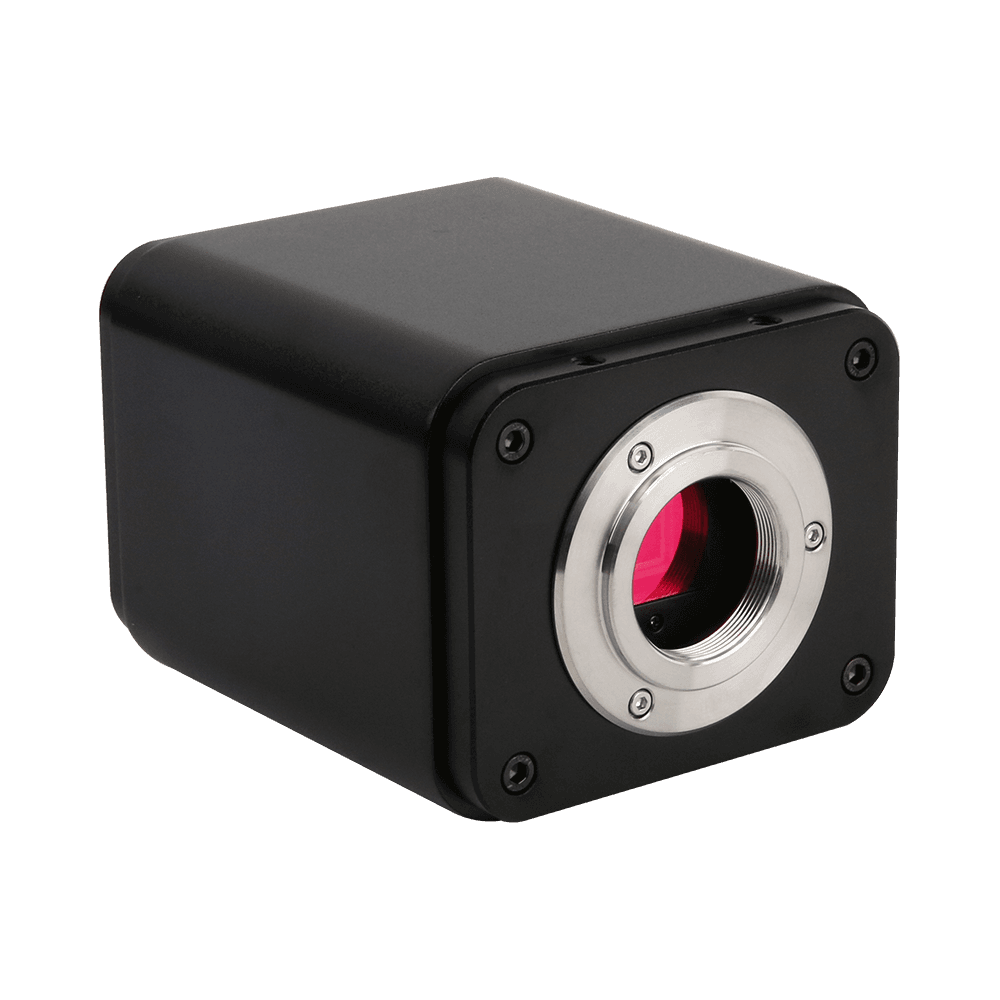

X8CAM4K8MPB

HDMI / USB / LAN / Wi-Fi cameras (X8CAM4K)

Sensor: Sony IMX585 (C)
Resolution: 8 MP (3840 × 2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 90 fps@3840×2160
Mount: C-mount
Interface: HDMI2.0, USB3.0, LAN, Wi-Fi
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14 × 6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Multi-Interface CameraColorCooled

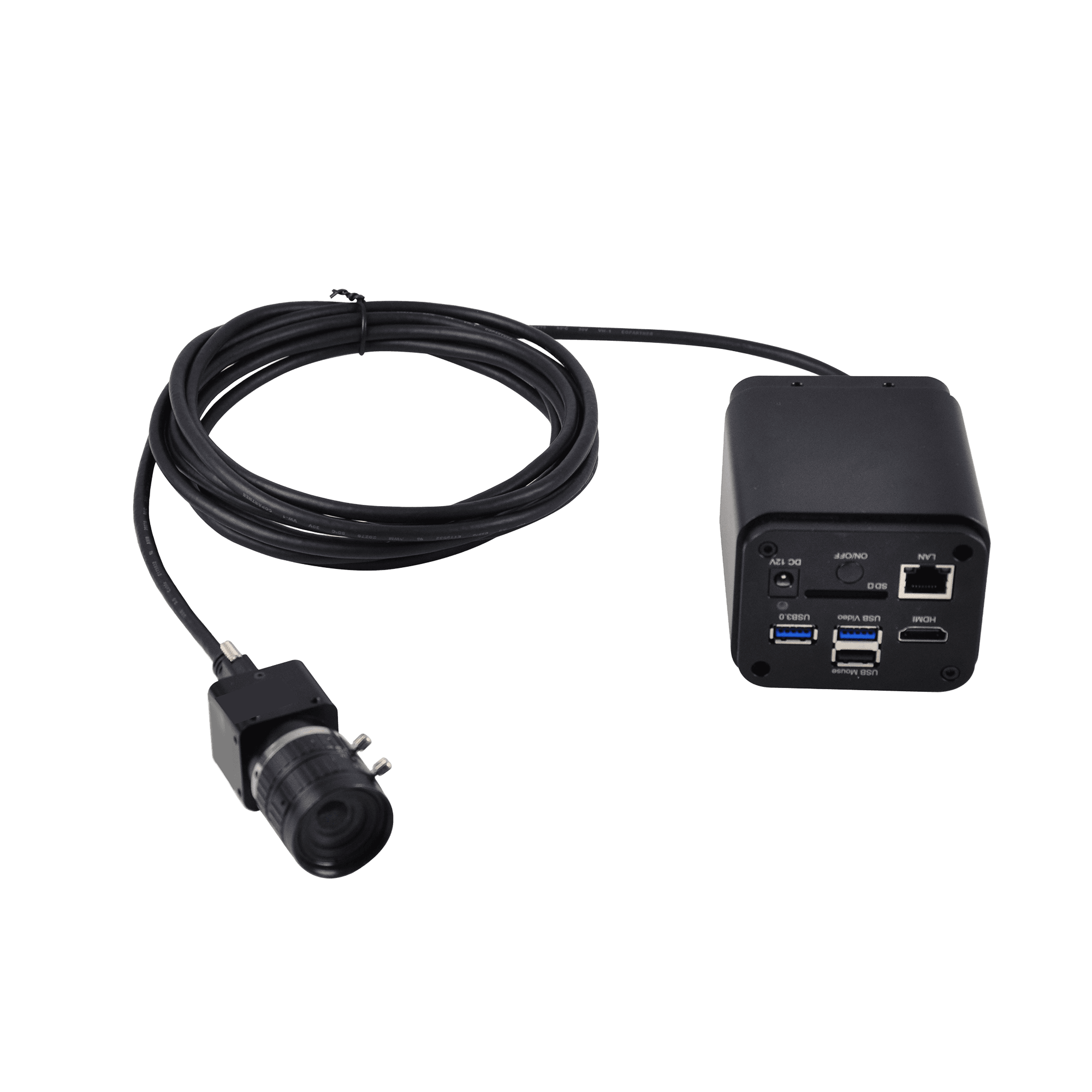

X8CAM4K8MPB_MR

Separated 4K multi-output cameras (X8CAM4K_MR)

Sensor: Sony IMX585(C)
Resolution: 8 MP (3840 × 2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: Model-specific
Mount: C mount
Interface: HDMI2.0 / USB3.0 / NETWORK / SD / USB Video
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14 × 6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

Autofocus CameraColor

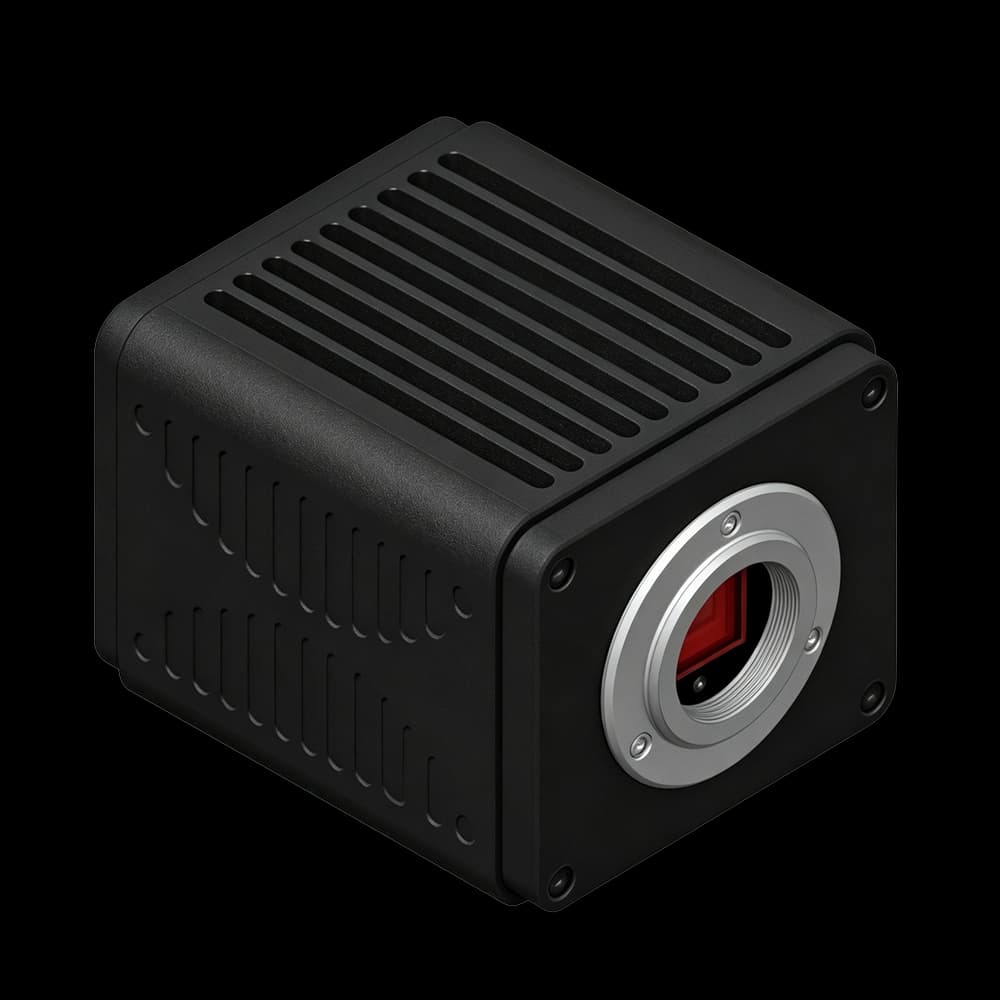

X8FCAM4K8MPB

C-mount / EF-mount autofocus cameras (X8FCAM4K)

Sensor: Sony IMX585 (C)
Resolution: 8 MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: 90 fps @ 3840×2160
Mount: C-mount
Interface: HDMI2.0; USB3.0; NETWORK
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)

Open page ↗Technical document

Multi-Interface CameraColor

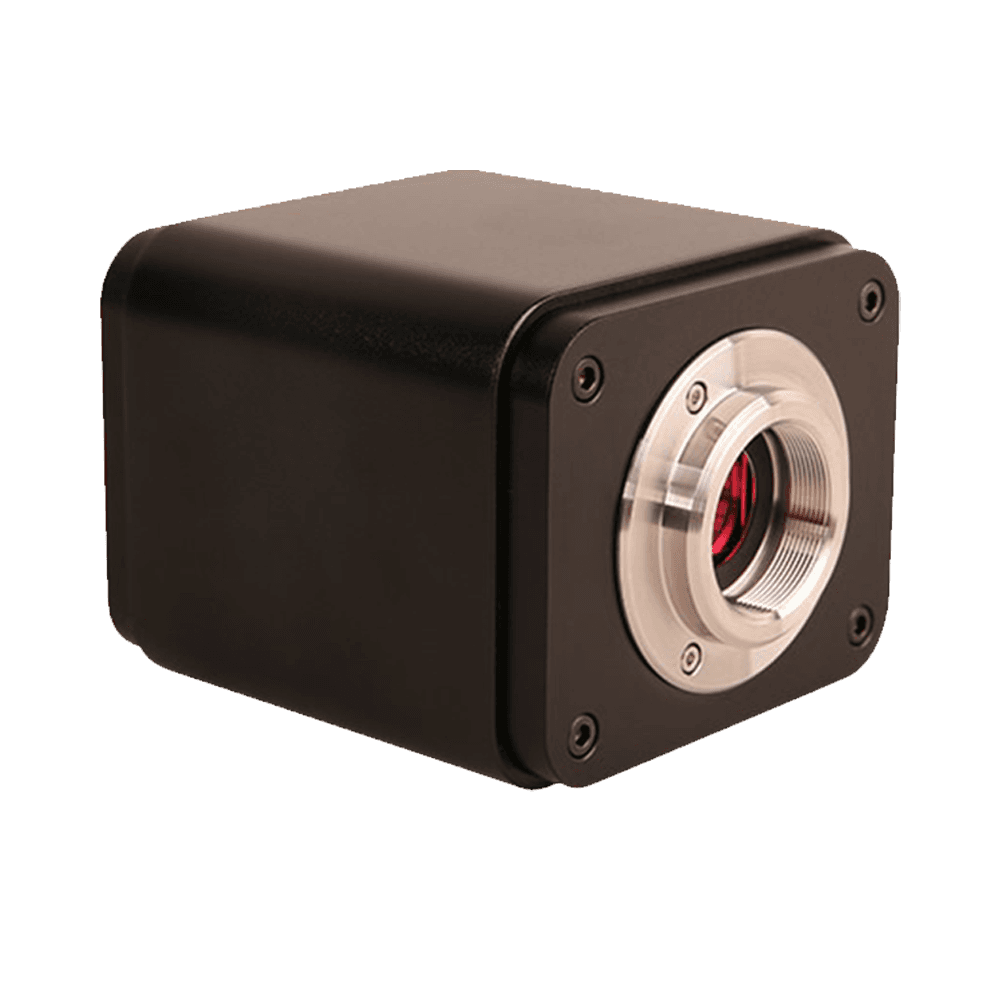

XCAMLITE4K8MPD

4K HDMI / USB cameras (XCAMLITE4K)

Sensor: Sony IMX585(C) 1/1.2" (11.14×6.26 mm)
Resolution: 8MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: HDMI: 30 fps @ 4K/1080P; USB: 20 fps @ 3840×2160
Mount: C-mount
Interface: HDMI1.4 USB2.0
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)

Open page ↗Datasheet

Multi-Interface CameraColorCooled

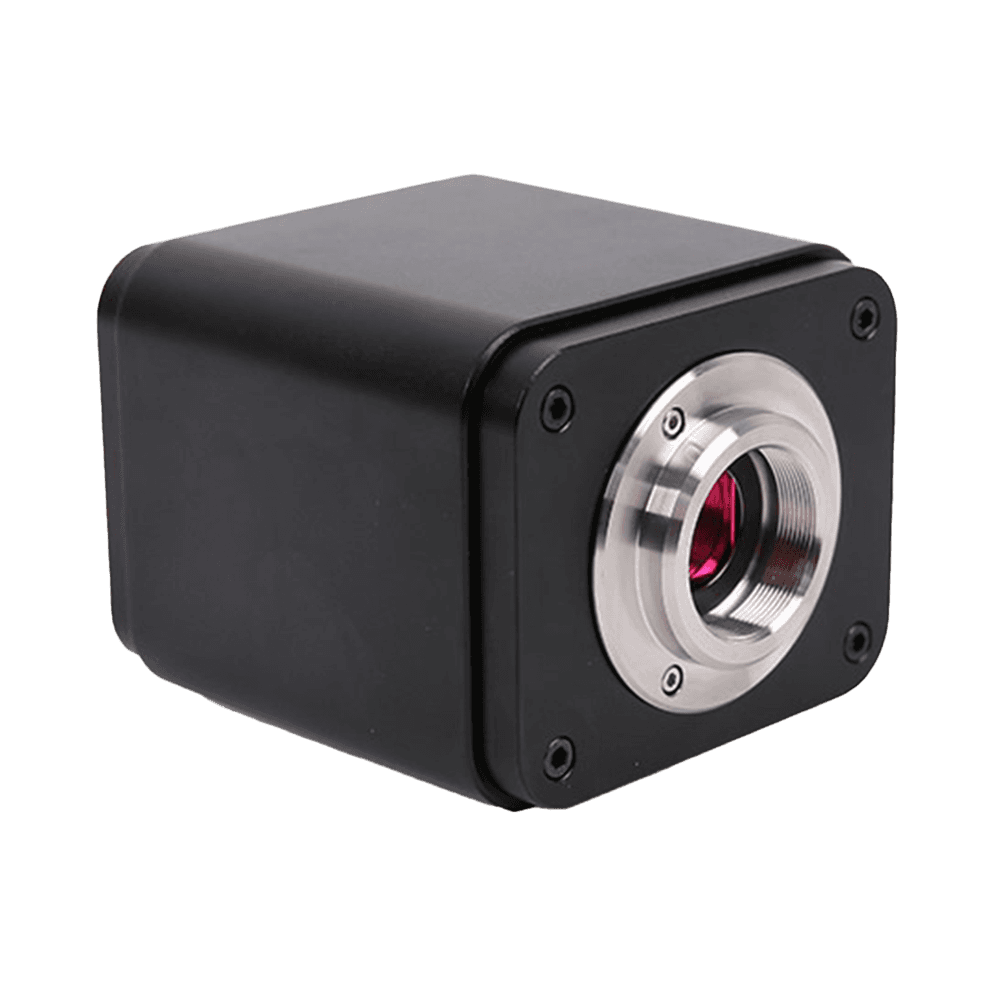

XCAMTOP4K8MPD

4K HDMI / LAN / Wi-Fi cameras (XCAMTOP4K)

Sensor: Sony IMX585(C)
Resolution: 8MP (3840×2160)
Pixel size: 2.9 μm × 2.9 μm
Frame rate: 30 fps@3840×2160
Mount: C-mount
Interface: HDMI1.4, LAN, Wi-Fi, USB Video
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet

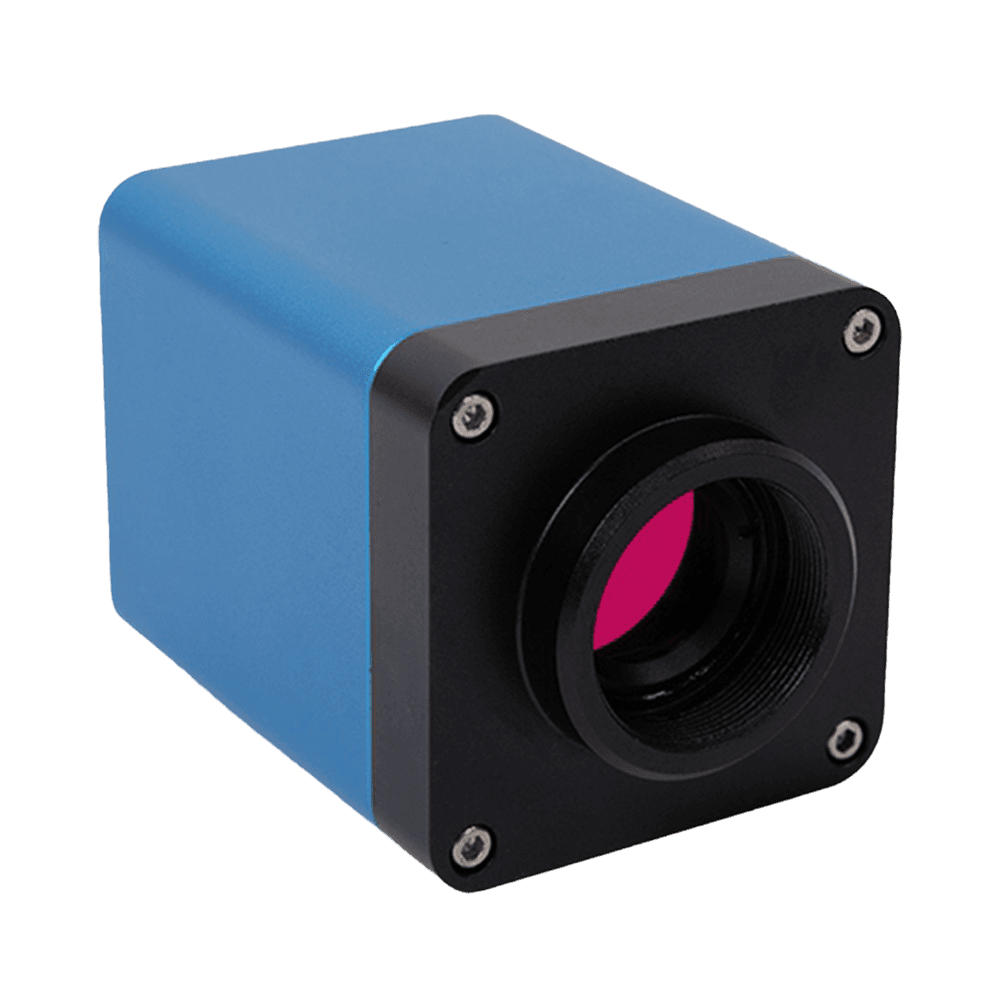

Multi-Interface CameraColor

XCAMTOP4K8MPD_MINI

Compact 4K HDMI / Wi-Fi cameras (XCAMTOP4K_MINI)

Sensor: Sony IMX585(C)
Resolution: 8MP (3840×2160)
Pixel size: 2.9 µm × 2.9 µm
Frame rate: HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160
Mount: C-mount
Interface: HDMI 1.4, USB Video, WiFi
Sensor format: 1/1.2-inch
Sensor size: 1/1.2" (11.14×6.26 mm)
Band: 380–700 nm (visible)
Shutter: Rolling

Open page ↗Datasheet
