Separated HDMI/NETWORK/USB Multi-Output Camera
X5CAM4K8MPB_MR Multi-Interface Output Camera with Sony IMX585(C) sensor, 8MP (3840×2160) for autofocus imaging.
Application context
X5CAM4K8MPB_MR: The Sony IMX585(C) sensor, 8MP (3840×2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
X5CAM4K8MPB_MR: The Sony IMX585(C) sensor, 8MP (3840×2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
21 specification rows
The X5CAM4K8MPB_MR is an intelligent imaging camera in the X5CAM4K_MR series, built around a Sony IMX585(C) sensor, 8MP (3840×2160) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160, a HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video interface. It suits separated hdmi/network/usb multi-output camera where reliable imaging performance and interface compatibility matter.
| Product Model | X5CAM4K8MPB_MR |
|---|---|
| Product Series | Separated HDMI/NETWORK/USB Multi-Output Camera |
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V/1A |
|---|---|

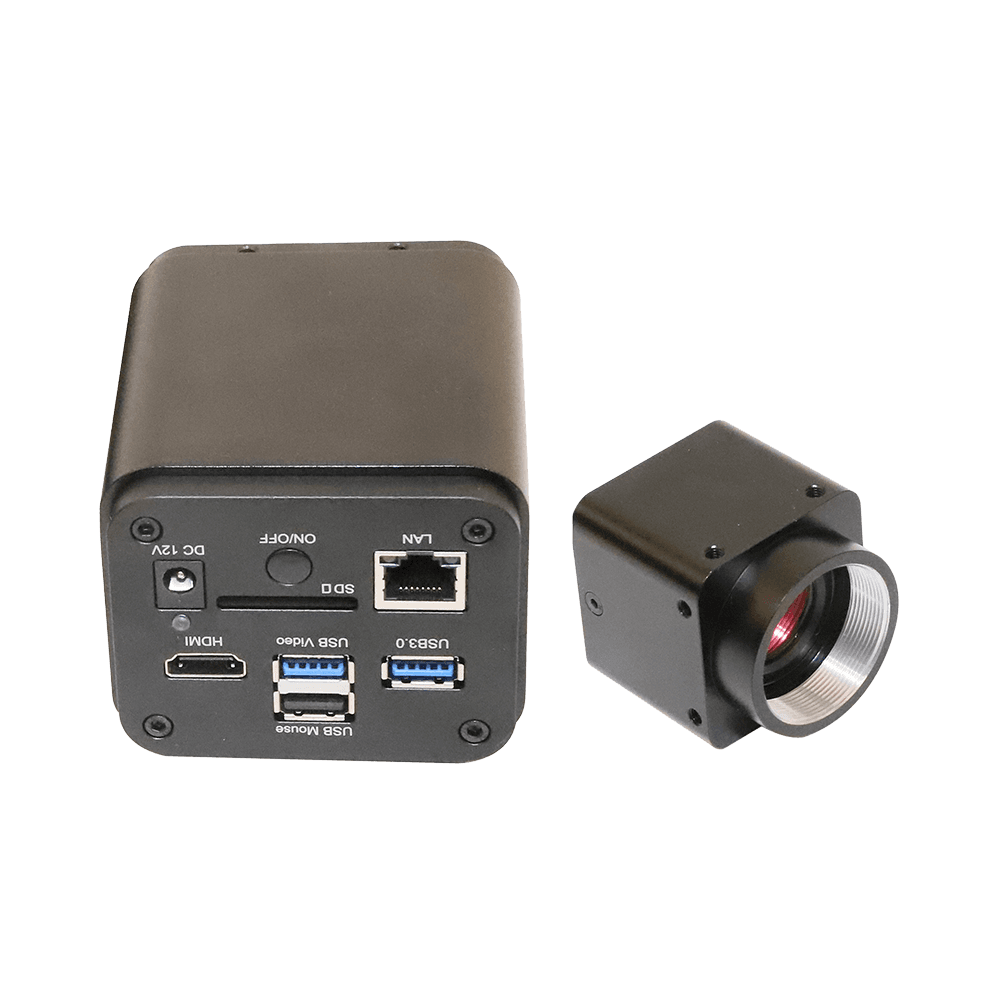

| Design | Separated design with main device and image acquisition sub-device |
| Weight | 2 kg |
| Operating/Storage Temperature | 10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C |
|---|---|
| Operating/Storage Humidity | Operating humidity: 30~80%RH, Storage humidity: 10~60%RH |
| OS Support | Windows XP/7/8/10/11, Linux, macOS 10.10+, Android 5.1+, iOS 11+ |
|---|---|
| Certification | CE, FCC |
System integration
Use these checks to connect X5CAM4K8MPB_MR to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX585(C) · Resolution: 8MP (3840×2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI2.0: 60 fps@3840×2160, USB3.0: 30 fps@3840×2160, NETWORK: 30 fps@3840×2160 · Interface: HDMI2.0, USB3.0, LAN, Wi-Fi, SD, USB Video. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare X5CAM4K8MPB_MR with the closest available models in the X5CAM4K_MR family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | X5CAM4K8MPB_MR (current) | X5CAM4K8MPA_MR |
|---|---|---|
| Sensor | Sony IMX585(C) | Sony IMX678(C) |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/1.2" (11.14×6.26 mm) | 1/1.8" (7.68×4.32 mm) |
| Pixel size / frame rate | 2.9 µm × 2.9 µm | 2.0 µm × 2.0 µm |
The IMX585 appears in 21 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the X5CAM4K8MPB_MR with other X5CAM4K_MR models and intelligent imaging cameras in the range.
