Scientific imaging
X8CAM4K8MPB_MR: The Sony IMX585(C) sensor, 8 MP (3840 × 2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging.

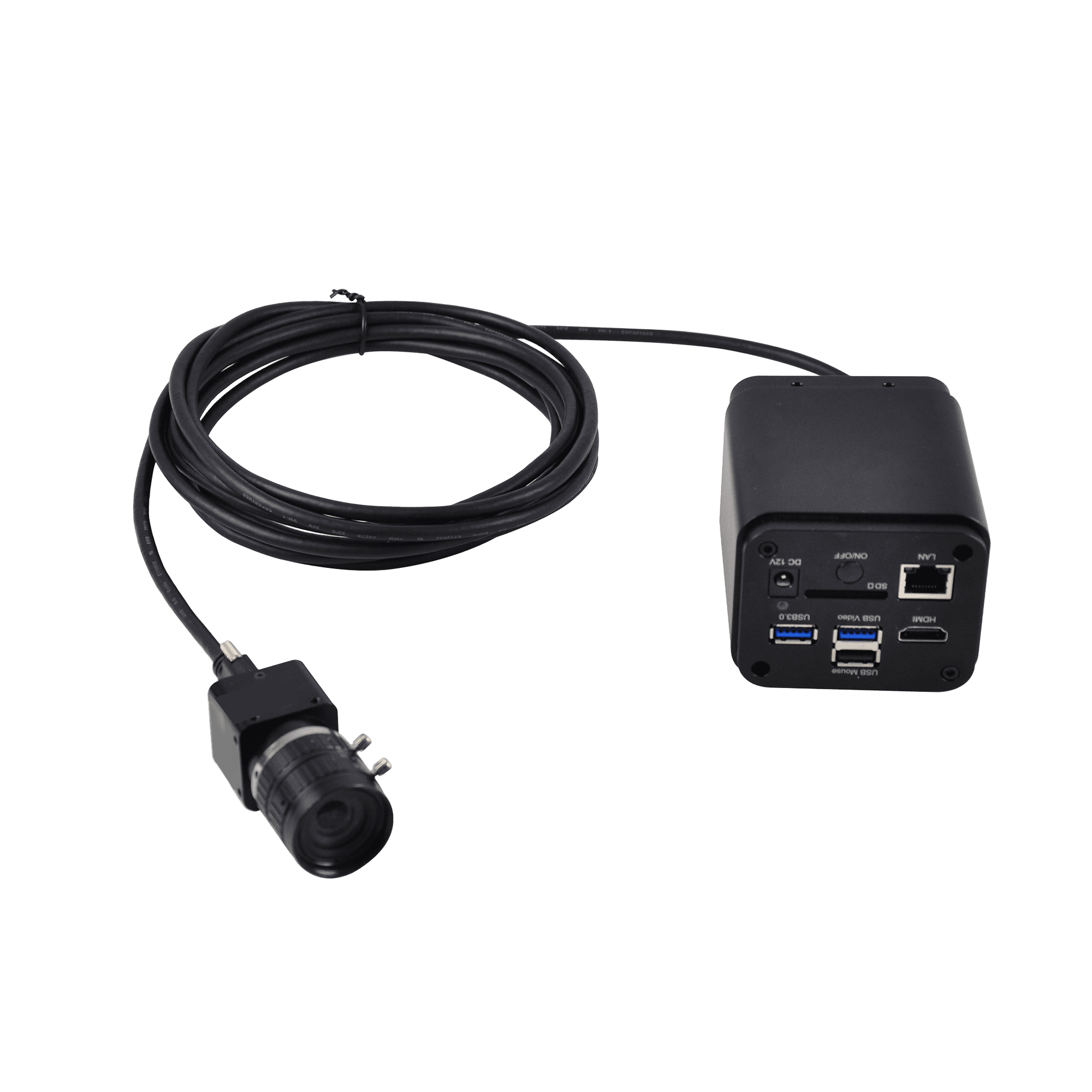

Separated HDMI/NETWORK/USB 4K Multi-Output Camera
X8CAM4K8MPB_MR
X8CAM4K8MPB_MR uses Sony IMX585(C) with 10 m screw-lock USB3.0 plus HDMI, network and USB output for long-distance 4K microscopy workflows.
- Sensor
- Sony IMX585(C)
- Resolution
- 8 MP (3840 × 2160)
- Pixel Size
- 2.9 µm × 2.9 µm
- Interface
- HDMI2.0 / USB3.0 / NETWORK / SD / USB Video
Application context
Why this design is used
Instrument integration
X8CAM4K8MPB_MR: The Sony IMX585(C) sensor, 8 MP (3840 × 2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration.
Specifications
X8CAM4K8MPB_MR
38 specification rows
The X8CAM4K8MPB_MR is an intelligent imaging camera in the X8CAM4K_MR series, built around a Sony IMX585(C) sensor, 8 MP (3840 × 2160) resolution, 2.9 µm × 2.9 µm pixels, a HDMI2.0 / USB3.0 / NETWORK / SD / USB Video interface. It suits separated hdmi/network/usb 4k multi-output camera where reliable imaging performance and interface compatibility matter.
Model Identity
| Product Model | X8CAM4K8MPB_MR |
|---|---|
| Product Series | Separated HDMI/NETWORK/USB 4K Multi-Output Camera |
Sensor Parameters
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14 × 6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8 MP (3840 × 2160) |
| G Sensitivity | 5970 mV with 1/30 s |
| Dark Signal | 0.13 mV with 1/30 s |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
Output and Recording
| Sensor Output | 60 fps @ 3840 × 2160 |
|---|---|
| Video Saving | 60 fps @ 3840 × 2160, 60 fps @ 1920 × 1080, 60 fps @ 1280 × 720 |
| HDMI2.0 Output | 60 fps @ 3840 × 2160, 60 fps @ 1920 × 1080 |
| USB3.0 Output | 30 fps @ 3840 × 2160, 45 fps @ 2688 × 1512, 60 fps @ 1920 × 1080 |
| NETWORK Output | 30 fps @ 3840 × 2160, 60 fps @ 1920 × 1080, 60 fps @ 1280 × 720 |
| Binning | 1x1 |
| Exposure | 58 us ~ |
| Output Interfaces | HDMI2.0 / USB3.0 / NETWORK / SD / USB Video |
| Transmission Link | USB3.0 A male to MicroB screw-lock cable, up to 10 m |
| Lens Mount | C mount |
Intelligent Functions
| Storage Support | SD card / USB flash drive / USB3.0 SSD / Network storage |
|---|---|
| Network Storage | Supports real-time save of captured images and recorded videos to network storage drives |
| Voice Control | Supports USB voice control module for snap, recording, freeze, and related operations |
| Neural Network | Supports customized development for object recognition, counting, and detection |
| Image Formats | JPEG / TIFF / PNG / RAW |
| Video Formats | 8M (3840 × 2160) H.264 encoded MP4, up to 60 fps video saving |
| Image Operation | Zoom up to 10X, horizontal and vertical flip, freeze, EDF, Stitch, grids, overlay, PIP, browser, video playback, picture compare, video compare, and measurement |
| ISP | Exposure, gain, white balance, sharpening, 3D denoise, saturation, contrast, brightness, gamma, hue, anti-flicker, dark enhance, clarity enhance, purple reduction, and brightness enhance |
| Default ISP Profiles | Biological microscope / Stereo microscope |
| Software Support | Embedded XCamView / ToupView / ToupLite / iOS App / Android App |
Physical and Environment
| Power Supply | DC 12 V / 1 A or above |
|---|---|
| Design | Separated design with master device and image capture sub-device |
| Weight | 2 kg per box |
| Operating / Storage Temperature | Operating temperature: -10 °C ~ 50 °C, Storage temperature: -20 °C ~ 60 °C |
| Operating / Storage Humidity | Operating humidity: 30~80%RH, Storage humidity: 10~60%RH |
| OS Support | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 / macOS / Linux / Android / iOS |
| Certification | CE / FCC |
System integration
Integration and compatibility
Use these checks to connect X8CAM4K8MPB_MR to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Lens and microscope interface
- Lens Mount: C mount
- Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
- Sensor and sampling
- Sensor: Sony IMX585(C) · Resolution: 8 MP (3840 × 2160)
- Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
- Interface and data rate
- Interface: HDMI2.0 / USB3.0 / NETWORK / SD / USB Video · USB3.0 Output: 30 fps @ 3840 × 2160, 45 fps @ 2688 × 1512, 60 fps @ 1920 × 1080
- Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Technical FAQ
Integration questions for X8CAM4K8MPB_MR
What lens mount is required for the X8CAM4K8MPB_MR?
Lens Mount: C mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
What sensor and pixel pitch does the X8CAM4K8MPB_MR use?
Sensor: Sony IMX585(C) · Resolution: 8 MP (3840 × 2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
How does the X8CAM4K8MPB_MR connect to the acquisition computer?
Interface: HDMI2.0 / USB3.0 / NETWORK / SD / USB Video · USB3.0 Output: 30 fps @ 3840 × 2160, 45 fps @ 2688 × 1512, 60 fps @ 1920 × 1080. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Nearby series comparison
Compare X8CAM4K8MPB_MR with the closest available models in the X8CAM4K_MR family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | X8CAM4K8MPB_MR (current) | X8CAM4K8MPC_MR |
|---|---|---|
| Sensor | Sony IMX585(C) | Sony IMX678(C) |
| Resolution | 8 MP (3840 × 2160) | 8 MP (3840 × 2160) |
| Sensor size | 1/1.2" (11.14 × 6.26 mm) | 1/1.8" (7.68 × 4.32 mm) |
| Pixel size / frame rate | 2.9 µm × 2.9 µm | 2.0 µm × 2.0 µm |
