For microscope interactive teaching systems
X5CAM4K8MPB

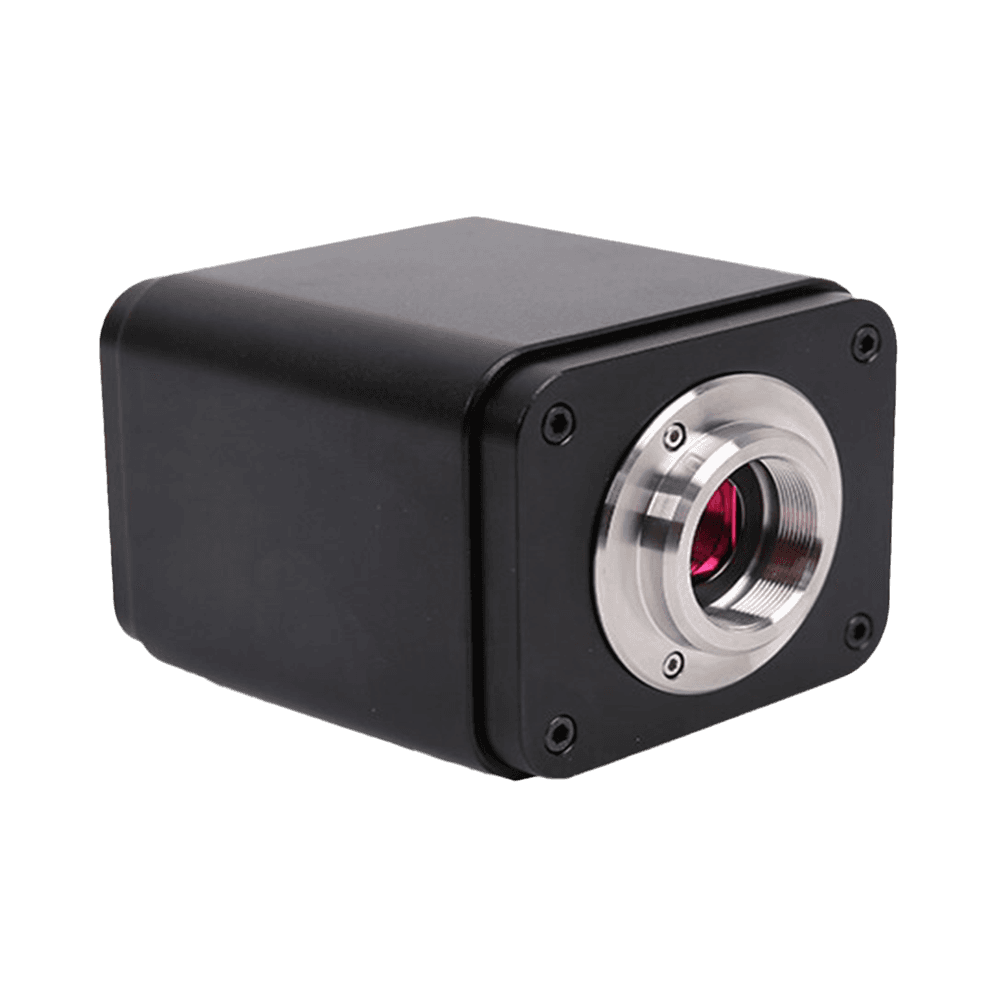

X5CAM4K8MPB Multi-Interface Output Camera with Sony IMX585(C) sensor, 8MP for autofocus imaging.
- Sensor
- Sony IMX585(C)
- Resolution
- 8MP
- Pixel Size
- 2.9 µm × 2.9 µm
- Frame Rate
- 60 fps @ 3840×2160
- Interface
- HDMI, NETWORK, USB3, WiFi
Specifications
X5CAM4K8MPB
18 specification rows
The X5CAM4K8MPB is a intelligent imaging camera in the X5CAM4K series, built around a Sony IMX585(C) sensor, 8MP resolution, 2.9 µm × 2.9 µm pixels, frame rates up to 60 fps @ 3840×2160, a HDMI, NETWORK, USB3, WiFi interface. It suits for microscope interactive teaching systems where reliable imaging performance and interface compatibility matter.
Key Parameters
| Product Model | X5CAM4K8MPB |
|---|---|
| Product Series | For microscope interactive teaching systems |
Sensor Parameters
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
Performance Parameters
| Frame Rate | 60 fps @ 3840×2160 |
|---|---|
| Output Interfaces | HDMI, NETWORK, USB3, WiFi |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
Physical Parameters
| Power Supply | DC 12 V/1A |
|---|
Environmental Parameters
| Operating Temperature | 10 °C ~ 50 °C |
|---|
Other Information
| OS Support | Windows, Linux, macOS |
|---|---|
| Certification | CE, FCC |
Need help choosing?
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Other cameras on the IMX585 sensor
The IMX585 appears in 18 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
