Color · Multi-interface camera

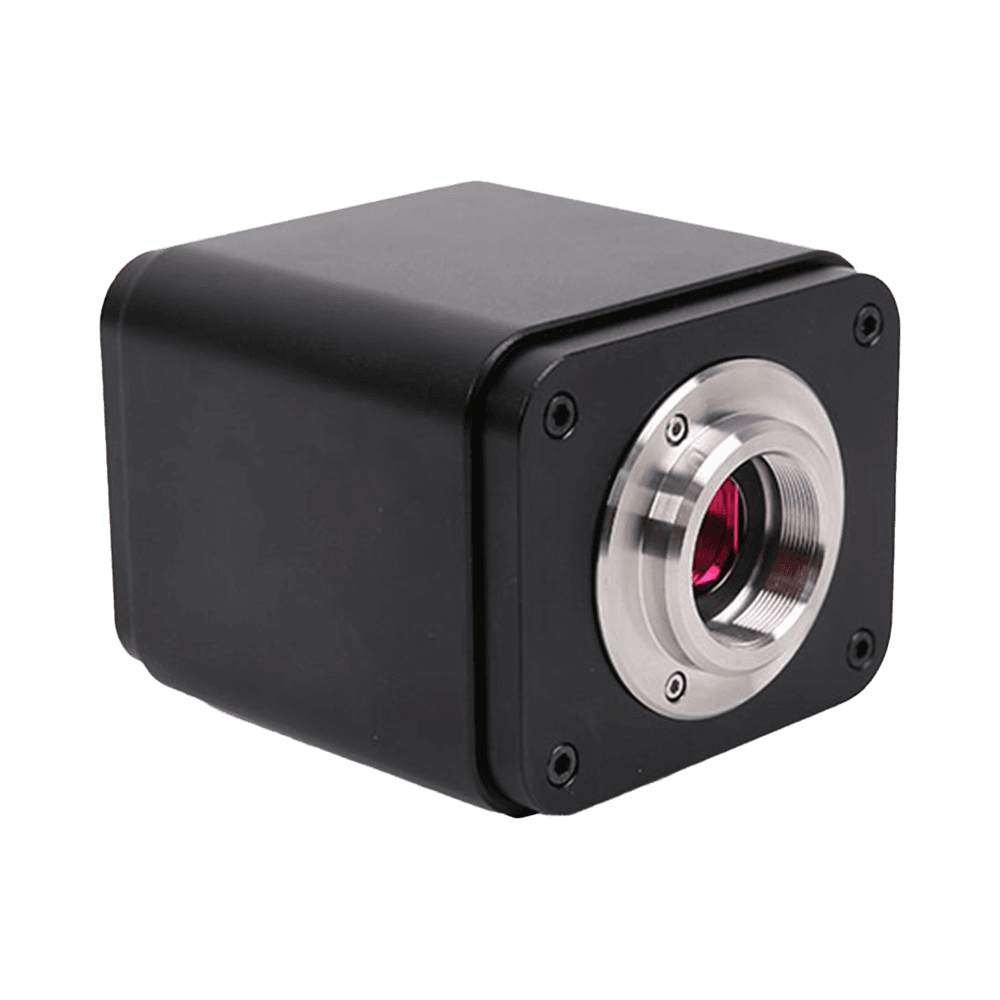

SCAM4K8MPB
- Sensor
- Sony IMX585(C) 1/1.2" (11.14×6.26 mm)
- Resolution
- 8MP (3840×2160)
- Pixel Size
- 2.9 μm × 2.9 μm
- Frame Rate
- HDMI: 30 fps @ 4K/1080P; Wi-Fi: 30 fps @ 1920×1080; USB3.0: 30 fps @ 3840×2160
- Interface
- HDMI1.4 USB3.0 Wi-Fi
Complete Specifications
Sensor & Imaging
| Sensor/Size | Sony IMX585(C) 1/1.2" (11.14×6.26 mm) |
|---|---|
| Effective Pixels | 2.9 µm × 2.9 µm |
| Sensor Model | Sony IMX585(C) |
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 12.8 mm |
| Pixel Size | 2.9 μm × 2.9 μm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Sensor | Sony IMX585(C) 1/1.2" (11.14×6.26 mm) |
Performance
| Frame Rate (fps) | HDMI: 30 fps @ 4K/1080P; Wi-Fi: 30 fps @ 1920×1080; USB3.0: 30 fps @ 3840×2160 |
|---|---|
| Frame Rate | HDMI: 30 fps@4K/1080P; Wi-Fi: 30 fps@1920×1080; USB3.0: 30 fps@3840×2160 |
| Frame Rate | HDMI: 30 fps @ 4K/1080P; Wi-Fi: 30 fps @ 1920×1080; USB3.0: 30 fps @ 3840×2160 |
Interface & Connectivity
| Output Resolution | 8MP (3840×2160) |
|---|---|
| Output Interface | HDMI1.4 USB3.0 Wi-Fi |
| Storage Support | SD card / USB drive |
| Output Interfaces | HDMI1.4 , USB3.0, Wi-Fi |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView, ToupLite |
| OS Support | Windows, Linux, macOS |
| Interface | HDMI1.4 USB3.0 Wi-Fi |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|---|
| Power Supply | DC 12 V/1A |

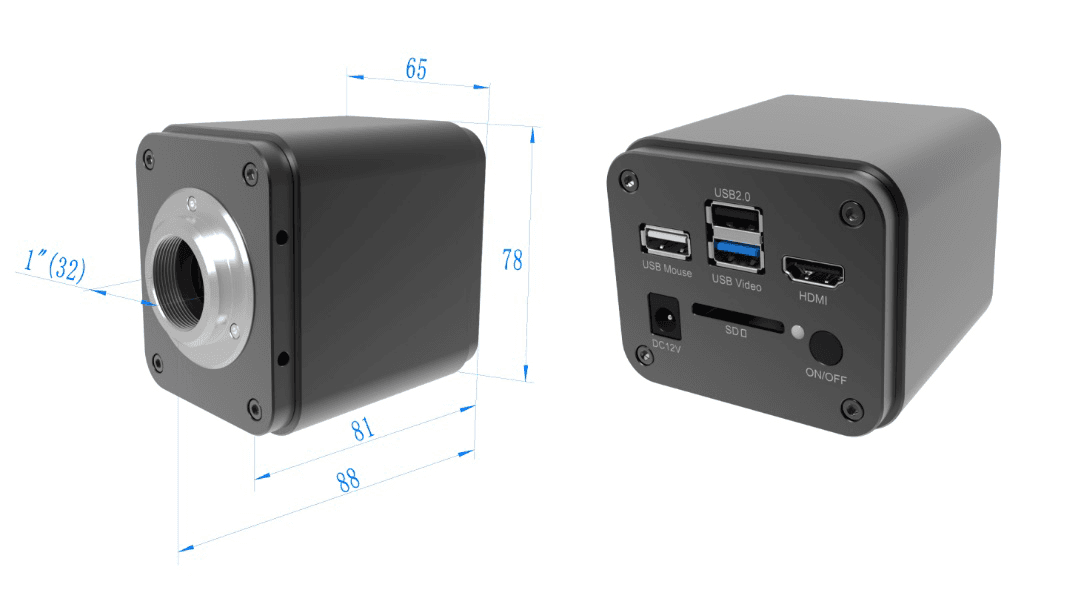

| Dimensions | 78 × 65 × 88 mm |
| Weight | 0.47 kg |
| Operating Temperature | -10 °C ~ +50 °C |
Other Published Specifications
| Model | SCAM4K8MPB |
|---|---|
| Featured Functions | 4K video recording Image measurement Crosshair display Image comparison 3D noise reduction Sharpening processing ROI white balance Multi-language menu |
| Product Model | SCAM4K8MPB |
| Product Series | HDMI/Wi-Fi/USB3.0 multi-output C-mount CMOS camera |
| Certification | CE, FCC, RoHS |
Technical Files & Images
Datasheet (PDF)Technical images (2)
