XCAMTOP4K_MINI Series

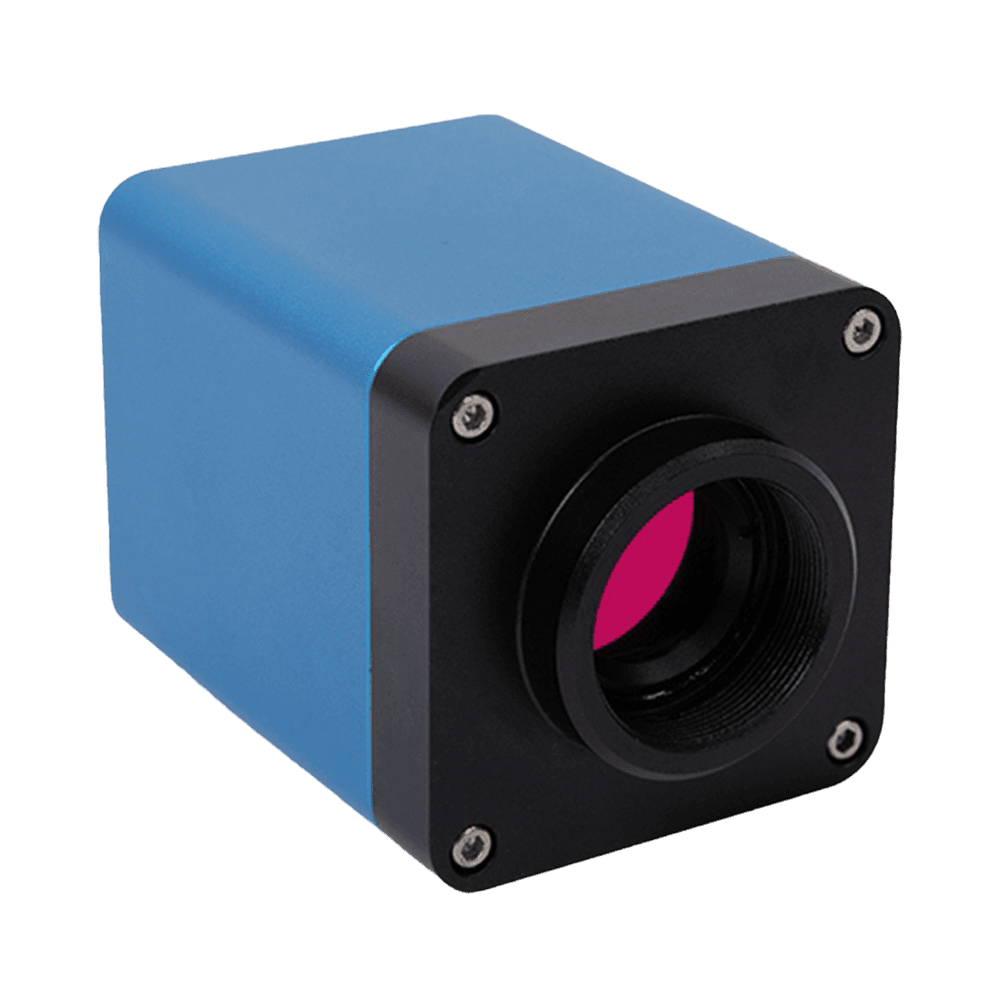

XCAMTOP4K8MPD_MINI Multi-Interface Output Camera with Sony IMX585(C) sensor, 8MP (3840×2160) for autofocus imaging.
Application context
XCAMTOP4K8MPD_MINI: The Sony IMX585(C) sensor, 8MP (3840×2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
XCAMTOP4K8MPD_MINI: The Sony IMX585(C) sensor, 8MP (3840×2160) resolution, and 2.9 µm × 2.9 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
20 specification rows
The XCAMTOP4K8MPD_MINI is an intelligent imaging camera in the XCAMTOP4K_MINI series, built around a Sony IMX585(C) sensor, 8MP (3840×2160) resolution, 2.9 µm × 2.9 µm pixels, frame rates up to HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160, a HDMI 1.4, USB Video, WiFi interface. It suits xcamtop4k_mini series where reliable imaging performance and interface compatibility matter.
| Product Model | XCAMTOP4K8MPD_MINI |
|---|---|
| Product Series | HDMI/WiFi/USB Multi-Output C-Mount Camera |
| Sensor Model | Sony IMX585(C) |
|---|---|
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 12.78 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Frame Rate | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 |
|---|---|
| Output Interfaces | HDMI 1.4, USB Video, WiFi |
| Lens Mount | C-mount |
| Storage Support | USB storage |
| Software Support | XCamView, ToupView, ToupLite |
| Power Supply | DC 12 V/1 A |
|---|---|
| Dimensions | Compact design |
| Weight | Lightweight |
| Operating Temperature | 10 °C ~ +50 °C |
|---|
| OS Support | Windows, Linux, macOS, Android, iOS |
|---|---|
| Certification | CE, FCC, UL |
System integration
Use these checks to connect XCAMTOP4K8MPD_MINI to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Lens Mount: C-mount. Use a lens image circle that covers the sensor and check flange distance before adding C/CS, F-mount or M42 adapters.
Sensor: Sony IMX585(C) · Resolution: 8MP (3840×2160). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 · Interface: HDMI 1.4, USB Video, WiFi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Model selection
Compare XCAMTOP4K8MPD_MINI with the closest available models in the XCAMTOP4K_MINI family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | XCAMTOP4K8MPD_MINI (current) | XCAMTOP4K8MPC_MINI | XCAMTOP4K8MPE_MINI |
|---|---|---|---|
| Sensor | Sony IMX585(C) | Sony IMX678(C) | Sony IMX715(C) |
| Resolution | 8MP (3840×2160) | 8MP (3840×2160) | 8MP (3840×2160) |
| Sensor size | 1/1.2" (11.14×6.26 mm) | 1/1.8" (7.68×4.32 mm) | 1/2.8" (5.57×3.13 mm) |
| Pixel size / frame rate | 2.9 µm × 2.9 µm | 2.0 µm × 2.0 µm | 1.45 µm × 1.45 µm |
The IMX585 appears in 21 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
Compare the XCAMTOP4K8MPD_MINI with other XCAMTOP4K_MINI models and intelligent imaging cameras in the range.
