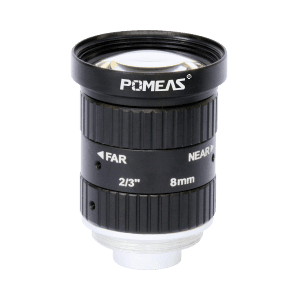

PMS-08MC10M(A) — 8.0 mm FA lens
PMS-08MC10M(A) 8.0 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 8.0mm; iris range F2.8- 16. Focus range 0.15m-∞.
- Focal Length
- 8.0mm
- Iris Range
- F2.8- 16
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 8.0mm |
| Iris Range | F2.8- 16 |
| Focus Range | 0.15m-∞ |
| Distortion | -0.81%@y = 5.5mm |
| Back Focal Length | 10.7mm |
| Lens Mount | C-mount |
| Filter Thread | M32.7×P0.5mm |
| Field of View (D×H×V) | 2/3" 58.5°×45.5° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 10 MP |

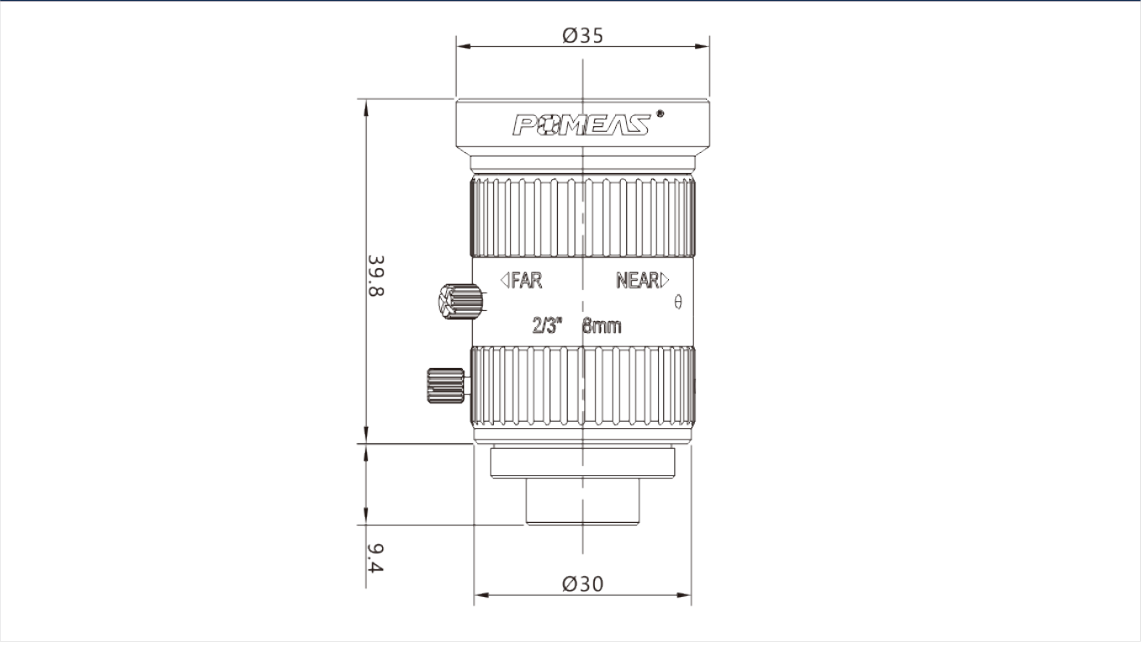

Technical drawings
