PMS-08MC10M — 8.0 mm FA lens
PMS-08MC10M 8.0 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 8.0mm; iris range F2.4- F22. Focus range 0.25m-∞.
- Focal Length
- 8.0mm
- Iris Range
- F2.4- F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.25m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×9.6mm |
| Image Circle | φ11mm |
| Focal Length | 8.0mm |
| Iris Range | F2.4- F22 |
| Focus Range | 0.25m-∞ |
| Distortion | -3.16%@y = 5.5mm |
| Back Focal Length | 10.3mm |
| Lens Mount | C-mount |
| Filter Thread | M37.0×0.5mm |
| Field of View (D×H×V) | 2/3" 56.6°×44° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 10 MP |

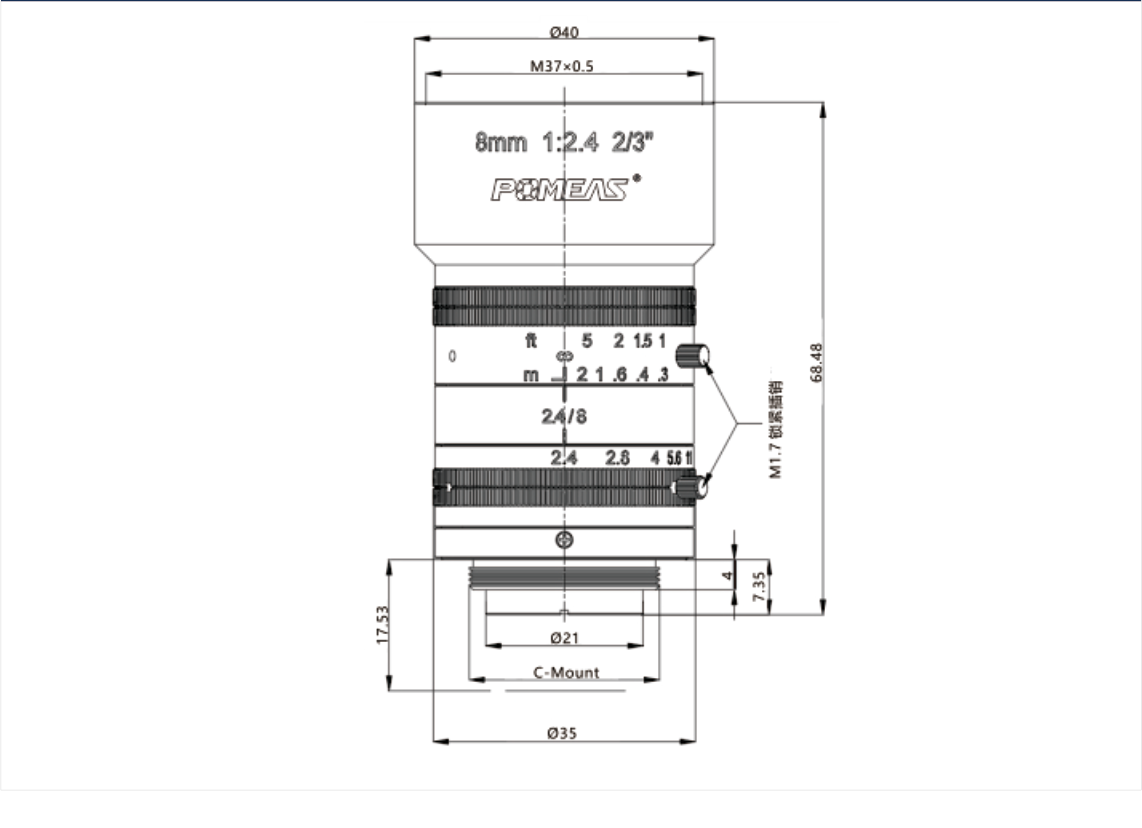

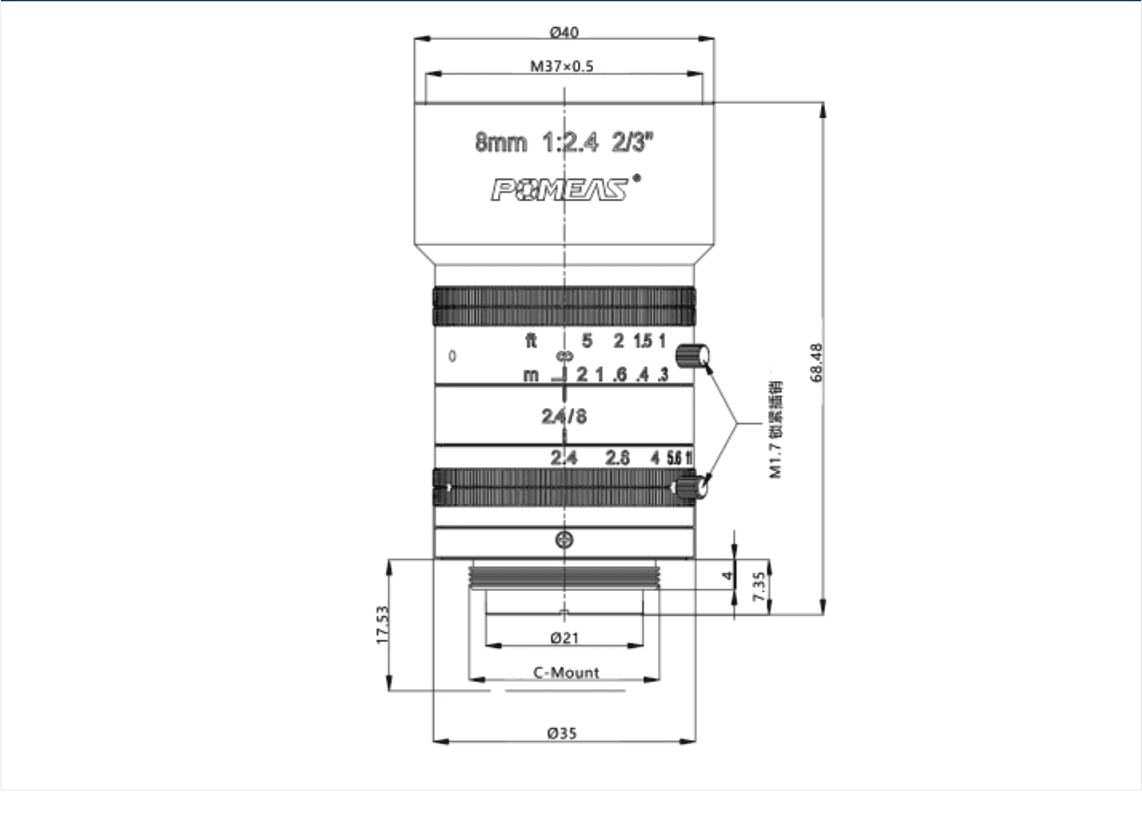

Technical drawings
