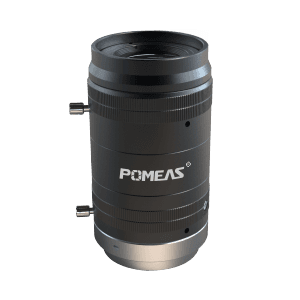

PMS-12MC10M — 12.0 mm FA lens
PMS-12MC10M 12.0 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 12.0mm; iris range F1.8- F22. Focus range 0.1m-∞.
- Focal Length
- 12.0mm
- Iris Range
- F1.8- F22
- Sensor Format
- 2/3"
- Lens Mount
- C-mount
- Focus Range
- 0.1m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Focal Length | 12.0mm |
| Iris Range | F1.8- F22 |
| Focus Range | 0.1m-∞ |
| Lens Mount | C-mount |
| Filter Thread | M37×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" (published column 1) | 68.4°×56.6°×44° |
| Field of View (D×H×V) — 2/3" (published column 2) | 58.1°×47.2°×36.3° |
| Resolution Rating | 10 MP |

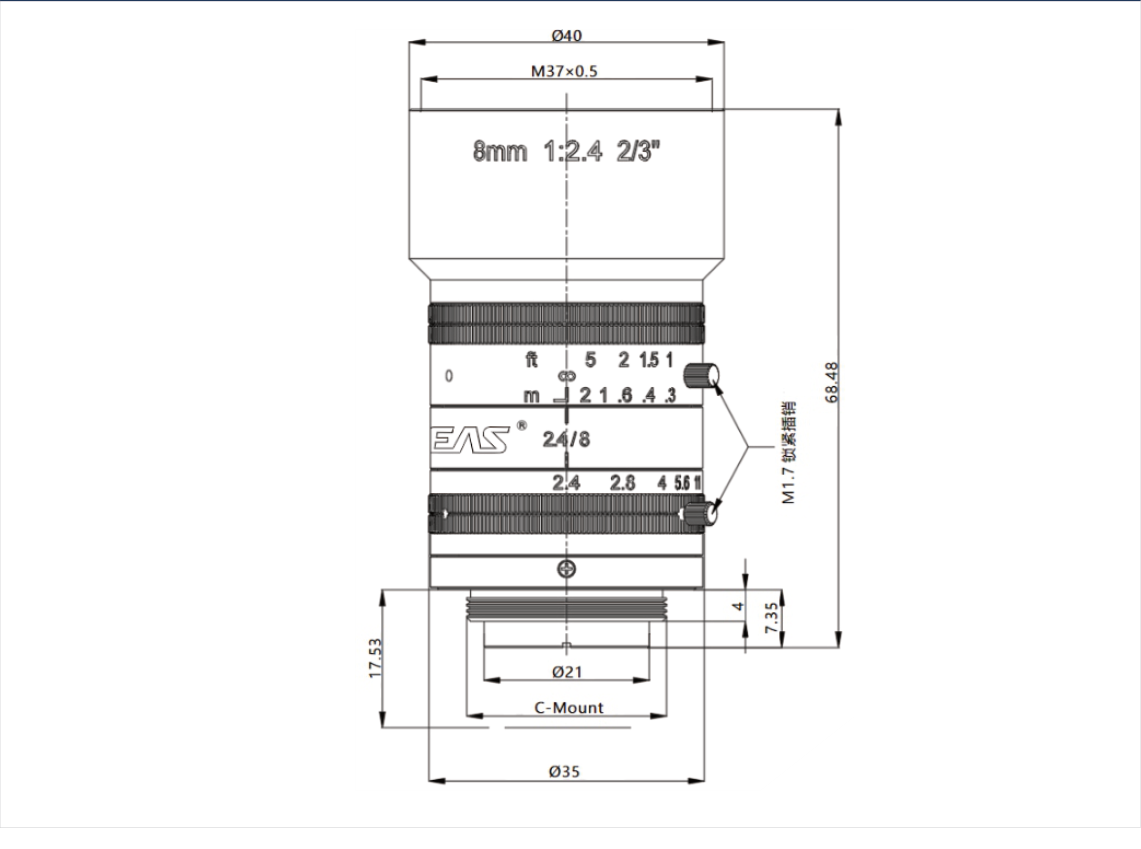

Technical drawings
