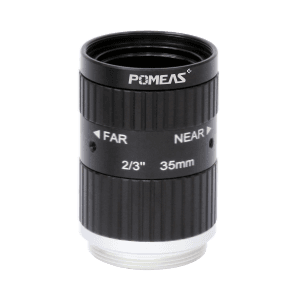

PMS-35MC10M — 35 mm FA lens
PMS-35MC10M 35 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 35 mm; iris range F2.0–F22. Focus range 0.2 m–∞.
- Focal Length
- 35 mm
- Iris Range
- F2.0–F22
- Sensor Format
- 2/3"
- Lens Mount
- C-mount
- Focus Range
- 0.2 m–∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Effective Image Size (source label) | 11 mm |
| Focal Length | 35 mm |
| Iris Range | F2.0–F22 |
| Focus Range | 0.2 m–∞ |
| Resolution Rating | 10 MP |
| Filter Thread | M30.5×0.5 mm |
| FOV at 2/3 inch (D×H×V) | 17.88°×14.35°×10.8° |
| FOV at 1/2 inch (D×H×V) | 13.1°×10.47°×7.86° |
| Focus Adjustment | Manual lock mechanism |
| Iris Adjustment | Manual lock mechanism |
| Lens Mount | C-mount |
| Operating Environment | Temperature -10 °C to +50 °C; humidity 30–80%, non-condensing |

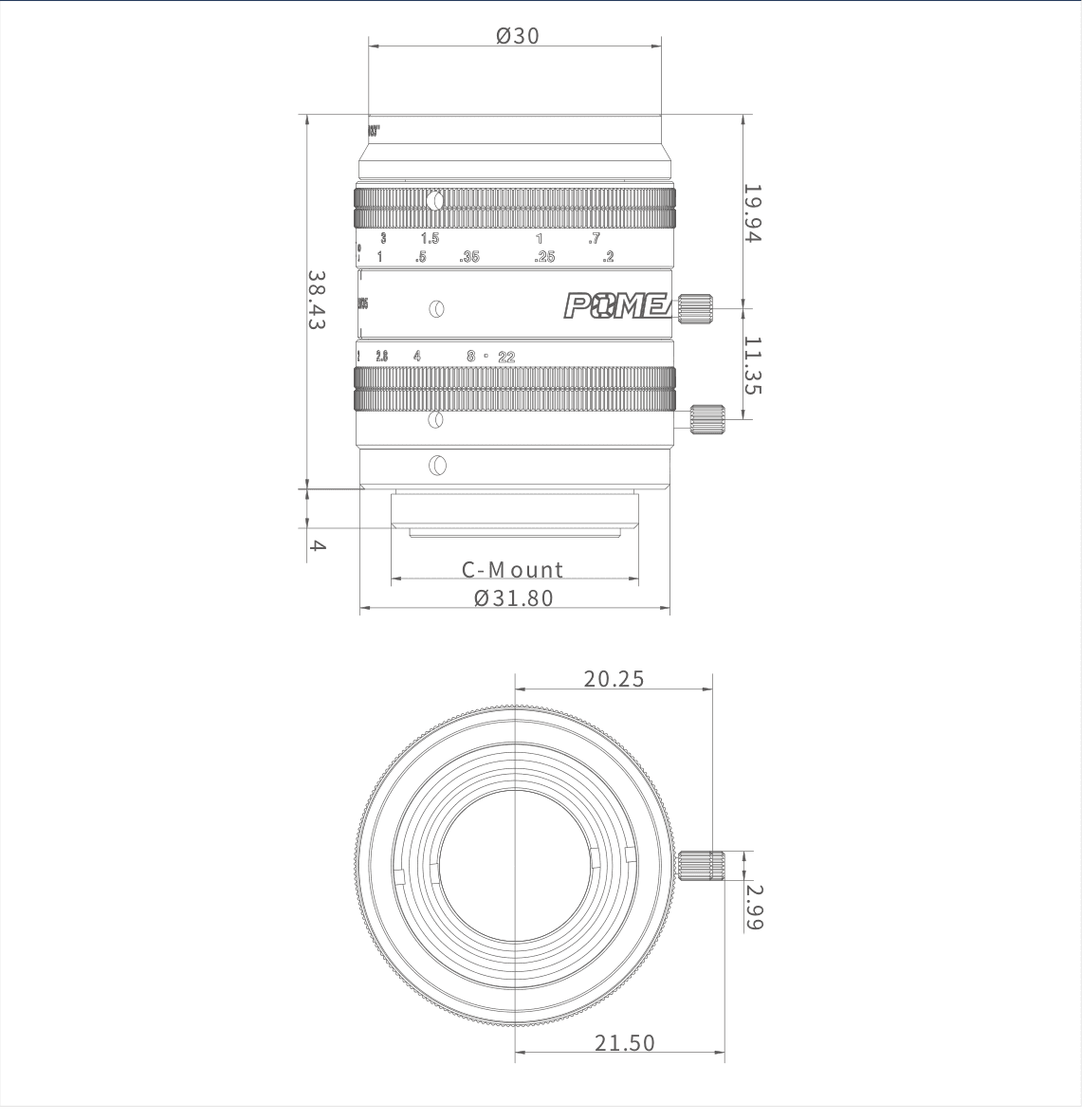

Technical drawings
