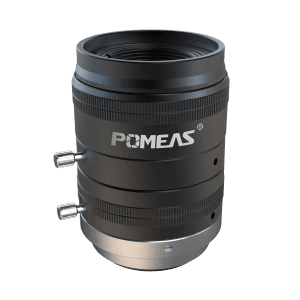

PMS-25MC10M — 25.0 mm FA lens
PMS-25MC10M 25.0 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 25.0mm; iris range F1.8- F22. Focus range 0.15m-∞.
- Focal Length
- 25.0mm
- Iris Range
- F1.8- F22
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×6.6mm |
| Image Circle | φ11mm |
| Focal Length | 25.0mm |
| Iris Range | F1.8- F22 |
| Focus Range | 0.15m-∞ |
| Distortion | -0.72%@y = 5.5mm |
| Back Focal Length | 12.7mm |
| Lens Mount | C-mount |
| Filter Thread | M30.5×0.5mm |
| Field of View (D×H×V) | 2/3"20.1°×15.1° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 10 MP |

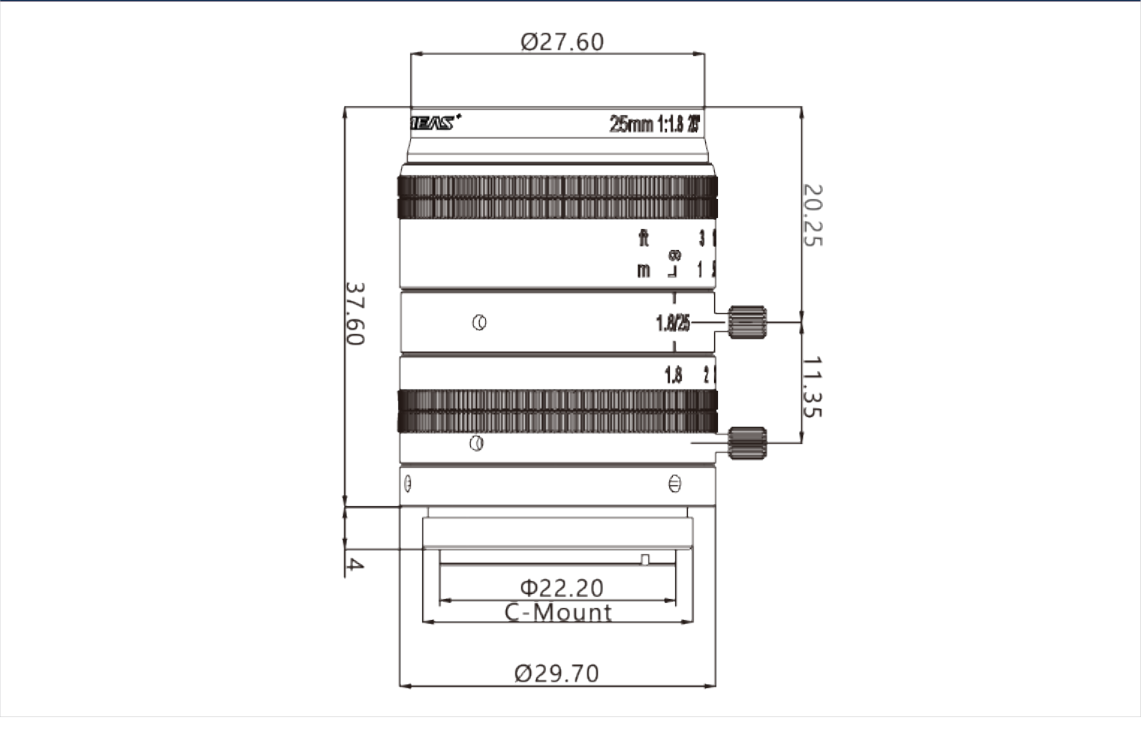

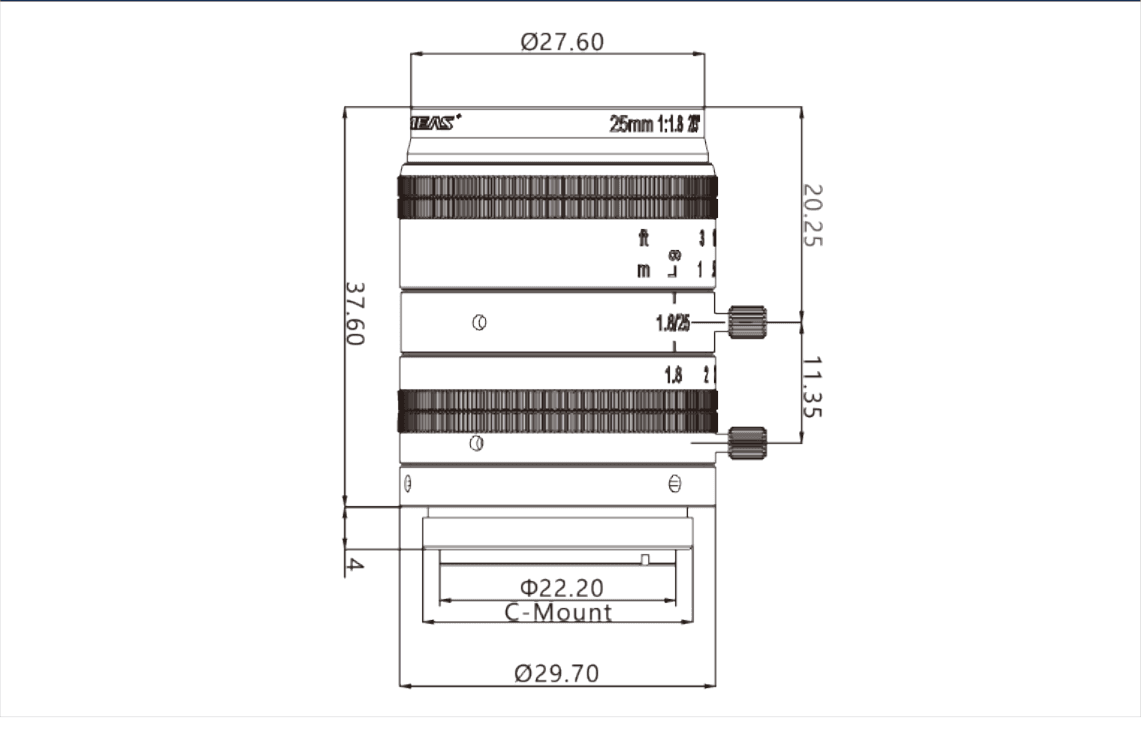

Technical drawings
