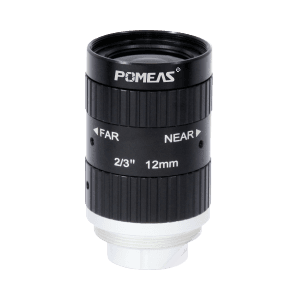

PMS-12MC10M(A) — 12.0 mm FA lens
PMS-12MC10M(A) 12.0 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 12.0mm; iris range F2.8- 16. Focus range 0.15m-∞.
- Focal Length
- 12.0mm
- Iris Range
- F2.8- 16
- Sensor Format
- 2/3"
- Image Circle
- φ11mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8mm×9.6mm |
| Image Circle | φ11mm |
| Focal Length | 12.0mm |
| Iris Range | F2.8- 16 |
| Focus Range | 0.15m-∞ |
| Back Focal Length | 8.43mm |
| Lens Mount | C-mount |
| Filter Thread | M27×P0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 2/3" | 49.2°×40.3°×30.8° |
| Field of View (D×H×V) — 1/2" | 36.9°×29.9°×22.7° |
| Field of View (D×H×V) — 1/3" | 28.1°×22.7°×17.1° |
| Object Size (D×H×V) — 2/3" | 140.5mm×112.4mm×84.3mm |
| Object Size (D×H×V) — 1/2" | 101.7mm×81.4mm×61.0mm |
| Object Size (D×H×V) — 1/3" | 76.1mm×60.9mm×45.7mm |
| Resolution Rating | 10 MP |

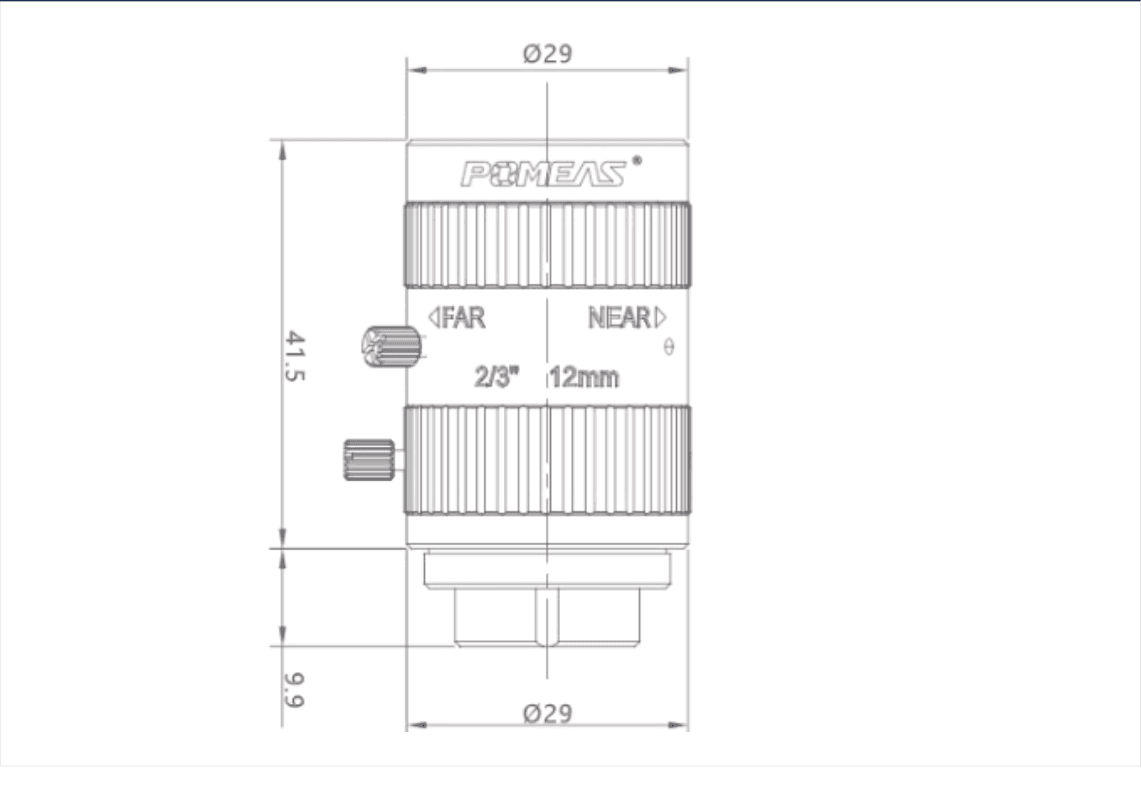

Technical drawings
