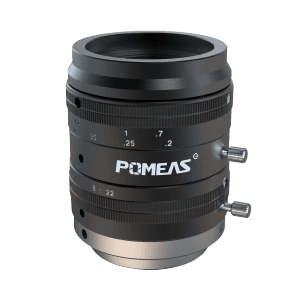

PMS-35UC20M — 35 mm FA lens
PMS-35UC20M 35 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 35 mm; iris range F2.8–16. Focus range 0.20 m–∞.
- Focal Length
- 35 mm
- Iris Range
- F2.8–16
- Sensor Format
- 2/3" (11 mm)
- Lens Mount
- C-mount
- Focus Range
- 0.20 m–∞
Complete specifications
| Sensor Format | 2/3" (11 mm) |
|---|---|
| Wavelength Range | 420–1000 nm |
| Focal Length | 35 mm |
| Lens Mount | C-mount |
| Iris Range | F2.8–16 |
| FOV at 2/3 inch (D×H×V) | 18.39°×14.8°×11.1° |
| FOV at 1/2 inch (D×H×V) | 13.4°×10.8°×8.1° |
| FOV at 1/3 inch (D×H×V) | 10.1°×8.1°×6.1° |
| Object size at 2/3 inch (D×H×V) | 54.1×43.3×32.5 mm |
| Object size at 1/2 inch (D×H×V) | 39.3×31.5×23.6 mm |
| Object size at 1/3 inch (D×H×V) | 29.5×23.6×17.7 mm |
| Optical Back Focal Length (in air) | 13.63 mm |
| Focus Adjustment | Manual |
| Iris Adjustment | Manual |
| Distortion at 2/3 inch | -0.172%@y=5.5 mm |
| Distortion at 1/2 inch | -0.077%@y=4.0 mm |
| Distortion at 1/3 inch | -0.045%@y=3.0 mm |
| Focus Range | 0.20 m–∞ |
| Filter Thread | M27×P0.5 |
| Operating Environment | Temperature -10 °C to +50 °C; humidity 30–80%, non-condensing |
| Resolution Rating | 10 MP |

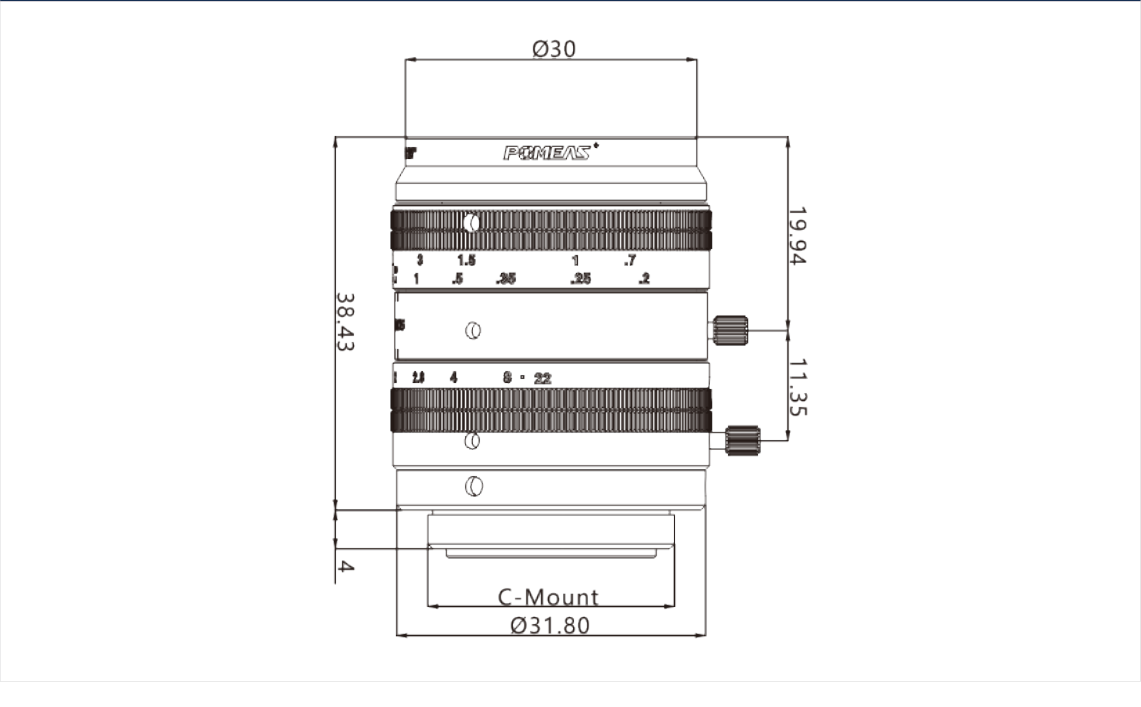

Technical drawings
