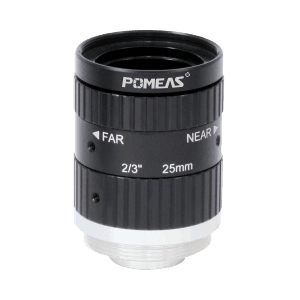

PMS-25UC10M — 25 mm FA lens
PMS-25UC10M 25 mm fa lens in the 10 MP · 2/3-inch FA lenses range. Focal length 25 mm; iris range F2.8–16. Focus range 0.15 m–∞.
- Focal Length
- 25 mm
- Iris Range
- F2.8–16
- Sensor Format
- 2/3"
- Image Circle
- φ11 mm
- Lens Mount
- C-mount
- Focus Range
- 0.15 m–∞
Complete specifications
| Sensor Format | 2/3" |
|---|---|
| Sensor Dimensions | 8.8×6.6 mm |
| Image Circle | φ11 mm |
| Focal Length | 25 mm |
| Iris Range | F2.8–16 |
| Focus Range | 0.15 m–∞ |
| Distortion | -0.016%@y=5.5 mm |
| Back Focal Length | 10.31 mm |
| Lens Mount | C-mount |
| Filter Thread | M27×P0.5 mm |
| Field of View — 2/3 inch | 19.94°×15.0° |
| Operating Environment | Temperature -10 °C to +50 °C; humidity 30–80%, non-condensing |
| Resolution Rating | 10 MP |
