Microscopy Camera/Microscope Camera

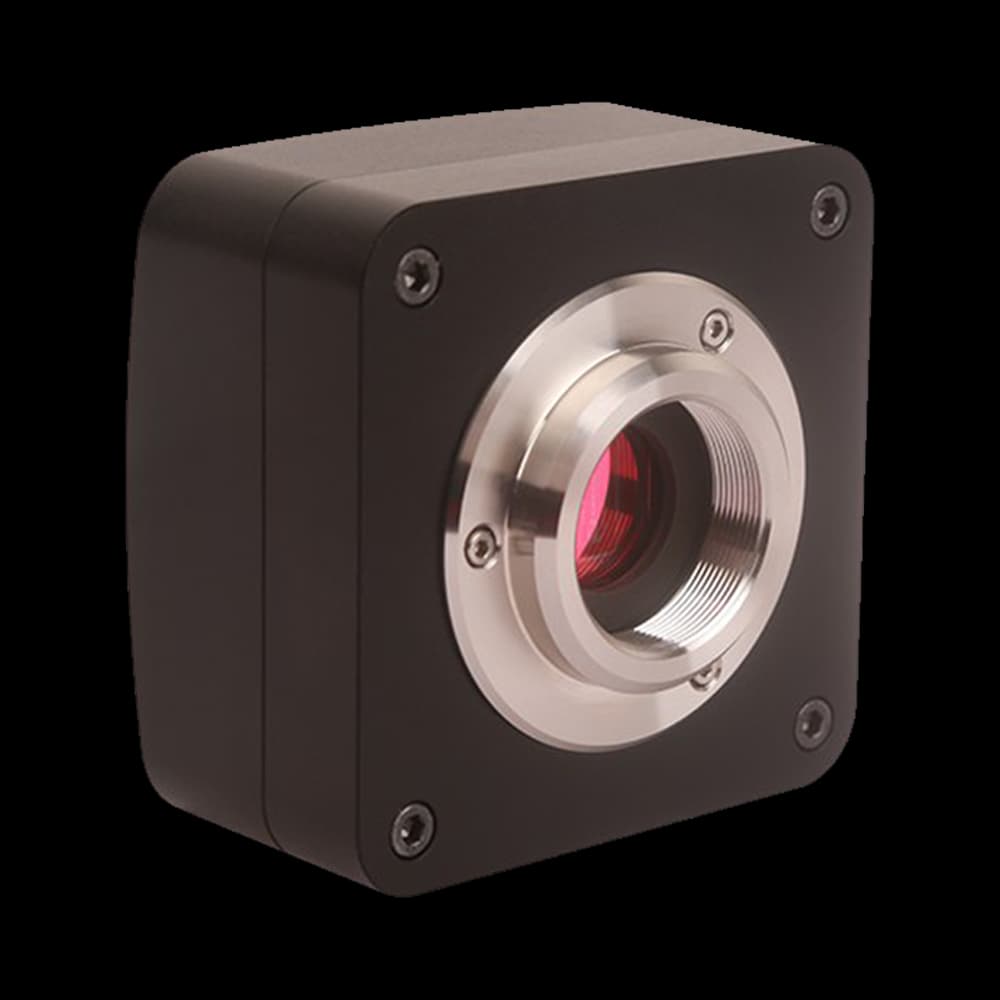

UHCCD01400KPB

UHCCD01400KPB Microscopy Camera/Microscope Camera with ICX205AK CCD (C) sensor, 1.4MP (1360×1024) for professional imaging.

Sensor: ICX205AK CCD (C)
Resolution: 1.4MP (1360×1024)
Pixel Size: 4.65 µm × 4.65 µm
Frame Rate: 15 fps @ 1360×1024
Interface: USB2.0

Datasheet (PDF)Back to Microscopy Cameras

Specifications

UHCCD01400KPB

23 specification rows

The UHCCD01400KPB is a microscopy camera in the UHCCD series, built around a ICX205AK CCD (C) sensor, 1.4MP (1360×1024) resolution, 4.65 µm × 4.65 µm pixels, frame rates up to 15 fps @ 1360×1024, a USB2.0 interface. It suits microscopy camera/microscope camera where reliable imaging performance and interface compatibility matter.

Key Parameters

Model	UHCCD01400KPB
Sensor	ICX205AK CCD (C)
Effective Pixels / Resolution	1.4MP (1360×1024)
Frame Rate (Full Resolution)	15 fps @ 1360×1024
Exposure Time	0.127 ms ~ 60 s
Shutter Type	Rolling Shutter
Color Type	Color

Imaging Performance

Pixel Size	4.65 µm × 4.65 µm
Sensor Size	6.32 mm × 4.76 mm
Diagonal	1/2" (7.91 mm)
Dynamic Range	Available on request
Bit Depth	8-bit/12-bit
Sensitivity	400 mv with 1/30s

Interface & Mechanical

Data Interface	USB2.0
GPIO	Available on request
Lens Mount	C-mount
Dimensions	Available on request
Weight	0.67~0.8 Kg
Power Supply	USB2.0 Power Supply

Environment & Certification

Operating Temperature / Humidity	10 °C ~ +50 °C / 30%~80%RH
Storage Temperature / Humidity	20 °C ~ +60 °C / 10%~60%RH
Operating System	Windows XP/Vista/7/8/10/11(32&64-bit)/OS X/Linux
Certification	CE, FCC
