11 models · 4 series

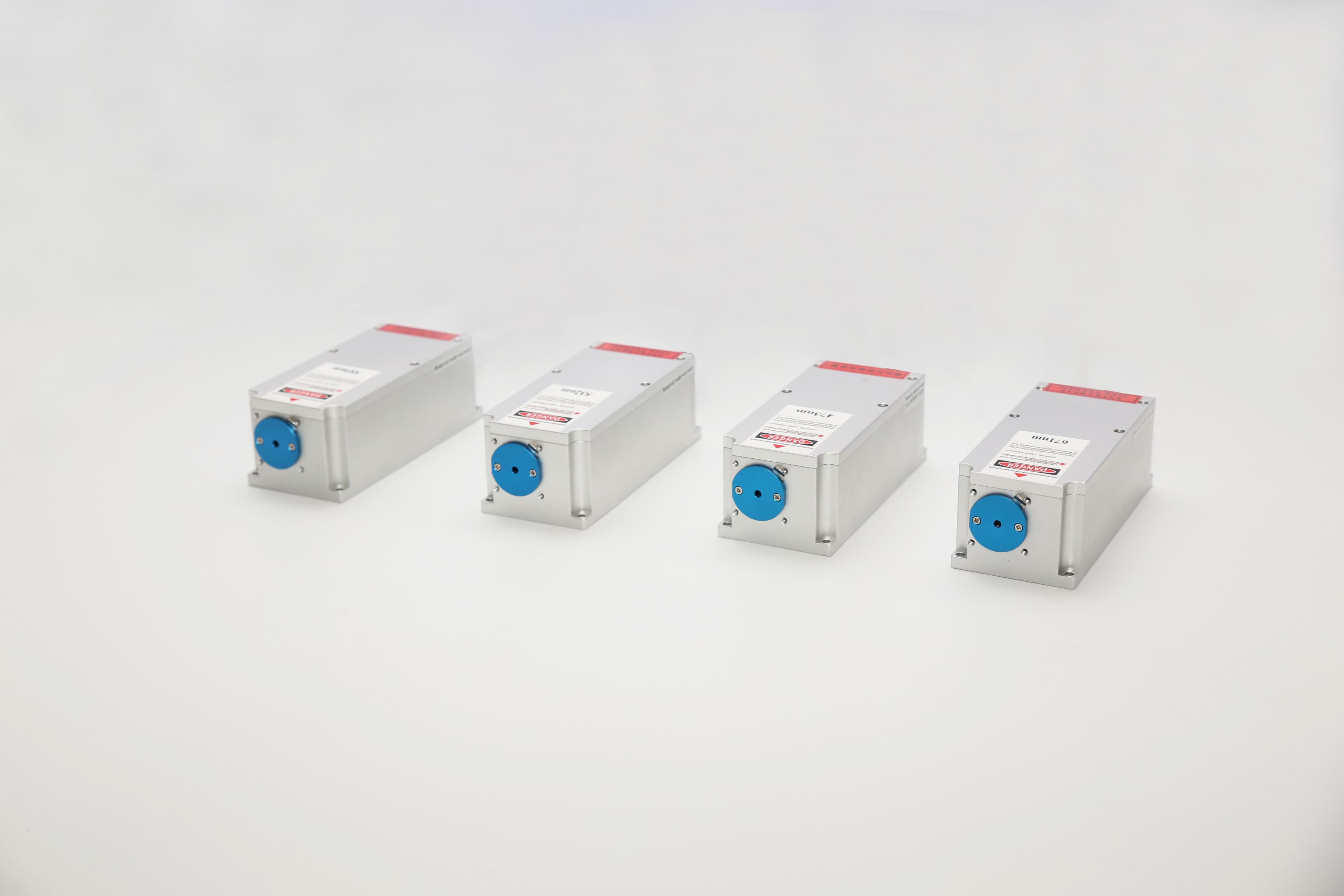

1080nm Laser, Infrared Laser |
8 models| Model | Wavelength | Output / average power | Power stability (rms, 4 hours , ±3℃) | Transverse mode | Longitudinal mode | Current adjustment range | Relative intensity noise (rms, 10Hz-3MHz) | Frequency shift (MHz) (over ±2℃and 8 hours ) | M2 | Fiber connector | Fiber length(m) | Fiber jacket | Beam diameter (mm) | Polarization ratio (dB) | Warm-up time (minutes) | Cooled method | Operating temperature (℃) | Power supply (VAC) | Expected lifetime (hours) | Power stability (rms, 4 hours ± 3°C) | Noise of amplitude (rms, 20Hz-20MHz) | Beam divergence, full angle (mrad) | Operating temperature (°C) | Power supply (100-240VAC) | Spectral linewidth (nm) | Frequency shift (MHz) (over ±2℃and 8 hours) | Fiber type | Fiber Core diameter | M2 after fiber | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL-1080-SLM | 1080 nm | 1-10 W | <2%, <1%, <0.5% | TEM00 | SLM | 1-100% | <0.3%, <0.1%, (<0.05% optional) | <±200 | <1.1 | FC/APC, Collimator optional | 1 | PVC, Metal optional | 4±1 (Collimator output) | >15, after PM fiber | <30 | Air cooled or Water cooled | 15-30 | 110/220VAC | >10000 | – | – | – | – | – | – | – | – | – | – | Datasheet |
| TEM-LN-1080 | 1080 nm | 1~400 mW | – | TEM00 | – | – | – | – | <1.1 | – | – | – | – | – | <5 | – | – | – | >10000 | <2%, <1%, <0.5% | <1%, <0.5% | <1.5 | 25±3 | PSU-III-FDA/PSU-III-LED/PSU-A-D | – | – | – | – | – | Datasheet |
| FL-1080-LN-L | 1080 nm | 1~10 W | <2%, <1%, <0.5% | TEM00 | SLM | 1-100% | <0.1%, <0.05% | – | <1.1 | FC/APC, Collimator optional | 1 | PVC, Metal optional | 4±1 (Collimator output) | >15, after PM fiber | <30 | Air cooled or Water cooled | 15-30 | 110/220VAC | >10000 | – | – | – | – | – | <0.004 | <±200 | – | – | – | Datasheet |
| MLL-III-1080-SM | 1080 nm | 1~400 mW | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| TEM-F-1080 | 1080 nm | 1~400 mW | – | TEM00 | – | – | – | – | <1.1 | – | – | – | – | – | <5 | – | – | – | >10000 | <2%, <1%, <0.5% | – | <1.5 | 25±3 | PSU-III-FDA/PSU-III-LED/PSU-A-D | – | – | – | – | – | Datasheet |
| MDL-III-1080-SM | 1080 nm | 1~400 mW | – | TEM00 | – | – | – | – | – | FC/PC, FC/APC optional | – | Metal, PVC optional | – | – | <5 | Conduction | – | – | >10000 | <2%, <1%, <0.5% | – | – | 10-35 | PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM | – | – | SM fiber, PM fiber optional | 6-9μm, 0.13NA | ~1.1 | Datasheet |
| FL-1080-CW | 1080 nm | 1~500 W | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| FC-OEM-1080 | 1080 nm | 1~400 mW | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Single Longitudinal Mode SLM Laser, Green and Infrared Single Frequency Laser AT 532 NM and 1064 NM.
1 model| Model | Wavelength | Output / average power | Spectral linewidth | Optical noise | M² | |
|---|---|---|---|---|---|---|
| 1080 | 1080 nm | 1~10 W | <10 kHz | <0.05% RIN(DC-3 MHz) | <1.1 |
Nanosecond Fiber Laser |
1 model| Model | Wavelength | Output / average power | Pulse width | Power stability | M² | frequency | Rep. rate | stability, | Fiber connector | Fiber length (m) | Fiber jacket | Beam diameter (mm) | Polarization ratio (dB) | Warm-up time (minutes) | Cooled method | Operating temperature (℃) | Operating voltage (VDC/VAC) | Expected lifetime (hours) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL-1080-Nano | 1080 nm | 0.5-10 W | 0.5-250 ns (Adjustable) | <3%, <2% | <1.8 | all / fiber / pulsed / laser / at | 100kHz-1MHz (adjustable) | good / beam / profile, / ultra | FC/APC, Collimator optional | 1 | PVC, Metal optional | 4±1 (Collimator output) | Random / >15 | <15 | Air cooled | 15-35 | 12V/11.5A or 110/220VAC | >10000 | Datasheet |
Picosecond Fiber Laser |
1 model| Model | Wavelength | Output / average power | Repetition rate | Pulse width | Power stability | M² | stability, | Fiber connector | Fiber length (m) | Fiber jacket | Beam diameter (mm) | Polarization ratio (dB) | Warm-up time (minutes) | Cooled method | Operating temperature (℃) | Operating voltage (VDC/VAC) | Expected lifetime (hours) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL-1080-Pico | 1080 nm | 10-5000 mW | 0.1-20 MHz | 100-900 ps | <3%, <2% | <1.2 | M2 / <1.2 / <1.8 | FC/APC, Collimator optional | 1 | PVC, Metal optional | 4±1 (Collimator output) | Random / >15 | <15 | Air cooled | 15-35 | 12V/11.5A | >10000 | Datasheet |
Not sure which model fits?
Send the physics — wavelength, mode, power or energy, linewidth or pulse width, delivery, control and safety — and we qualify the source.
