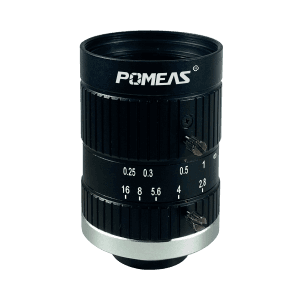

PMS-50VC20M-C — 50 mm FA lens
PMS-50VC20M-C 50 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 50mm; iris range F2.8-16. Focus range 0.25m~∞.
- Focal Length
- 50mm
- Iris Range
- F2.8-16
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
- Focus Range
- 0.25m~∞
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 50mm |
| Iris Range | F2.8-16 |
| Distortion | 0.05%@16mm |
| Back Focal Length | 10.3mm |
| Lens Mount | C-mount |
| Focus Range | 0.25m~∞ |
| Field of View (D×H×V) | 18.6°×15°×11.2° |
| Object Size (D×H×V) | 69mm×55mm×41mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

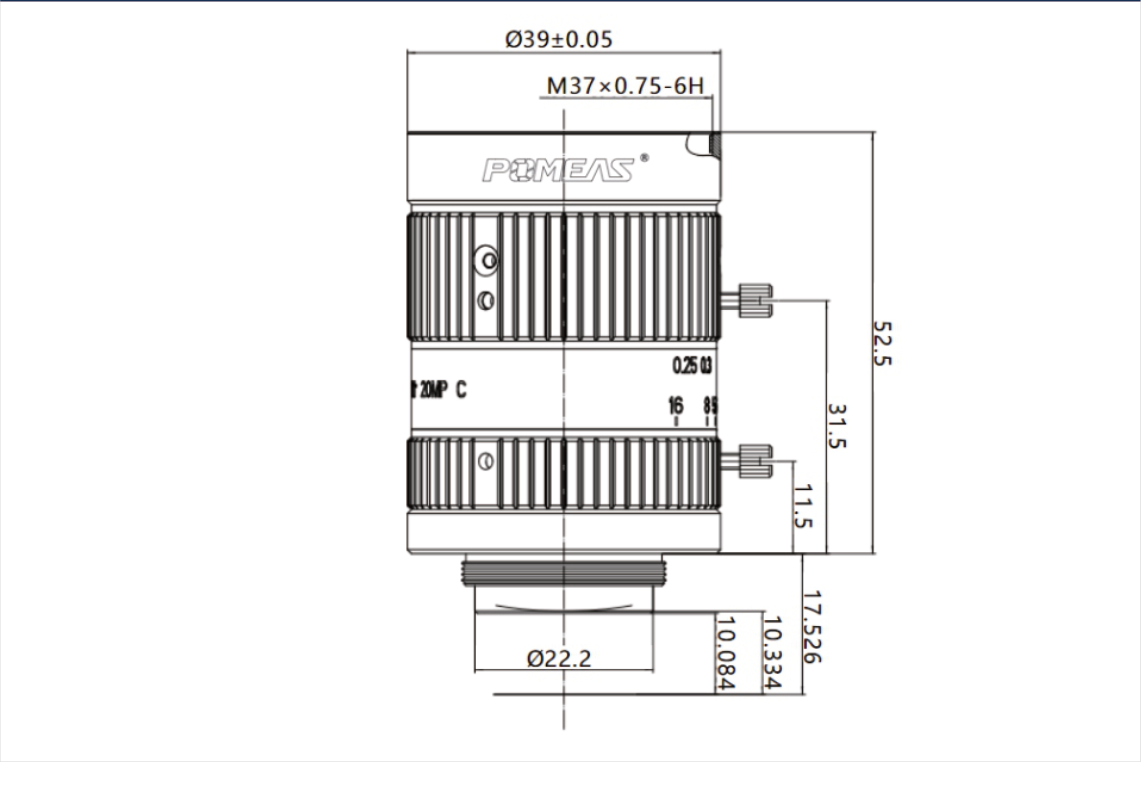

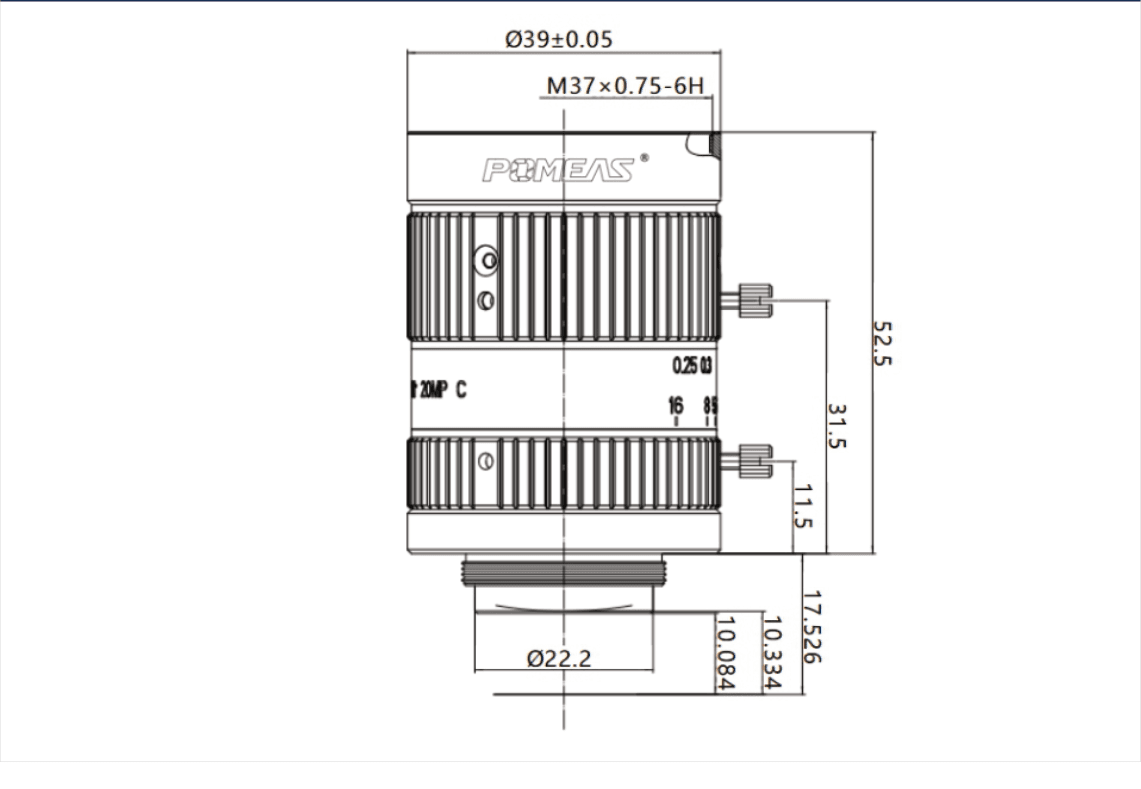

Technical drawings
