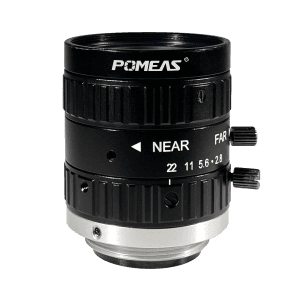

PMS-25VC20M — 25 mm FA lens
PMS-25VC20M 25 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 25mm; iris range F2.8.
- Focal Length
- 25mm
- Iris Range
- F2.8
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 25mm |
| Iris Range | F2.8 |
| Distortion | -0.59%y=8.8mm |
| Back Focal Length | 12.6mm |
| Lens Mount | C-mount |
| Operating Temperature | -20°C~+60°C |
| Filter Thread | M30.5×0.5 |
| Field of View (D×H×V) | 39.4°mm×31.5°mm×23.6°mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

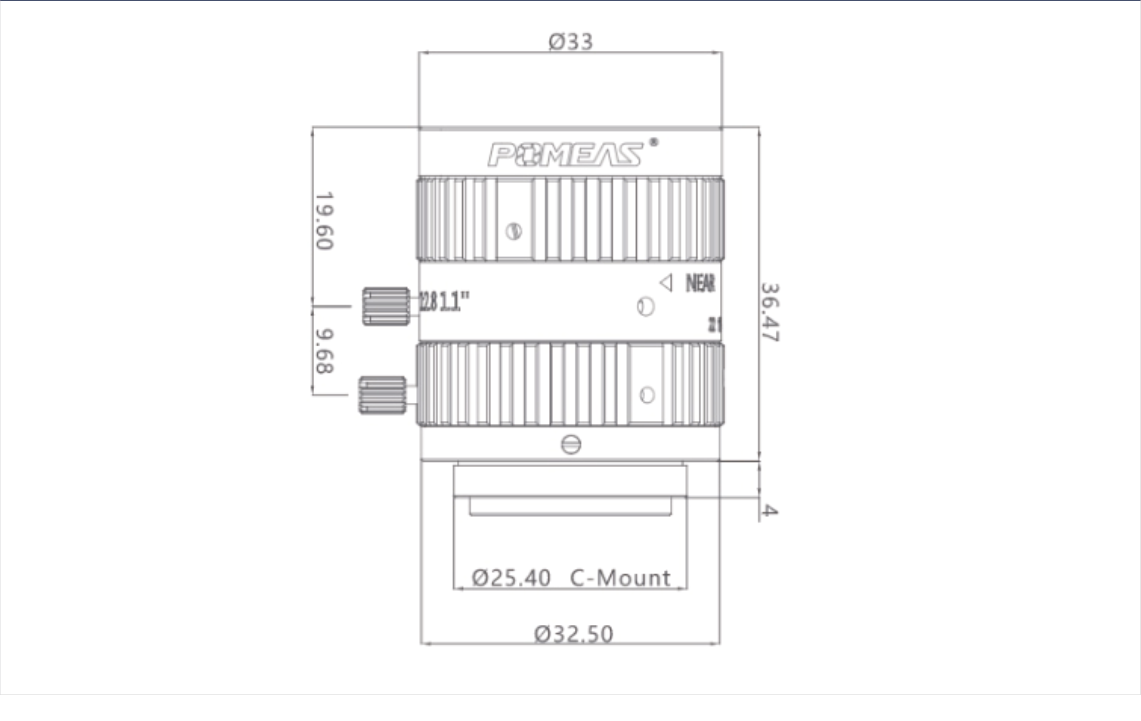

Technical drawings
