PMS-12VC20M — 12 mm FA lens
PMS-12VC20M 12 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 12mm; iris range F2.8-F22. Focus range 0.1m-∞.
- Focal Length
- 12mm
- Iris Range
- F2.8-F22
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
- Focus Range
- 0.1m-∞
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 12mm |
| Iris Range | F2.8-F22 |
| Focus Range | 0.1m-∞ |
| Back Focal Length | 10.6mm |
| Lens Mount | C-mount |
| Field of View (D×H×V) | 70.6°×59.2°×45.4° |
| Object Size (D×H×V) | 166.4mm×133.1mm×99.8mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

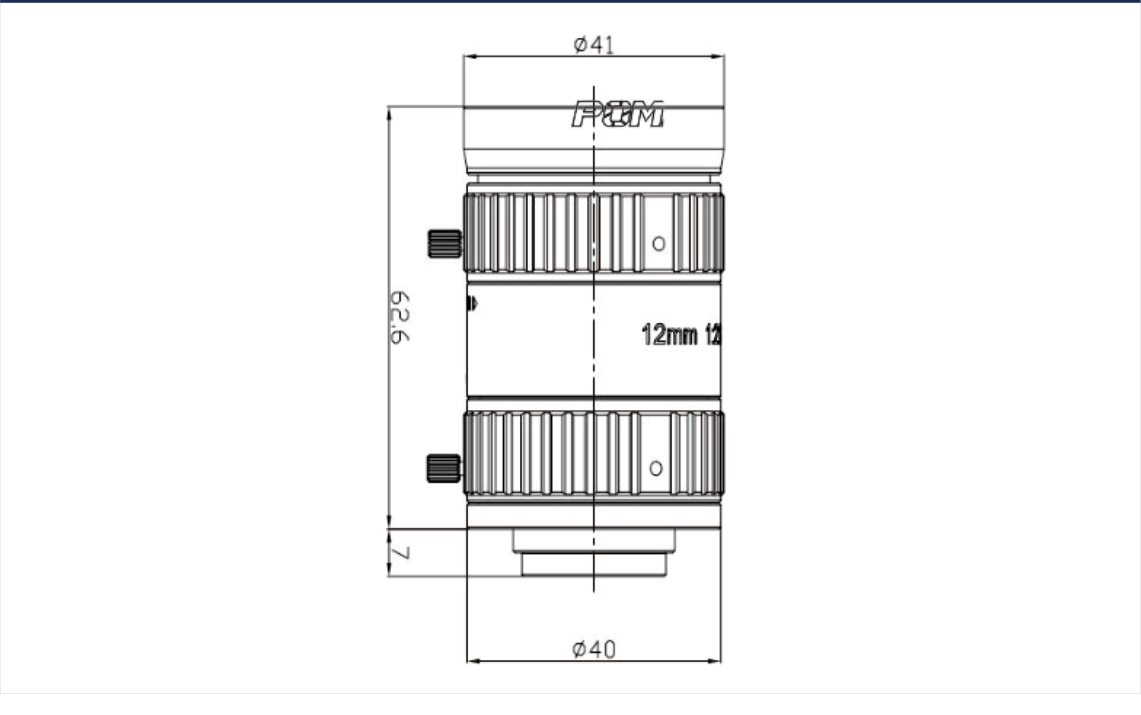

Technical drawings
