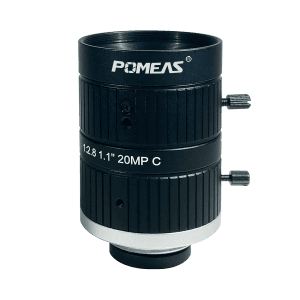

PMS-35VC20M-C — 35 mm FA lens
PMS-35VC20M-C 35 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 35mm; iris range F2.8.
- Focal Length
- 35mm
- Iris Range
- F2.8
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 35mm |
| Iris Range | F2.8 |
| Distortion | -0.37% |
| Back Focal Length | 12.9mm |
| Lens Mount | C-mount |
| Field of View (D×H×V) | 28.2°×22.5°×16.9° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

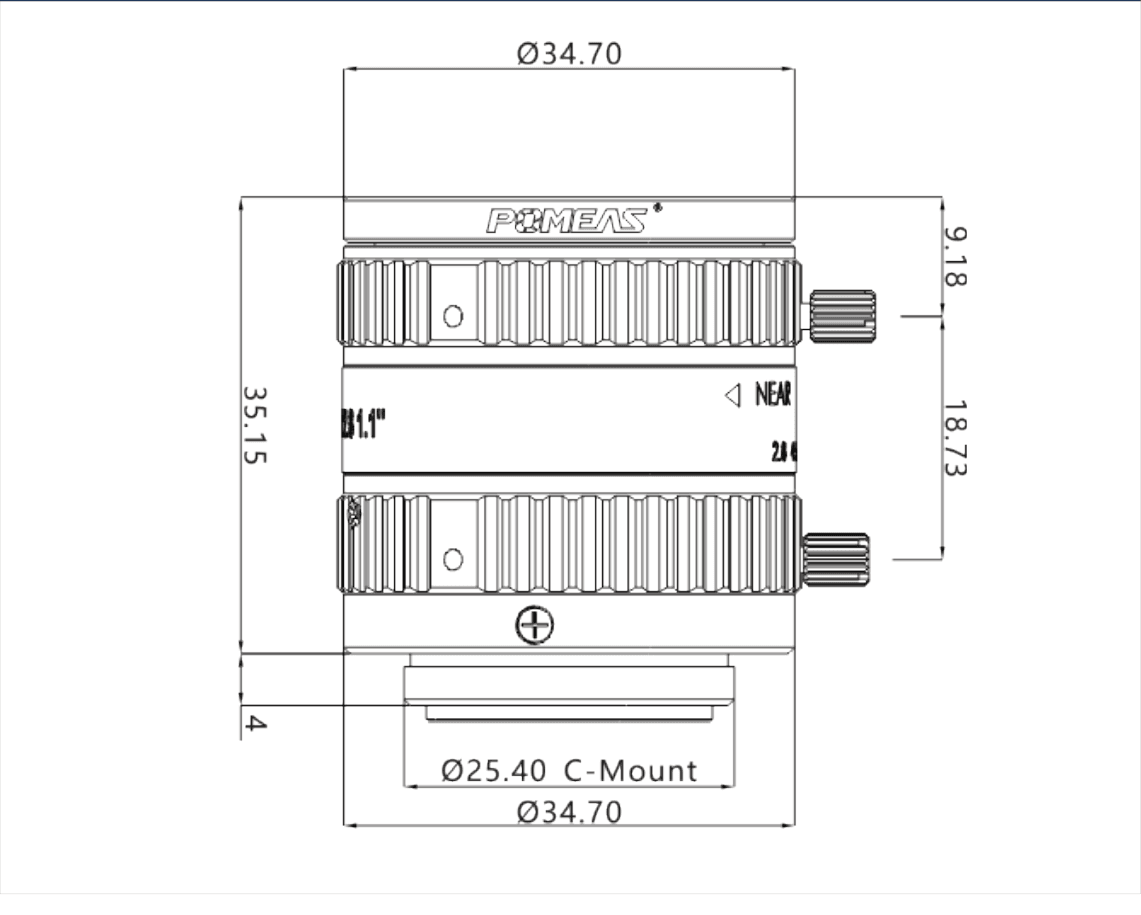

Technical drawings
