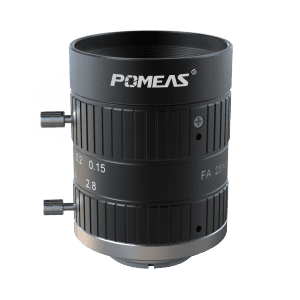

PMS-25VC20M-C — 25 mm FA lens
PMS-25VC20M-C 25 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 25mm; iris range F2.8-16.
- Focal Length
- 25mm
- Iris Range
- F2.8-16
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 25mm |
| Iris Range | F2.8-16 |
| Distortion | 0.50% |
| Back Focal Length | 12.7mm |
| Lens Mount | C-mount |
| Field of View (D×H×V) | 32.7°×26.4°×19.9° |
| Object Size (D×H×V) | 94.4mm×75.4mm×56.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

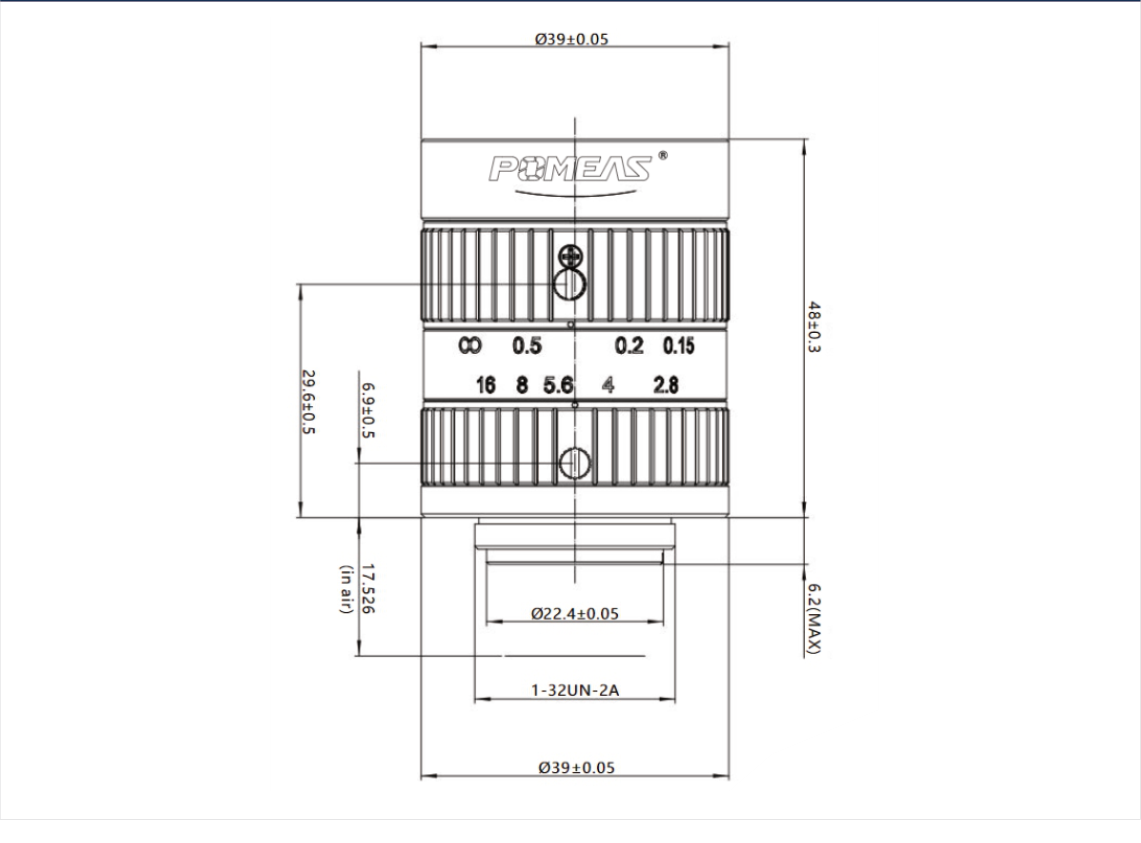

Technical drawings
