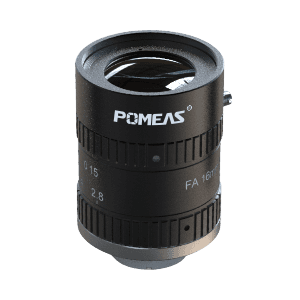

PMS-16VC20M-C — 16 mm FA lens
PMS-16VC20M-C 16 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 16mm; iris range F2.8- 16. Focus range 0.15m-∞.
- Focal Length
- 16mm
- Iris Range
- F2.8- 16
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 16mm |
| Iris Range | F2.8- 16 |
| Distortion | -1%(y=8.8mm) |
| Focus Range | 0.15m-∞ |
| Back Focal Length | 9.67mm |
| Lens Mount | C-mount |
| Field of View (D×H×V) | 56.3°× 47.7°×33.7° |
| Object Size (D×H×V) | 181mm×148.9mm×101.7mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

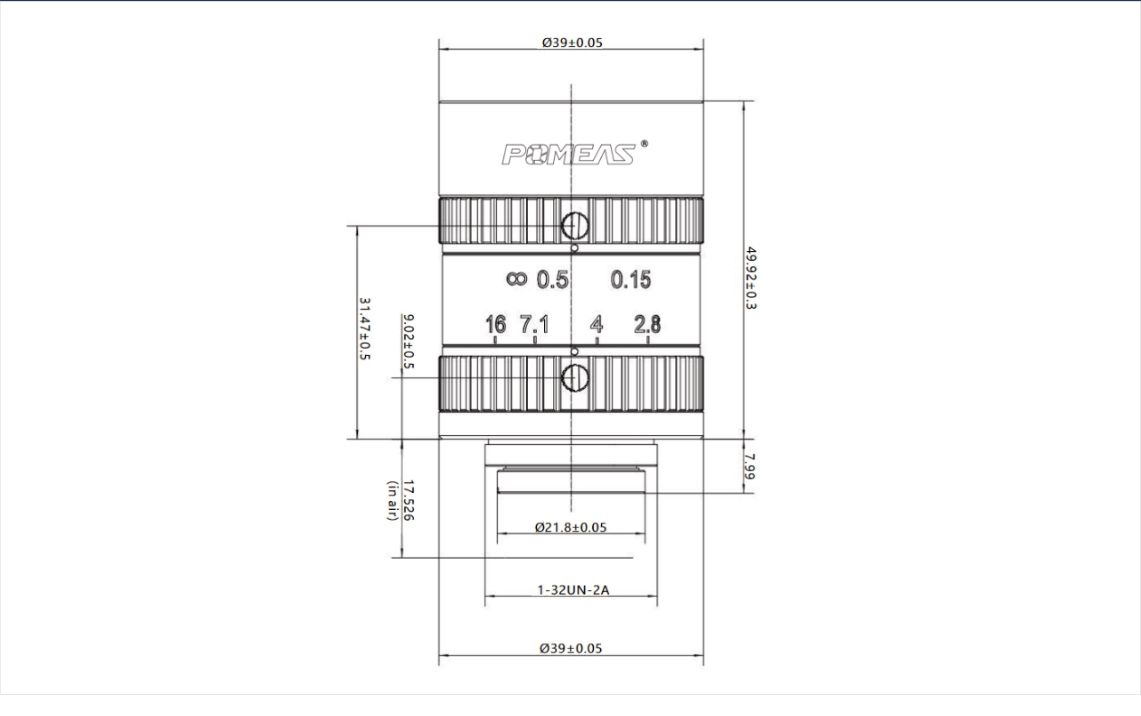

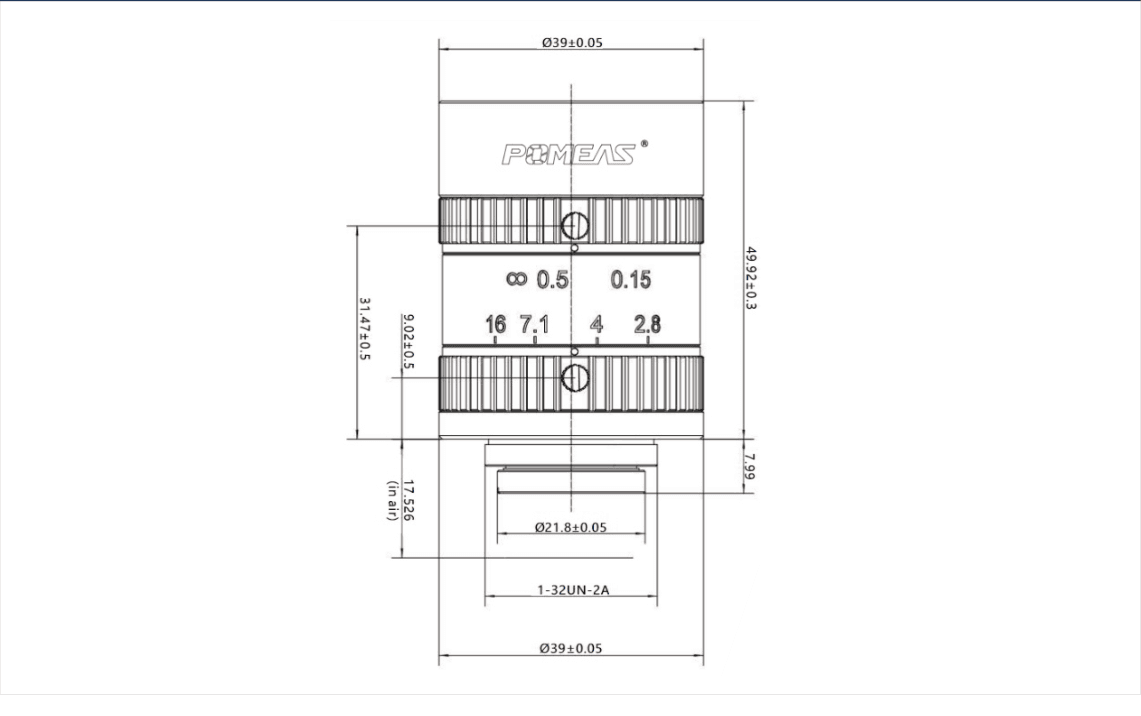

Technical drawings
