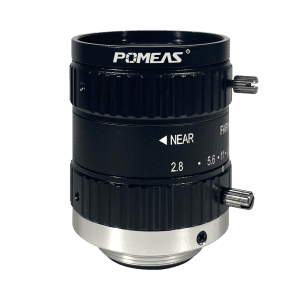

PMS-16VC20M — 16 mm FA lens
PMS-16VC20M 16 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 16mm; iris range F2.8.
- Focal Length
- 16mm
- Iris Range
- F2.8
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 16mm |
| Iris Range | F2.8 |
| Distortion | -0.73%y=8.8mm |
| Filter Thread | M34×0.5 |
| Back Focal Length | 11.2mm |
| Lens Mount | C-mount |
| Field of View (D×H×V) | 58.6°×46.8°×35.2° |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

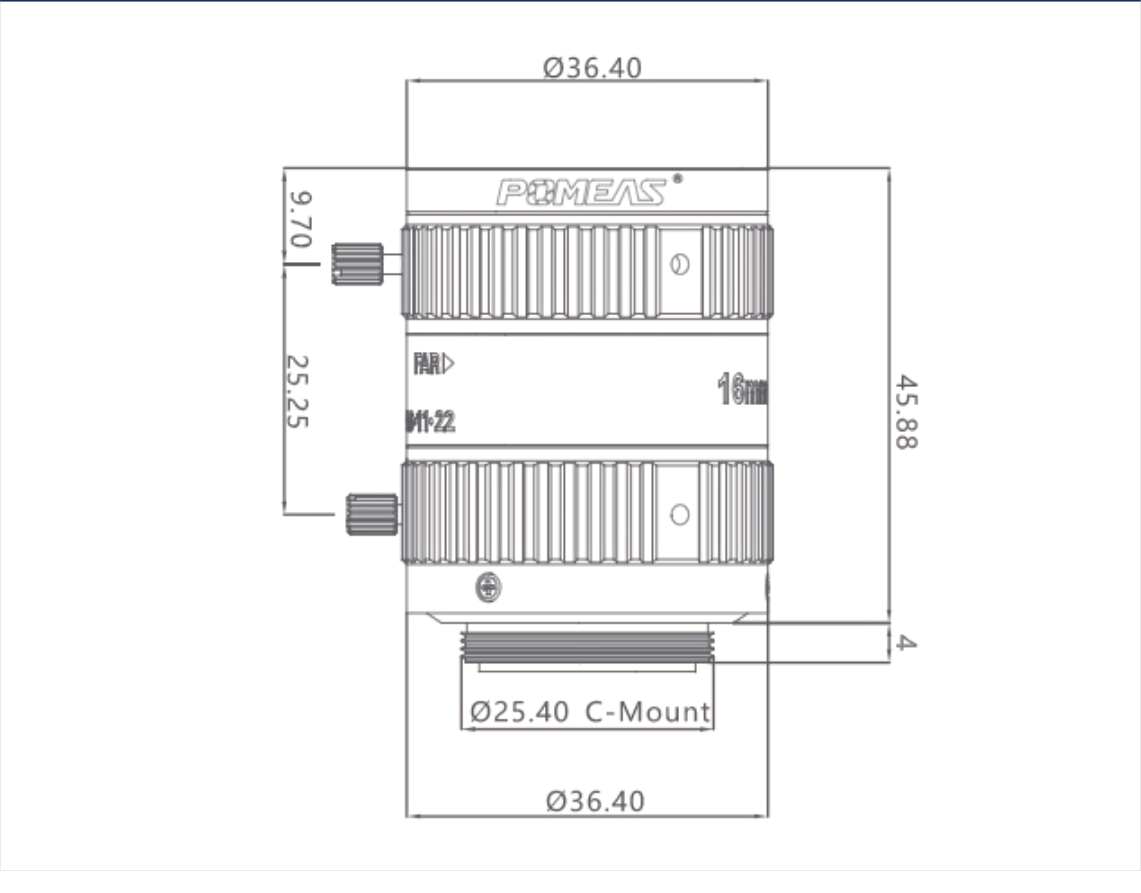

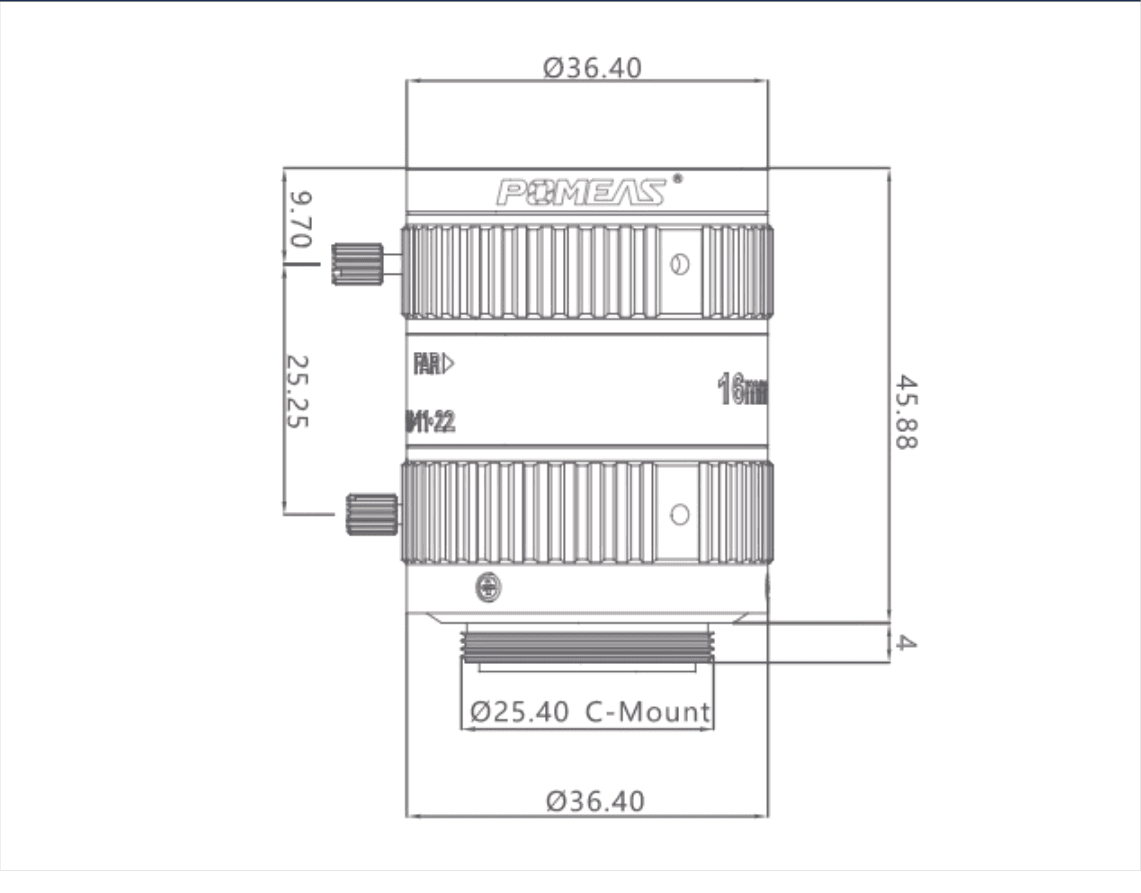

Technical drawings
