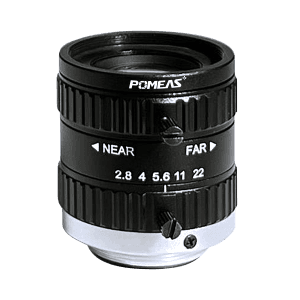

PMS-35VC20M — 35 mm FA lens
PMS-35VC20M 35 mm fa lens in the 20 MP · 1.1-inch FA lenses range. Focal length 35mm; iris range F2.8-16. Focus range 0.2m~∞.
- Focal Length
- 35mm
- Iris Range
- F2.8-16
- Sensor Format
- 1.1"
- Lens Mount
- C-mount
- Focus Range
- 0.2m~∞
Complete specifications
| Sensor Format | 1.1" |
|---|---|
| Focal Length | 35mm |
| Iris Range | F2.8-16 |
| Distortion | 0.30% |
| Back Focal Length | 10.52mm |
| Lens Mount | C-mount |
| Focus Range | 0.2m~∞ |
| FOV(DxH×V) | 23.33°×19.33°×13.32° |
| Object Size (D×H×V) | 90.8mm×74.81mm×51.18mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Resolution Rating | 20 MP |

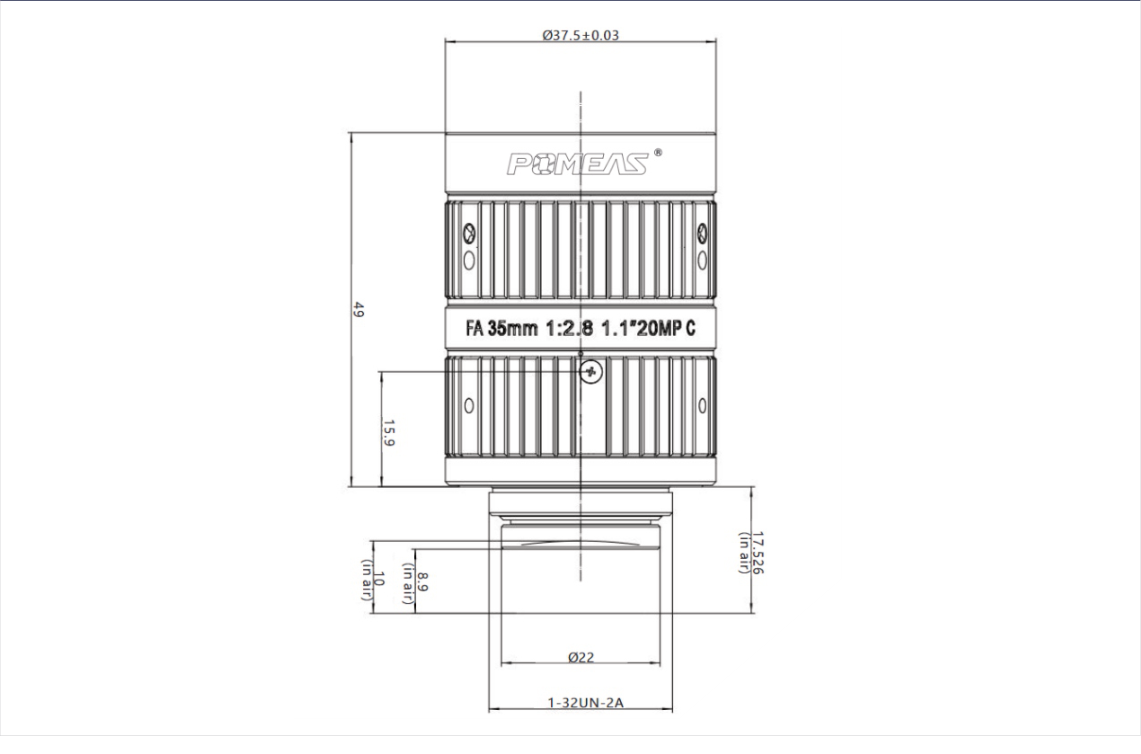

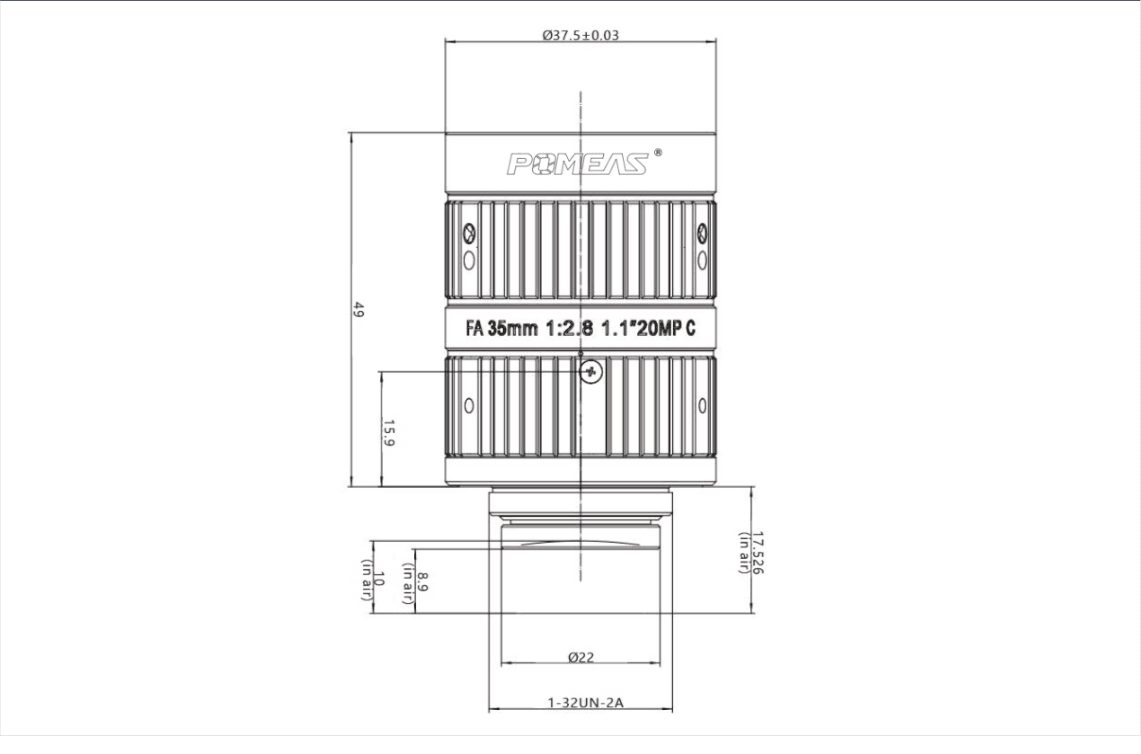

Technical drawings
