Laser Diode/TEC Controllers – Benchtop Kit

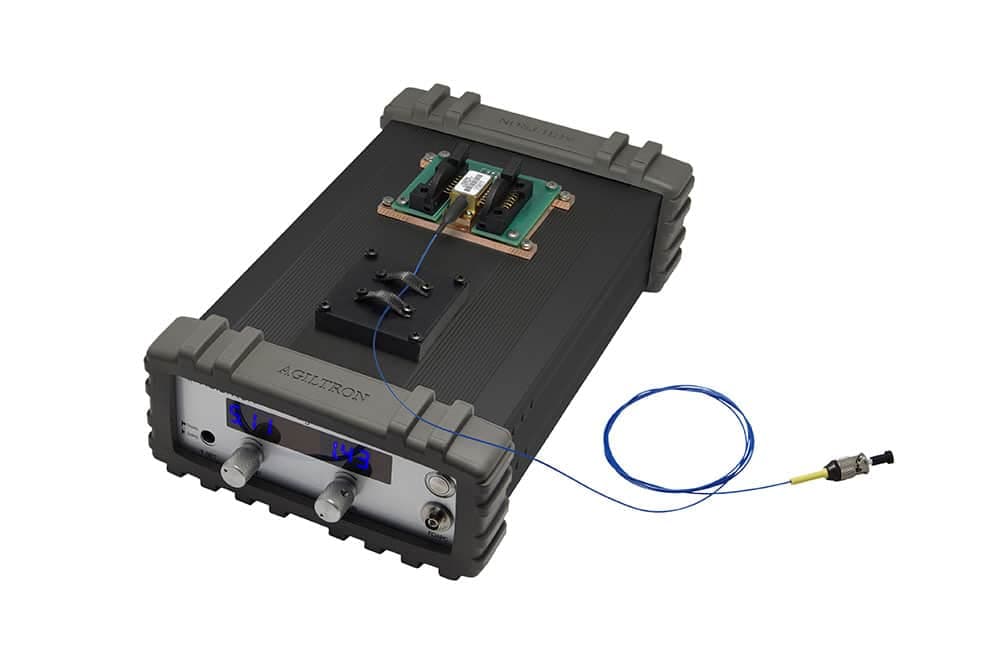

The LDCB series benchtop laser source is designed for easy coupling and precise control of a laser diode. Each system features a single FC/APC connector output and incorporates high-precision, low-noise auto-feedback in the drive electronics to ensure constant output power or a constant driving current. An integrated temperature control unit maintains optimal operating conditions. The system provides up to 1A driving current and up to 2A TEC cooling current. The user interface includes an intuitive LCD display for independent control of output power and temperature via two front rotating knobs. The LDCB also includes a universal power supply compatible with 100 to 240 VAC. Convenient rear-panel fuse access is provided. Additionally, reflection-induced laser emissions instability can be prevented with an optional built-in isolator.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Configuration: Standard · Laser Current: 1A · TEC Current: 2.2A · Type: Diode Inside · Modulation: Non · Package: Benchtop · Laser Mount: TOCAN A
Specifications
Laser Diode/TEC Controllers – Benchtop Kit
| System type | Turn-key benchtop laser diode & TEC controller system (LDCB series) |
| Supported laser packages | Butterfly, DIL, and TOCAN diode packages |
| Laser diode drive | Low-noise constant current / constant power drive up to 1 A |
| Temperature control | Precision closed-loop TEC controller up to 2 A |
| User interface | Front-panel digital displays and manual adjustment controls |
System integration
Integration and compatibility
Use these checks to connect Laser Diode/TEC Controllers – Benchtop Kit to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- User interface: Front-panel digital displays and manual adjustment controls
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Control interface
- Temperature control: Precision closed-loop TEC controller up to 2 A
- Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Technical FAQ
Integration questions for Laser Diode/TEC Controllers – Benchtop Kit
Which fiber and connector does the Laser Diode/TEC Controllers – Benchtop Kit use?
User interface: Front-panel digital displays and manual adjustment controls. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Does the Laser Diode/TEC Controllers – Benchtop Kit require a controller?
Temperature control: Precision closed-loop TEC controller up to 2 A. Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare Laser Diode/TEC Controllers – Benchtop Kit with the closest available models in the Laser Diodes & Sources family.
| Selection parameter | Laser Diode/TEC Controllers – Benchtop Kit (current) | High Power Single Mode 1550nm Laser – Pulse |
|---|---|---|
| Connector / control | Precision closed-loop TEC controller up to 2 A | Non, High Power FC/PC, Collimator 4/50mm |
