Laser Diodes & Sources

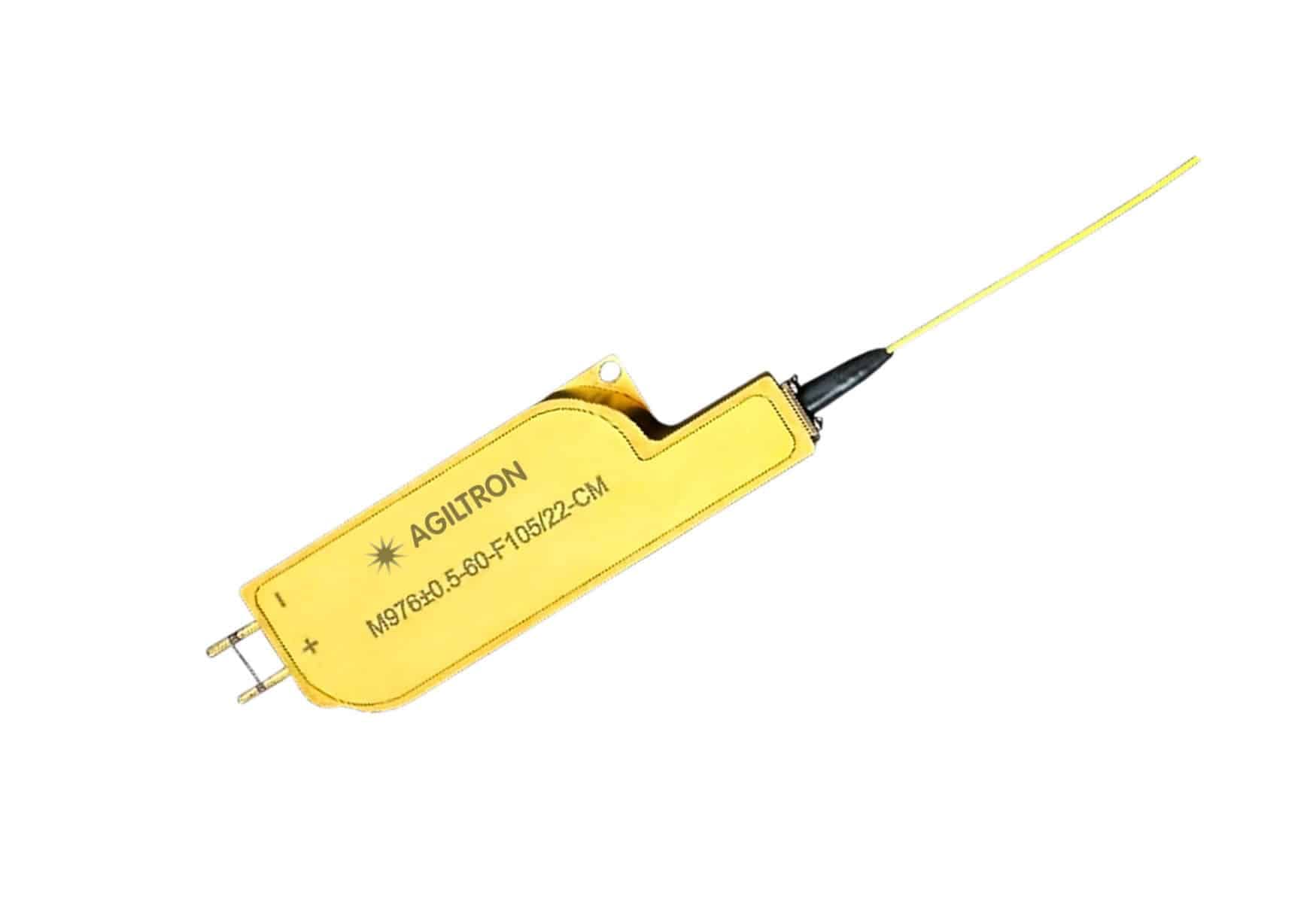

Fiber Coupled Laser Multimode High Power
The FCMH series diode lasers deliver up to 60 W of power through a 105 µm fiber, offering high brightness with simplified thermal management by distributing the diodes for reliable, consistent performance. A turn-key benchtop unit is available, fully integrated with power supply, fan-based cooling, power control, and built-in safety shut-off features for convenient and safe operation.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Wavelength: 976nm · Output Power: 3W · Fiber Type: 105/125 · Fiber Buffer: 0.9mm Tube · Fiber Length: 1m · Connector: Non
System integration
Integration and compatibility
Use these checks to connect Fiber Coupled Laser Multimode High Power to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Type: 105/125 · Fiber Buffer: 0.9mm Tube
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength: 976nm
- Check the Laser Diodes & Sources passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Technical FAQ
Integration questions for Fiber Coupled Laser Multimode High Power
Which fiber and connector does the Fiber Coupled Laser Multimode High Power use?
Fiber Type: 105/125 · Fiber Buffer: 0.9mm Tube. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the Fiber Coupled Laser Multimode High Power be included in an optical power budget?
Wavelength: 976nm. Check the Laser Diodes & Sources passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare Fiber Coupled Laser Multimode High Power with the closest available models in the Laser Diodes & Sources family.
| Selection parameter | Fiber Coupled Laser Multimode High Power (current) | Fiber Coupled High Power Multimode Laser 915nm, 940nm, 976nm (<10W) | Fiber Coupled Narrow Line Laser Source |
|---|---|---|---|
| Wavelength range | 976nm | 915nm, 940nm, 976nm | 1550nm |
| Fiber type | 105/125 | 105/125 µm, 50/125 μm, 200 µm | PM1550 |
| Connector / control | Non, SMA | Non, SMA | FC/APC, Special |
