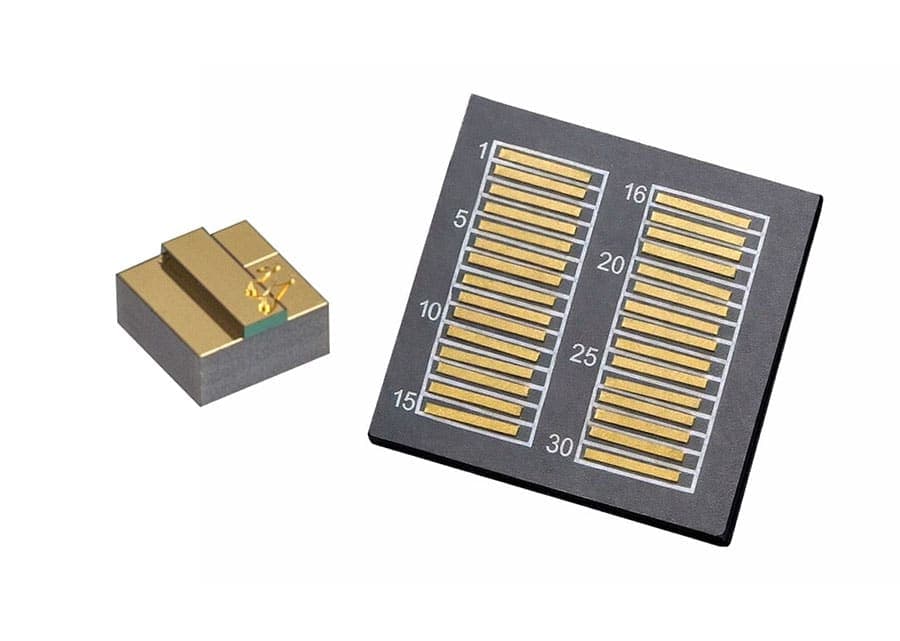

High Power Narrow Line DFB Laser Diode Chips

We provide a wide range of premium laser diode chips for all application scenarios. These laser diode chips are produced using state-of-the-art quantum-well epitaxial layer growth and a reliable ridge waveguide structure. We offer these lasers in many configurations, with various back-face and front-face reflection options. Custom designs and production are also available. The chips are typically offered as metalized bar chips or on submount, with full testing and burn-in processes. Additionally, we provide packaging and fiber pigtail services.

Configure & add to enquiry Datasheet (PDF)Back to Laser Diodes & Sources

High Power Narrow Line DFB Laser Diode Chips

Configuration options

Build & quote

Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.

WavelengthPowerLinewidthPackage

Part number: LCDF-15500301B

Wavelength: 1550nm · Power: 40mW · Linewidth: 0.05nm · Package: Bare

Downloads

Datasheets & documents

DFB Laser Diode Chips

System integration

Integration and compatibility

Use these checks to connect High Power Narrow Line DFB Laser Diode Chips to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.

Wavelength and loss budget: Wavelength: 1550nm; Check the Laser Diodes & Sources passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Technical FAQ

Integration questions for High Power Narrow Line DFB Laser Diode Chips

How should the High Power Narrow Line DFB Laser Diode Chips be included in an optical power budget?

Wavelength: 1550nm. Check the Laser Diodes & Sources passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
